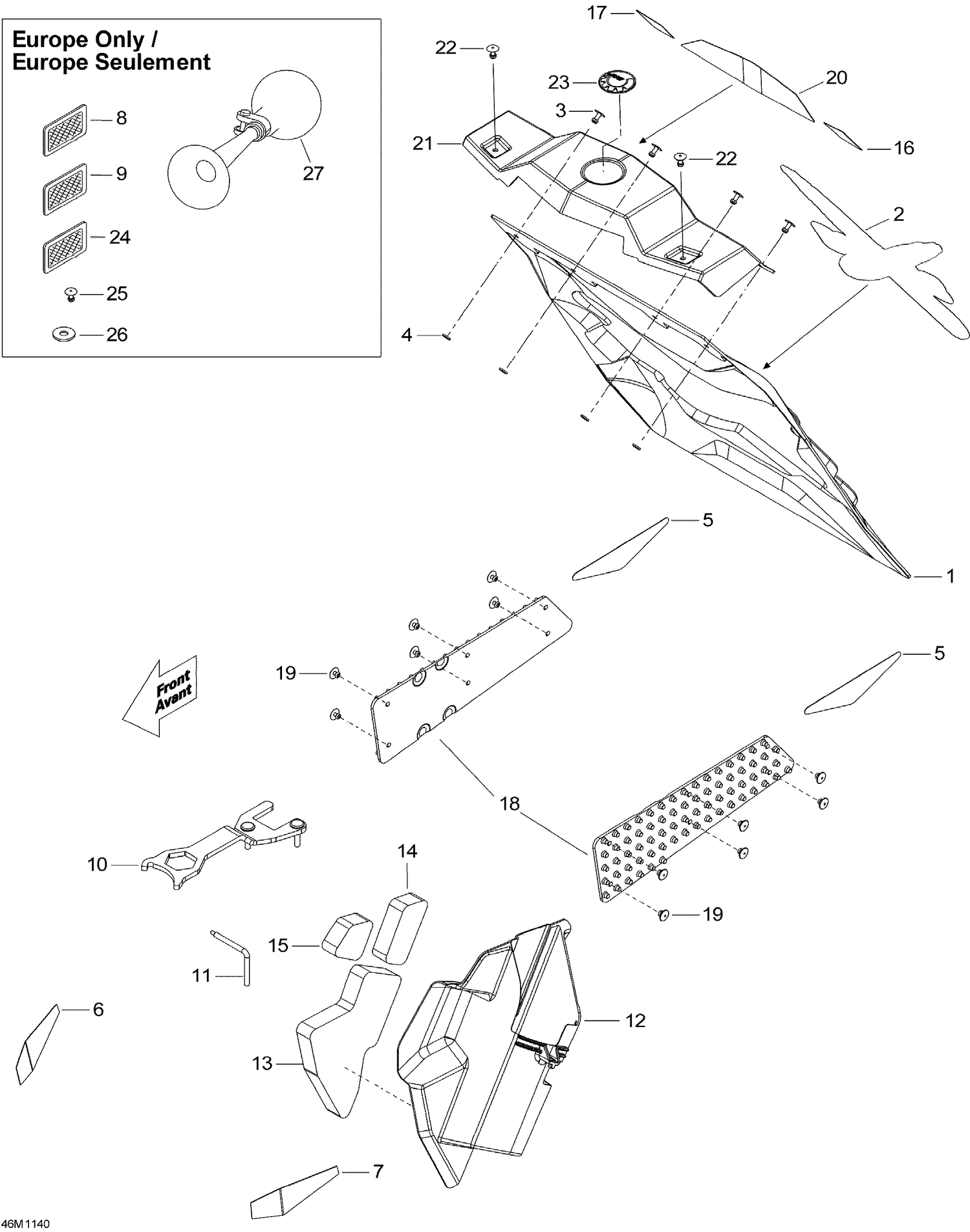

09- Utilities
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001441 | Snow Flap This part replaces 520000669. |
| 2 | 516003647 | Decal X |
| 3 | 293150104 | Pop Rivet 3/16" |
| 4 | 517225900 | Flat Washer |
| 5 | 520000237 | REAR REFLECTOR, RED - Call your local BRP dealership |
| 6 | 520000718 | Yellow, RH Front Reflector |
| 7 | 520000719 | Yellow, LH Front Reflector |
| 10 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 11 | 417127044 | Belt Installation Tool |
| 12 | 520000842 | Tool Kit Rack |
| 13 | 520001059 | Foam |
| 14 | 520001061 | Foam |
| 15 | 520001062 | Foam |
| 16 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership This part replaces 516004550. |
| 17 | 516005058 | Warning Decal, Safety This part replaces 516004601. |
| 18 | 860200164 | Grip Plate Kit |
| 19 | 293150103 | Pop Rivet 3/16" |
| 20 | 520000764 | REFLECTOR - Call your local BRP dealership |
| 21 | 520000750 | COVER - Call your local BRP dealership |
| 22 | 293150104 | Pop Rivet 3/16" |
| 23 | 219903305 | BRP Logo 48 mm |
