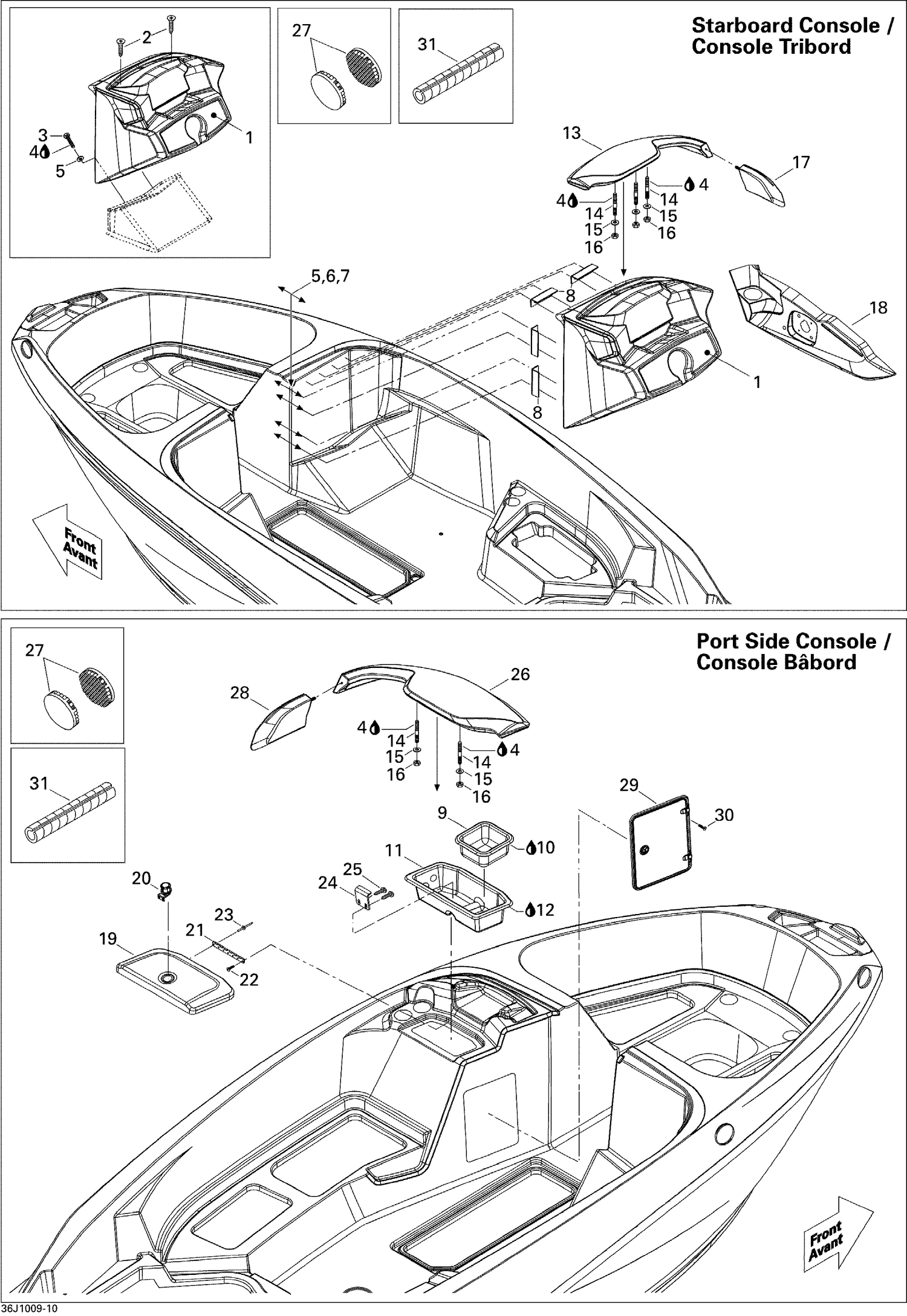

| Ref | Part Number | Description |
|---|
| 1 |
291002870 |
Console Ass'y, Starboard |
| 2 |
204100056 |
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership |
| 3 |
207163060 |
Hex. Screw M6 X 30 |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
234062600 |
Flat Washer M6, Stainless |
| 6 |
207164560 |
Hex. Screw M6 X 45 |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
Not |
Available As Spare Part - Angled Bracket |
| 9 |
291002949 |
Upper Glove Box |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
291003047 |
DRY STORAGE BOX - Call your local BRP dealership |
| 12 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 13 |
291002867 |
CONSOLE BROW, STARBOARD - Call your local BRP dealership |
| 14 |
204100033 |
STUD 1/4?-20 X 2? - Call your local BRP dealership |
| 15 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 16 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 17 |
291003035 |
CONSOLE BROW PAD, STARBOARD - Call your local BRP dealership |
| 18 |
291002868 |
Shifter Panel Fascia, Starboard |
| 19 |
291003046 |
LOWER GLOVE BOX DOOR - Call your local BRP dealership |
| 20 |
204073210 |
LATCH - Call your local BRP dealership |
| 21 |
291003006 |
HINGE - Call your local BRP dealership |
| 22 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 23 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 24 |
291003012 |
KEEPER - Call your local BRP dealership |
| 25 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 26 |
291002878 |
CONSOLE BROW, PORT SIDE - Call your local BRP dealership |
| 27 |
262000084 |
DUAL LOCK, 1/2 X 5 1/2 - Call your local BRP dealership |
| 28 |
291003048 |
Console Brow Pad, Port Side |
| 29 |
204073802 |
ACCESS DOOR - Call your local BRP dealership This part replaces 291003049. |
| 30 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
