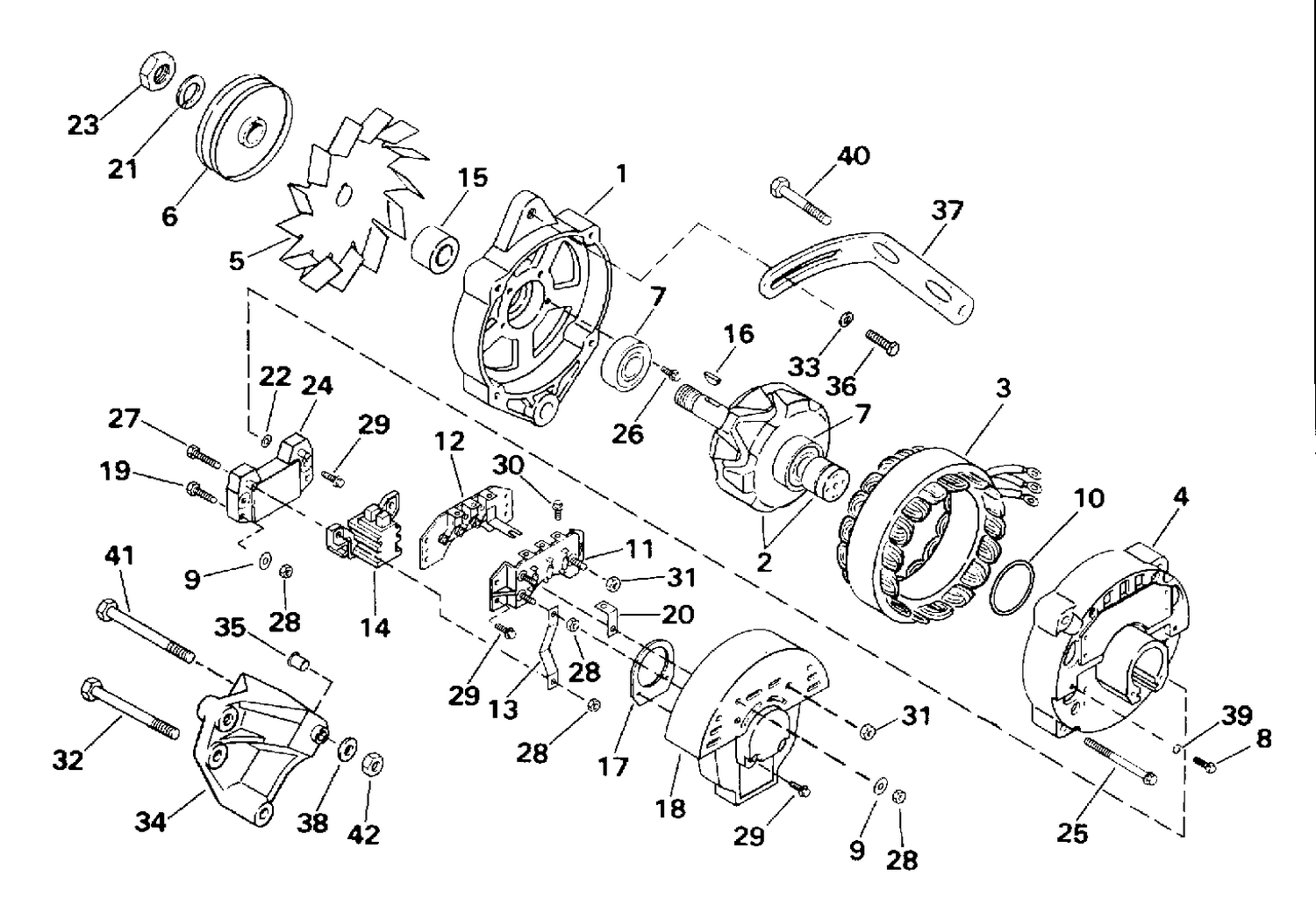

| Ref | Part Number | Description |
|---|
| 1 |
3852647 |
HOUSING, Front |
| 2 |
3854226 |
ROTOR ASSY. |
| 3 |
3854225 |
STATOR ASSY. |
| 4 |
3852646 |
HOUSING, Rear |
| 5 |
3853756 |
FAN |
| 6 |
3853755 |
PULLEY |
| 7 |
3852643 |
BEARING, Front & rear |
| 8 |
3852736 |
SCREW, Alternator ground |
| 9 |
3852626 |
WASHER |
| 10 |
3852642 |
RETAINER, Rear bearing |
| 11 |
3852641 |
DIODE FIELD |
| 12 |
3853836 |
DIODE BRIDGE |
| 13 |
3852640 |
STRAP, B+ |
| 14 |
3853835 |
BRUSH ASSEMBLY |
| 15 |
3852639 |
SPACER, Fan |
| 16 |
3852638 |
KEY, Woodruff |
| 17 |
3852637 |
FELT GASKET |
| 18 |
3853834 |
COVER ASSEMBLY |
| 19 |
3852737 |
SCREW, Terminal |
| 20 |
3852635 |
STRAP, AC Tap |
| 21 |
3852625 |
LOCK WASHER, Pulley |
| 22 |
3852732 |
WASHER, Insulator |
| 23 |
3852630 |
NUT, Pulley |
| 24 |
3853833 |
REGULATOR, Voltage |
| 25 |
3852634 |
BOLT, Through |
| 26 |
3852734 |
SCREW, Front housing |
| 27 |
3852629 |
SCREW, Regulator |
| 28 |
3852632 |
LOCKNUT |
| 29 |
3852735 |
SCREW, Diode field |
| 30 |
3852628 |
SCREW, Diode field |
| 31 |
3852633 |
NUT |
| 32 |
3853395 |
SCREW, Bracket |
| 34 |
0987775 |
BRACKET, Alternator This part replaces 3854183. |
| 35 |
3852740 |
BUSHING, Alternator |
| 36 |
3853399 |
SCREW, Brace to alternator |
| 37 |
3852703 |
BRACE, Alternator |
| 39 |
3852520 |
LOCK WASHER, Ground |
| 40 |
3853557 |
SCREW, Brace to alterntr bracket |
| 41 |
3853367 |
SCREW Bracket |
| 3854809 |
3857561 |
Alternator This part replaces 3854809. |
