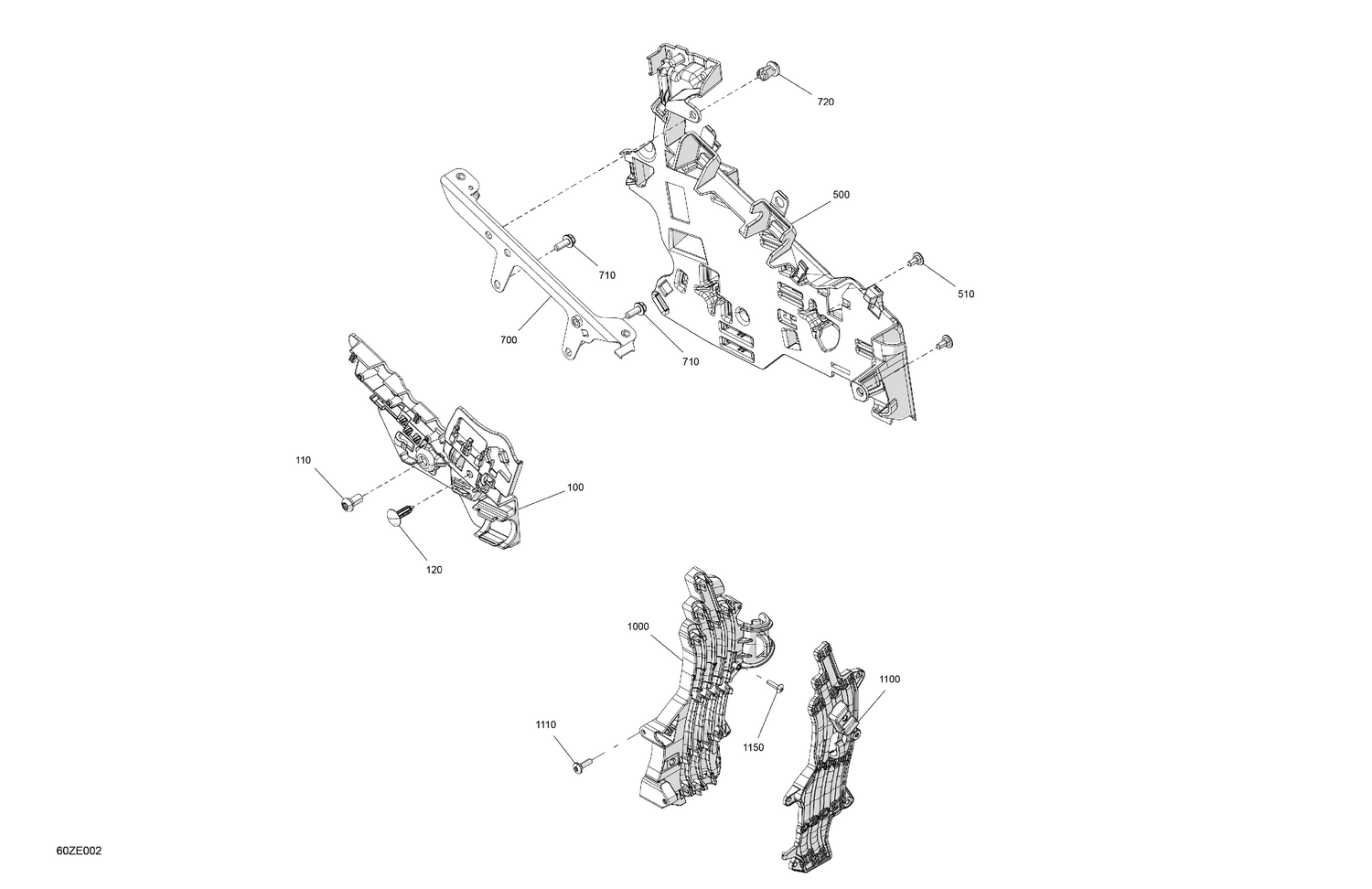

09- Miscellaneous - Utilities
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705017704 | LH Hose Support |
| 110 | 250013011 | Shoulder Screw M8 X 16 |
| 120 | 293730006 | Black, Dart |
| 500 | 705017705 | RH Hose Support |
| 510 | 250001308 | Torx Screw M5 X 12 |
| 700 | 712000029 | Battery Charger Support |
| 710 | 250001062 | Hex. Flange Screw M6 X 16 |
| 720 | 293150230 | Tuflok Plastic Rivet |
| 1000 | 709201575 | Cable Support |
| 1100 | 709201576 | Cover |
| 1110 | 250000720 | Torx Screw K50 X 16 |
