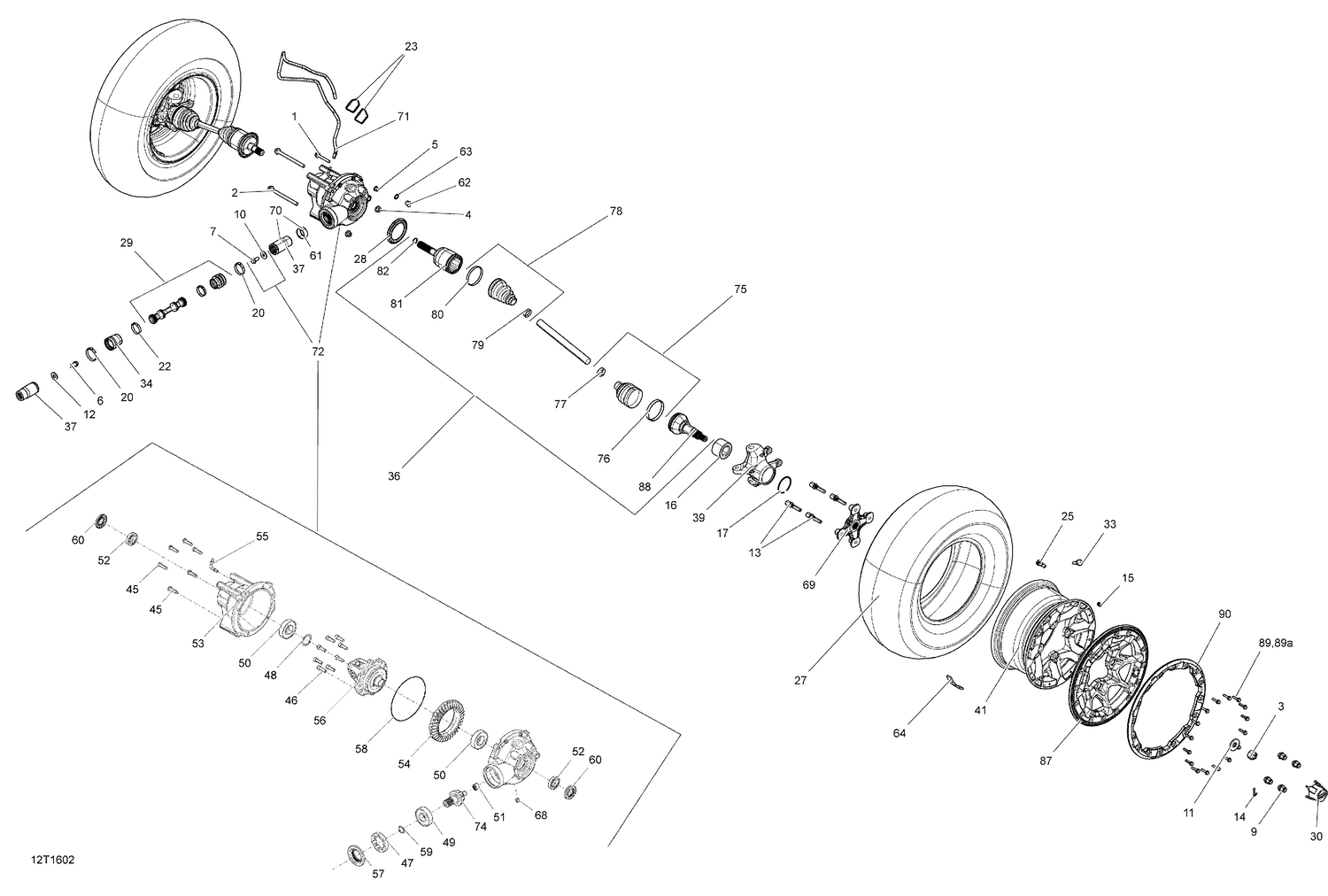

07- Drive System, Front - All Models
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207685544 | Hex. Flange Screw M8 X 55 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 |
| 3 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 250001042 | Hex Flange Screw M12 X 20 This part replaces 250000540. |
| 7 | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 10 | 250200014 | Flat Washer M10 |
| 11 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 12 | 250200102 | Flat Washer M12 |
| 14 | 250400071 | Cotter Pin |
| 15 | 293000110 | Valve Cap |
| 16 | 293350150 | Ball Bearing This part replaces 293350040. |
| 17 | 293370019 | Circlip |
| 18 | 293550010 | Synthetic Grease, 400 G |
| 19 | 293600043 | SYNTHETIC GEAR OIL, 75W90, 12 X 32 OZ - Call your local BRP dealership |
| 20 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 22 | 293650199 | Oetiker Gear Clamp |
| 23 | 414115200 | Tie-Rap 180 mm |
| 25 | 705400193 | Rim Valve With Cap |
| 29 | 705400913 | Propeller Shaft |
| 33 | 705400193 | Rim Valve With Cap |
| 34 | 705401093 | Rubber Boot |
| 37 | 703500678 | Front Bushing Shaft Kit |
| 39 | 705403307 | LH Knuckle This part replaces 705401290. |
| 39 | 705403308 | RH Knuckle This part replaces 705401291. |
| 45 | 705401601 | Screw |
| 46 | 705401602 | Screw |
| 47 | 705401603 | Nut |
| 48 | 705401604 | Shim |
| 49 | 705401605 | Ball Bearing |
| 50 | 705401606 | Ball Bearing |
| 51 | 705402848 | Ball Bearing This part replaces 705401607. |
| 52 | 705401608 | Ball Bearing |
| 53 | 705401610 | Front Cover |
| 54 | 705401612 | Gear 36 Teeth |
| 55 | 705401613 | Vent Valve |
| 56a | 705401769 | Shim |
| 56b | 705401770 | Shim |
| 57 | 705401615 | Oil Seal |
| 58 | 705401616 | Seal |
| 59 | 705401617 | O'Ring |
| 60 | 705401618 | Gasket |
| 61 | 705400036 | Wear Ring |
| 62 | 705500504 | Fill Level Plug |
| 63 | 705500506 | Copper Washer |
| 67 | 705401792 | Front Pinion Cover |
| 68 | 705501885 | Drain Plug |
| 69 | 705501900 | Wheel Hub |
| 70 | 703500678 | Front Bushing Shaft Kit |
| 71 | 219704410 | Polyurethane Hose 10000Mm Long |
| 74 | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 82 | 705401349 | Circlip Joint |
