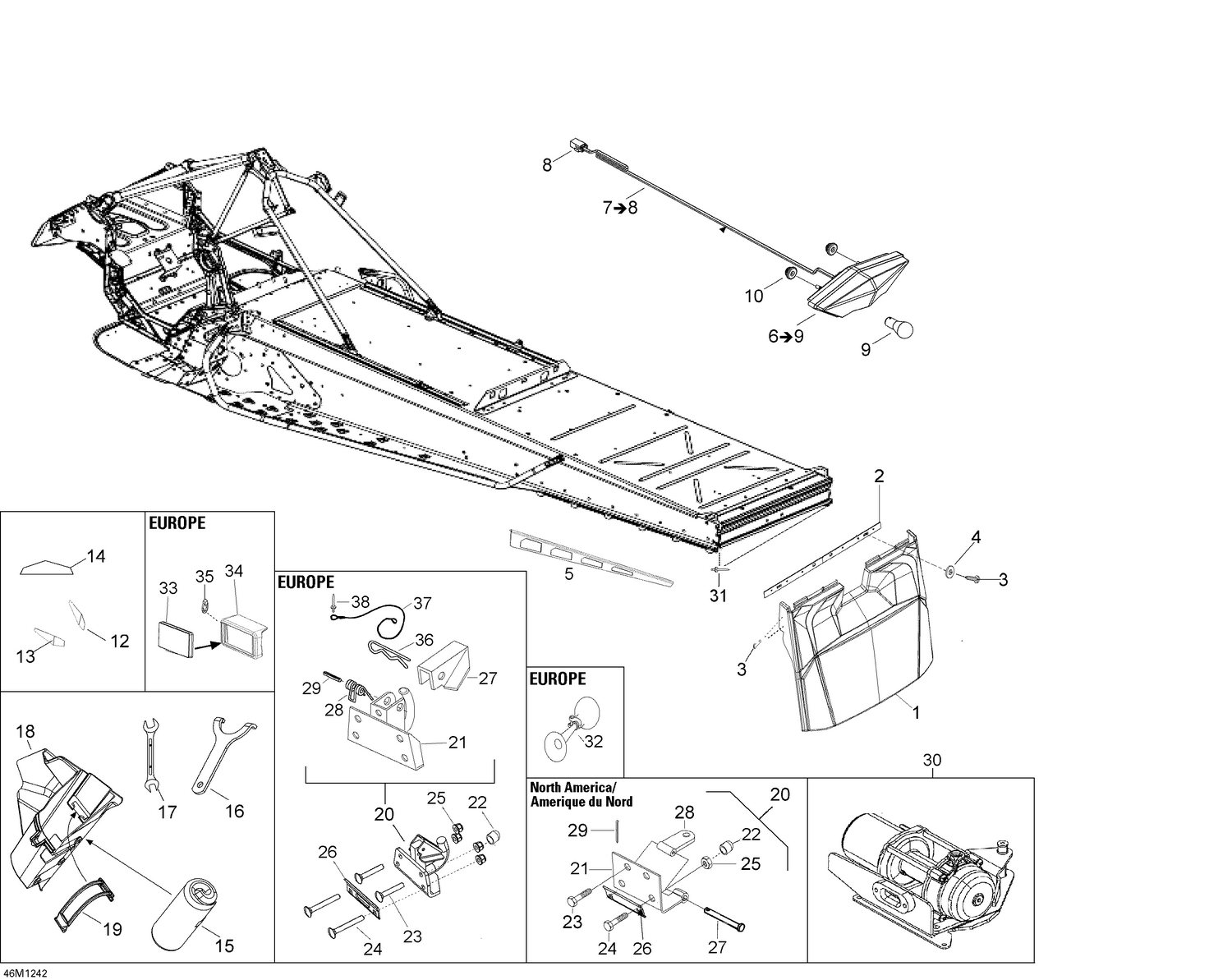

09- Utilities
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 520000587 | Rear Light Ass'y |
| 7 | 520000849 | Rear Wiring Harness |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 520000758 | Bulb |
| 10 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 12 | 520001600 | Yellow, RH Reflector This part replaces 520000843. |
| 13 | 520001601 | Yellow, LH Reflector This part replaces 520000844. |
| 15 | 529000066 | Tool Kit This part replaces 529000055. |
| 16 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 17 | Not | Available As Spare Part - Wrench |
| 18 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 19 | 520000528 | Latch |
| 22 | 28056 | Cover This part replaces M28056. |
| 23 | 207782544 | Carriage Bolt, M8 X 25 |
| 24 | 207784044 | Bolt Carriage M8 X 40 |
| 25 | 233281414 | Hex. Flange Elastic Nut M8 |
| 26 | 520000727 | Plate |
| 30 | 619400069 | WINCH KIT - Call your local BRP dealership |
| 31 | 293150163 | Rivet Hucklok |
