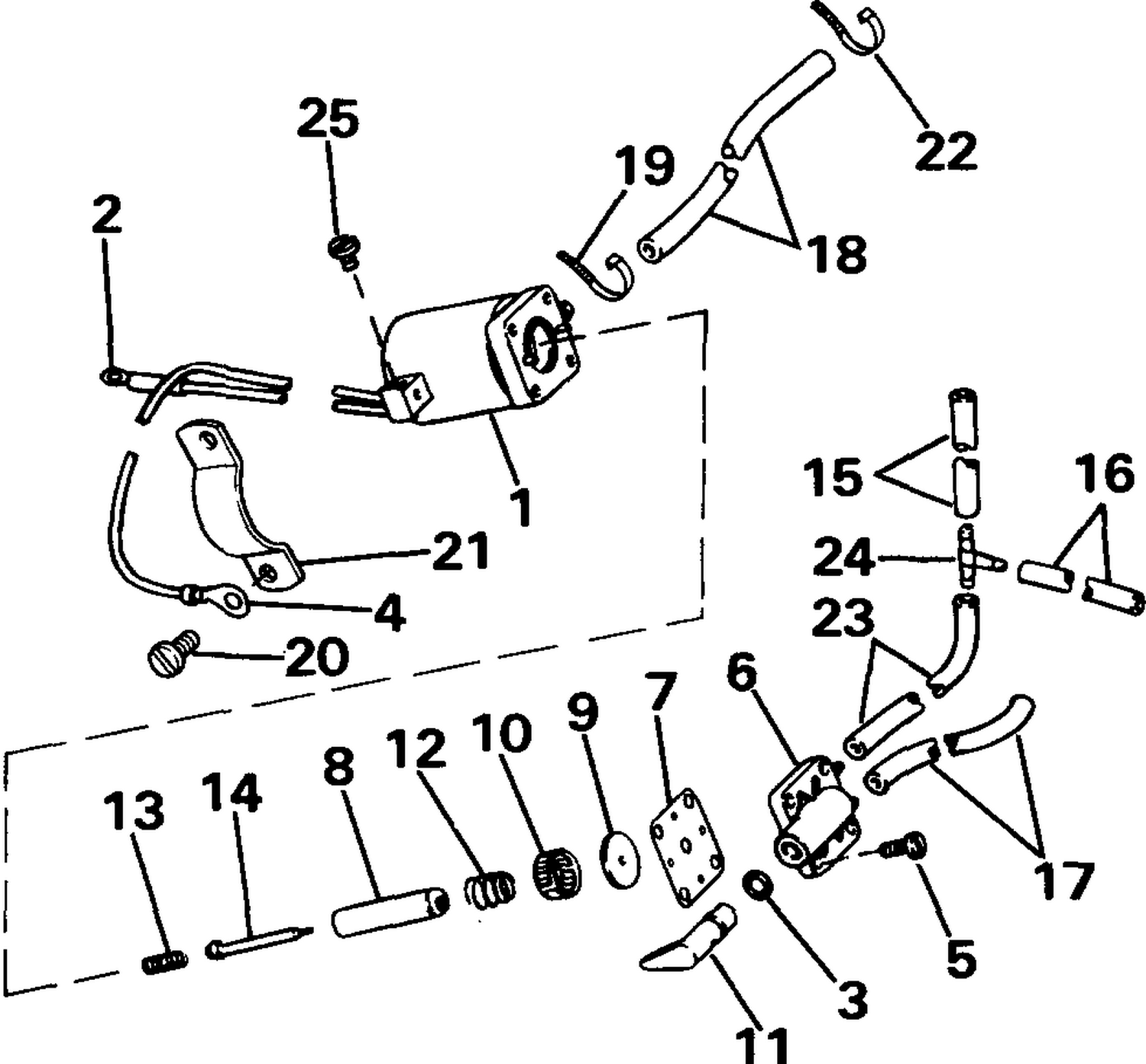

| Ref | Part Number | Description |
|---|
| 1 |
5007356 |
Kit Ay This part replaces 0582865. |
| 6 |
0511807 |
COVER&GASKET AY |
| 7 |
0333448 |
GASKET This part replaces 0511808. |
| 9 |
0333448 |
GASKET This part replaces 0511810. |
| 15 |
HOSE, |
Tee to middle carb. 127mm (5") |
| 16 |
HOSE, |
Tee to lower carb. 25mm (1") |
| 17 |
HOSE, |
Primer to upper carb. 305mm (12") |
| 18 |
HOSE, |
Tee to primer 114mm (4-1/2") |
| 20 |
0319292 |
SCREW, Clamp |
| 21 |
0330153 |
CLAMP, Water valve |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
HOSE, |
Primer to tee 57mm (1-1/4") |
| 24 |
0325569 |
T, amorçage |
