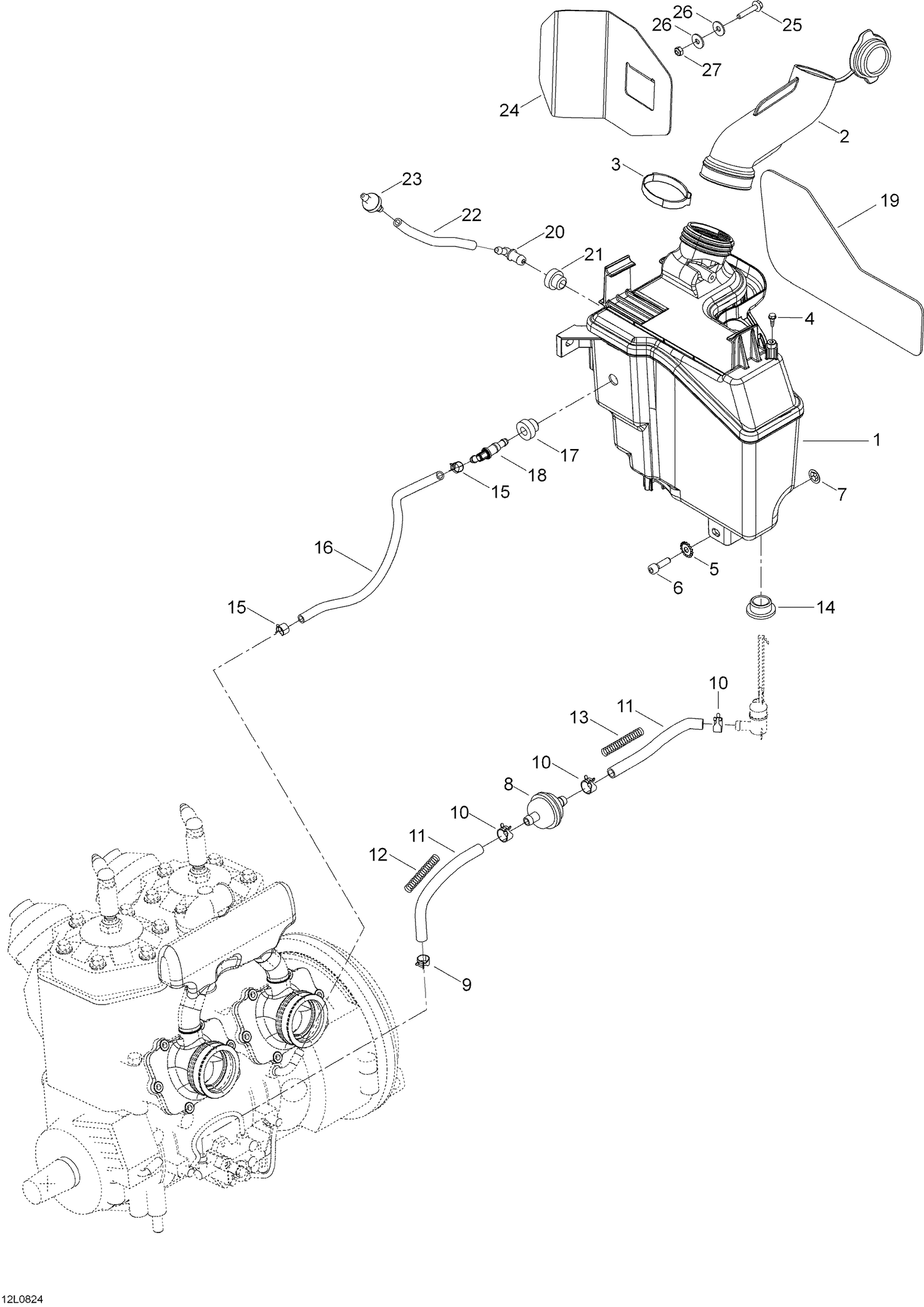

| Ref | Part Number | Description |
|---|
| 1 |
519000111 |
OIL TANK - Call your local BRP dealership |
| 2 |
Not |
Available As Spare Part - Filling neck |
| 3 |
27001 |
Clamp |
| 4 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 5 |
20017 |
Serrated lock washer 6mm |
| 6 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
732610072 |
Push Nut |
| 8 |
414536500 |
Oil filter |
| 9 |
414420700 |
Universal Spring Clamp |
| 10 |
414415200 |
Clamp |
| 11 |
39046 |
Hose |
| 12 |
519000064 |
SPRING - Call your local BRP dealership |
| 13 |
519000065 |
SPRING - Call your local BRP dealership |
| 14 |
570023000 |
Insulated ring |
| 15 |
414554800 |
Clamp |
| 16 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 17 |
709200285 |
Grommet This part replaces 570135100. |
| 18 |
414580700 |
Male Connector |
| 19 |
519000054 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 20 |
414580700 |
Male Connector |
| 21 |
513032908 |
Grommet |
| 22 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 23 |
275500398 |
Check valve |
| 24 |
605352865 |
Heat shield |
| 25 |
40029 |
Hex. screw M6 x 16 |
| 26 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
