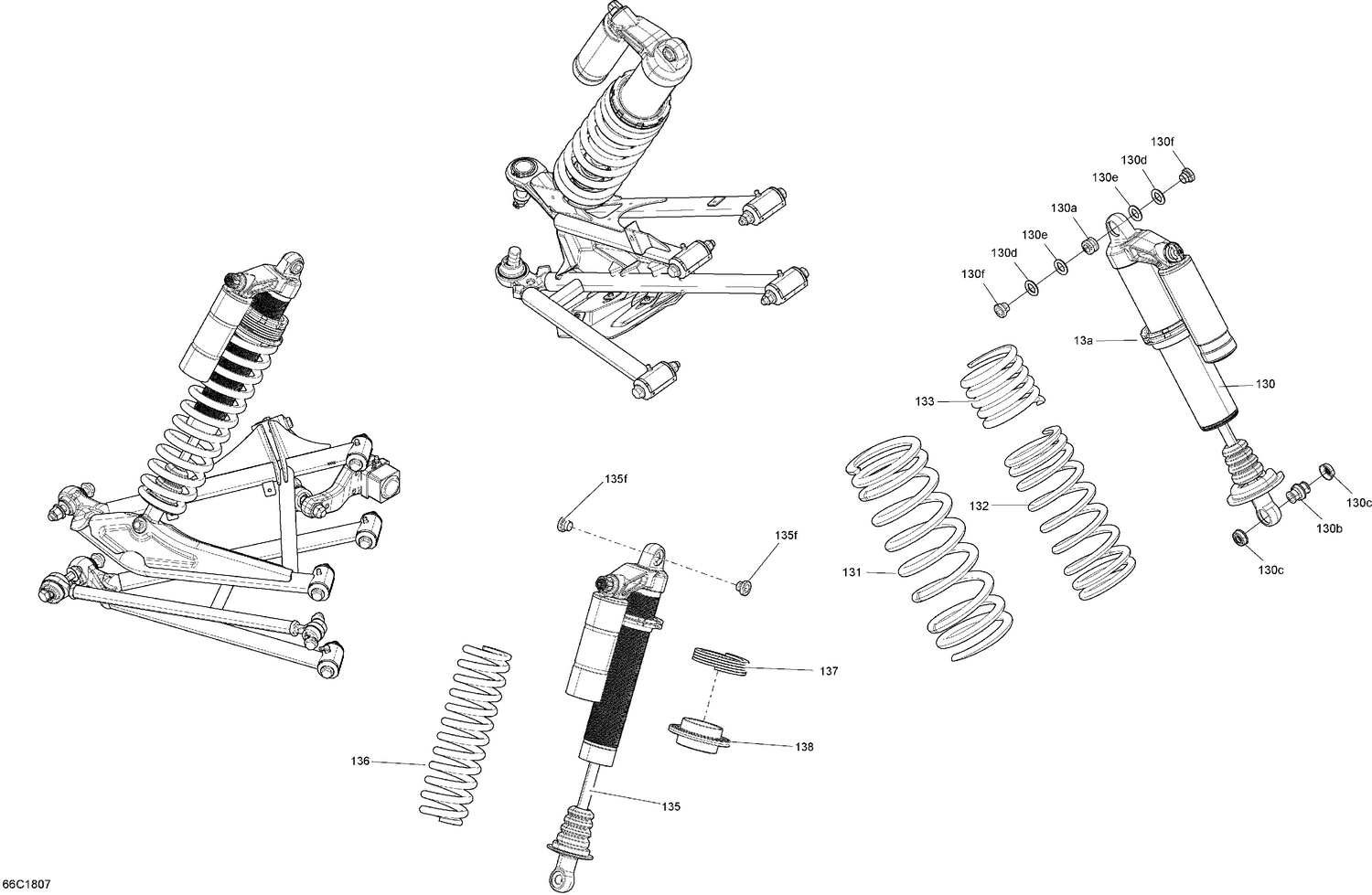

07- Shocks Maverick MAX - Package XMR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 715900329 | Spherical Bearing |
| 130b | 715900330 | Spherical Bearing |
| 130c | 715900331 | Protector |
| 130d | 715900268 | O-Ring Bushing |
| 130e | 715900252 | Retaining Ring |
| 130f | 715900267 | Internal Bushing |
| 132 | 706202975 | YELLOW SUN. FRONT SPRING - Call your local BRP dealership |
| 133 | 706002772 | YELLOW SUN. SPRING - Call your local BRP dealership |
| 134 | 706001710 | Spring Spacer |
| 135f | 715900267 | Internal Bushing |
| 136 | 706002771 | Yellow Sun. Spring |
| 137 | 706002772 | YELLOW SUN. SPRING - Call your local BRP dealership |
