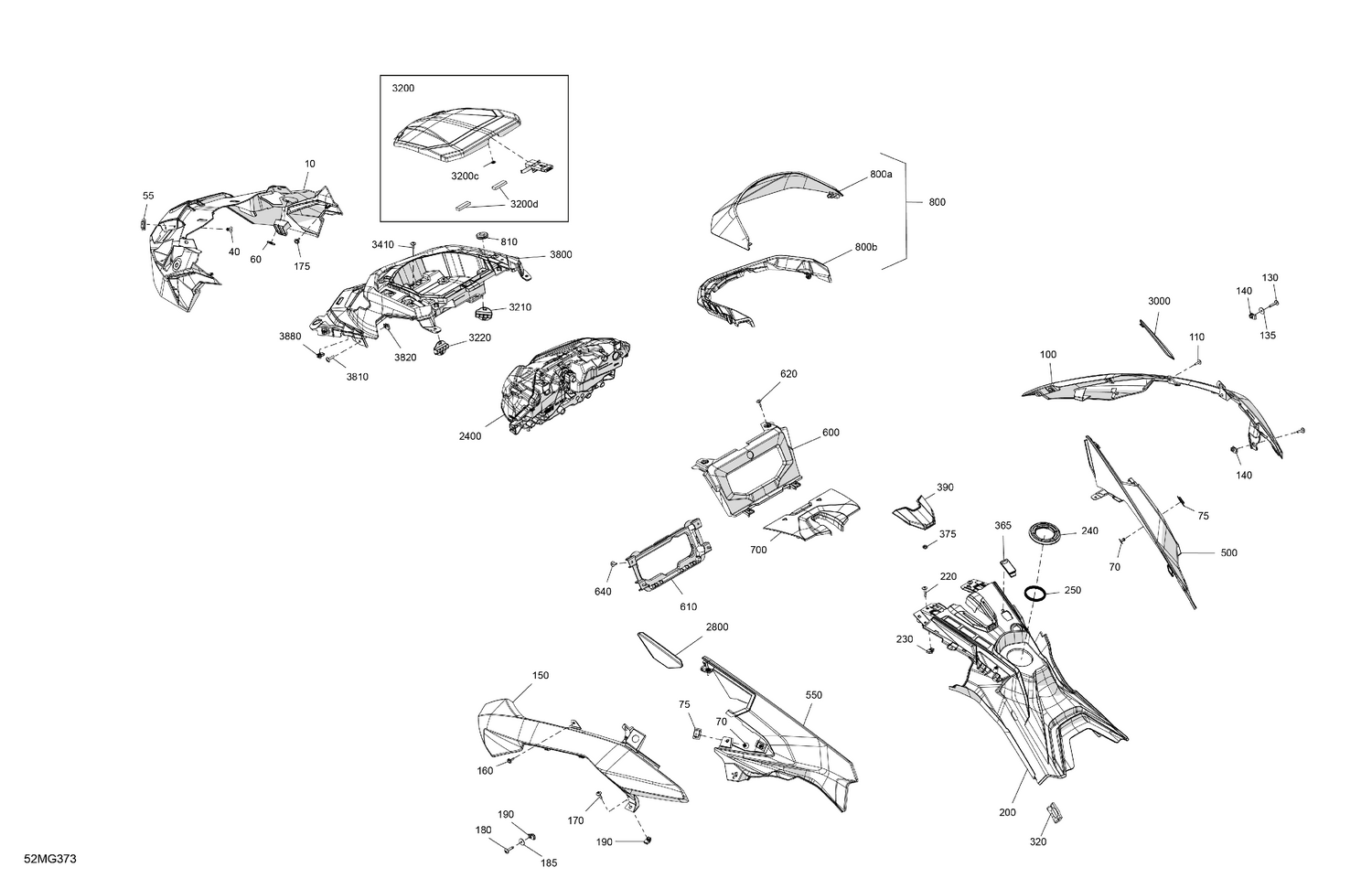

07- Body - Hood
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517307755 | Center Hood |
| 40 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 70 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 75 | 517305109 | Rivet Plate |
| 100 | 517307746 | Deep Black, RH Front Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517307747 | Deep Black, LH Front Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 175 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517309672 | Rear Console |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309824 | Round Slotted Nut |
| 250 | 517309450 | Gasket |
| 320 | 517309575 | Weather Strip |
| 365 | 517308261 | Cap |
| 375 | 250100163 | Pressure Nut |
| 390 | 517310113 | Connecting Plate |
| 500 | 517309944 | RH Hood |
| 550 | 517310075 | LH Hood |
| 600 | 517307750 | Gauge Support |
| 610 | 515179034 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 640 | 250000725 | Screw M4 X 16 |
| 700 | 517308111 | Access Cover |
| 800a | 517308240 | Ultra Low Windshield |
| 800b | 517307973 | Windshield Support |
| 810 | 517303756 | Grommet |
| 2400 | 517309061 | Headlight Ass'y |
| 2800 | 517309208 | RH Rear Cap |
| 3000 | 517309209 | LH Rear Cap |
| 3200c | 732610072 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3210 | 517308260 | Box Cap |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000889 | Screw M4 X 16 |
| 3800 | 517308231 | Upper Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
