| Ref | Part Number | Description |
|---|
| 1 |
0438796 |

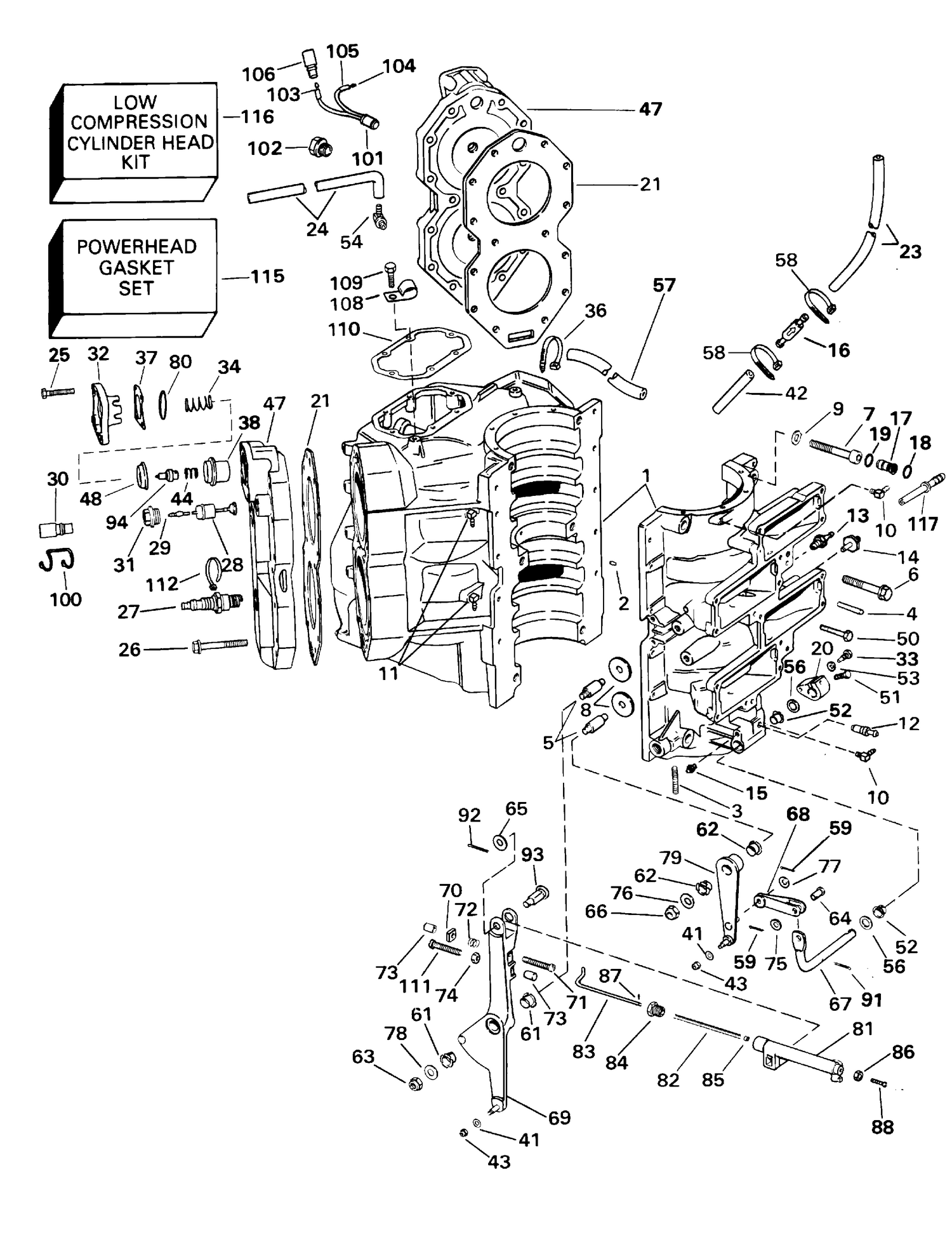

CYLINDER & CRANKCASE ASSY. |
| 16 |
0434927 |
SOUPAPE DE RETENUE |
| 20 |
0335191 |
LEVER, Shift rod |
| 21 |
0340115 |
GASKET, Cylinder head |
| 25 |
0306049 |
SCREW |
| 26 |
0322323 |
SCREW |
| 27 |
0437929 |
BOUGIE, Champion, QL78YC |
| 28 |
0585183 |
TEMPERATURE SWITCH, Stbd. |
| 32 |
0343141 |
COVER, Thermostat |
| 33 |
0327590 |
PIN, Shift lever |
| 34 |
0343020 |
SPRING |
| 37 |
0329830 |
GASKET, Cover |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 47 |
0339154 |
CYLINDER HEAD |
| 48 |
0435957 |
DIAPHRAGM |
| 50 |
0554306 |
SCREW, Cyl. to crankcase |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 64 |
0340134 |
PIN, Shift lever |
| 65 |
0330995 |
RONDELLE, levier |
| 67 |
0329083 |
LEVER, Shift |
| 68 |
0340133 |
LINK, Shift lever |
| 69 |
0432649 |
THROTTLE LEVER |
| 71 |
0334219 |
SCREW |
| 73 |
0318660 |
BUMPER, Screw, throttle stop |
| 79 |
0433481 |
SHIFT ARM |
| 81 |
0396667 |
LINK ASSY., Spark advance |
| 91 |
0330145 |
COTTER PIN |
| 92 |
0330145 |
COTTER PIN |
| 93 |
0328636 |
PIN, Advance link |
| 94 |
0436195 |
ENSEMBLE THERMOSTAT |
| 100 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 101 |
0585203 |
TEMPERATURE SWITCH, Port |
| 111 |
0334220 |
SCREW, CPS bracket |
| 115 |
0432570 |
POWERHEAD GASKET SET |
