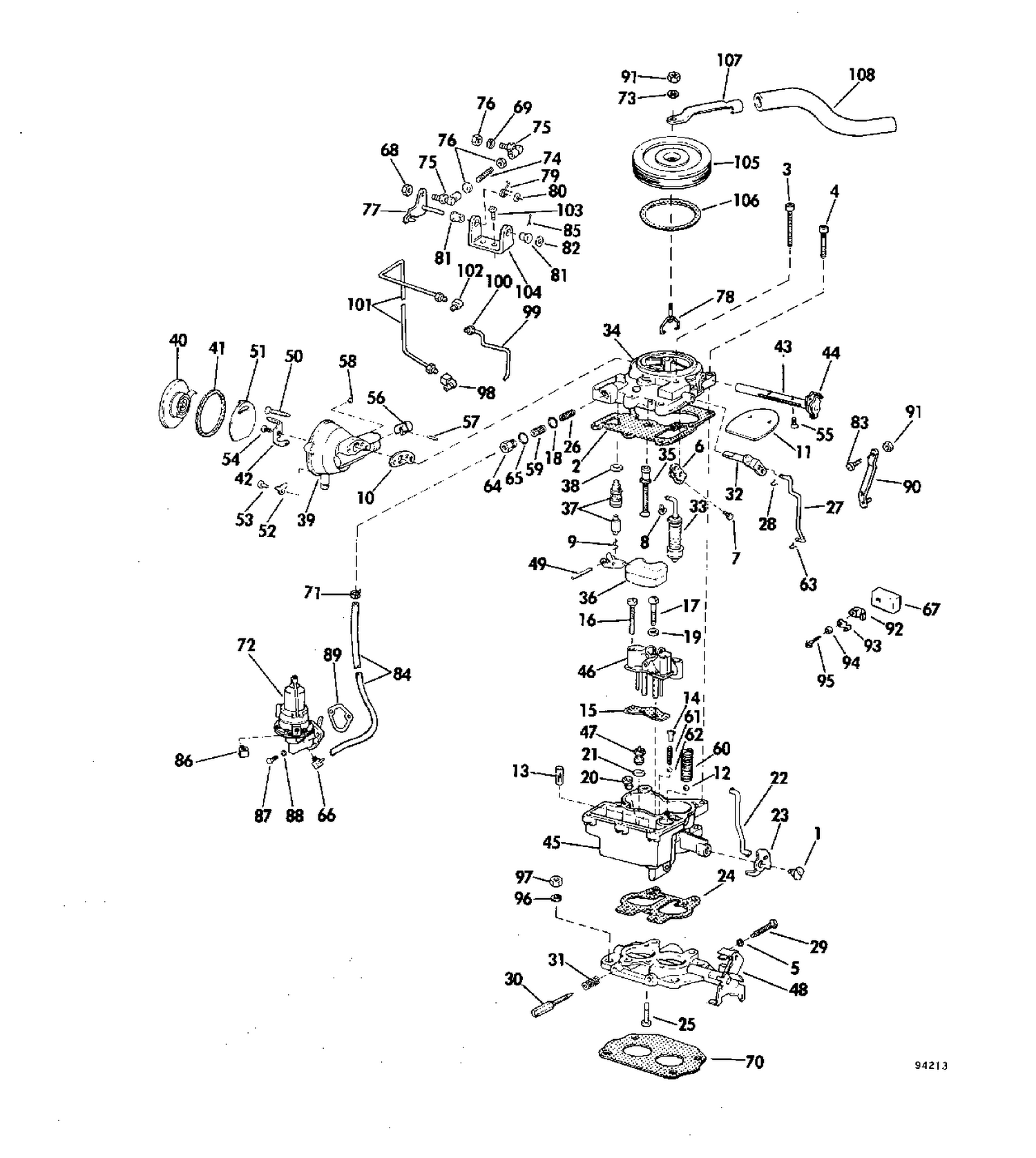

| Ref | Part Number | Description |
|---|
| 1 |
0311651 |
SCREW, Idle stop |
| 3 |
0312416 |
SCREW, Air horn |
| 4 |
0316307 |
SCREW, Air horn, short |
| 6 |
0312419 |
LEVER, Pump inside |
| 7 |
0311661 |
SCREW, Pump lever |
| 9 |
PULL |
CLIP,Float valve |
| 10 |
GASKET |
CHOKE HOUSING |
| 11 |
0908031 |
CHOKE VALVE |
| 16 |
0312430 |
SCREW, Venturi cluster outer |
| 20 |
0910183 |
MAIN METERING JET |
| 20 |
0910185 |
MAIN METERING JET |
| 22 |
0312436 |
CHOKE ROD |
| 22 |
0313057 |
CHOCKE ROD |
| 23 |
0312437 |
STOP, Idel speed screw |
| 25 |
0312439 |
SCREW, Throttle body |
| 26 |
0314548 |
SPRING, Fuel filter |
| 27 |
0312441 |
PUMP ROD |
| 27 |
0384469 |
PUMP ROD & CLIP ASSY |
| 28 |
HITCH |
PIN |
| 29 |
0312443 |
SCREW, Idle stop |
| 29 |
0908029 |
SCREW, Idle stop |
| 31 |
0312445 |
SPRING, Idle needle |
| 32 |
0381385 |
PUMP SHAFT & LEVER ASSEMBLY |
| 32 |
PUMP |
SHAFT & LEVER ASSY |
| 33 |
PUMP |
ASSEMBLY |
| 34 |
AIR |
HORN ASSEMBLY |
| 35 |
0382013 |
POWER PISTON ASSEMBLY |
| 36 |
0982385 |
FLAT ASSY. |
| 39 |
0381391 |
CHOKE HOUSING ASSEMBLY |
| 39 |
0980006 |
CHOKE HOUSING ASSEMBLY |
| 40 |
0980005 |
COVER COIL & GASKET |
| 42 |
CHOKE |
LEVER & LINK ASSY |
| 43 |
0381395 |
CHOKE SHAFT ASSEMBLY |
| 44 |
0381393 |
CHOKE LEVER & COLLAR ASSEMBLY |
| 44 |
0980004 |
CHOKE LEVER & COLLAR |
| 45 |
0980002 |
FLOAT BOWL ASSEMBLY |
| 45 |
FLOAT |
BOWL ASSEMBLY |
| 46 |
VENTURI |
CLUSTER ASSY |
| 47 |
POWER |
VALVE ASSEMBLY |
| 49 |
0311677 |
PIN, Float hinge |
| 50 |
0311672 |
SCREW, Choke housing |
| 51 |
0910184 |
BAFFLE PLATE This part replaces 0908032. |
| 52 |
0311662 |
RETAINER, Therm cover |
| 53 |
0311661 |
SCREW, Pump lever |
| 54 |
0311669 |
SCREW, Choke lever |
| 55 |
0311666 |
SCREW, Choke valve |
| 56 |
0311665 |
CHOKE PISTON |
| 57 |
0311664 |
PIN, Choke piston |
| 58 |
0311673 |
PLUG, Lead ball |
| 59 |
0908034 |
FILTER, Fuel inlet |
| 64 |
0908035 |
FILTER NUT, Fuel inlet |
| 66 |
0908637 |
ELBOW, Bowl inlet |
| 67 |
0981534 |
PIN & SPACER ASSY |
| 70 |
0315055 |
GASKET, Carb to adapter |
| 73 |
0329241 |
RONDELLE This part replaces 0306482. |
| 74 |
0908082 |
LINK |
| 75 |
0379926 |
BALL JOINT |
| 77 |
0980094 |
THROTTLE SHAFT ASSEMBLY |
| 78 |
0907917 |
BAIL, Flame arrestor |
| 79 |
0908450 |
SPRING, Throttle return |
| 80 |
0908187 |
RETAINER, Throttle arm |
| 81 |
0908979 |
BUSHING, Pivot bracket |
| 82 |
0303887 |
WASHEER, Pin to swivel bracket |
| 83 |
0306487 |
SCREW |
| 86 |
0310924 |
CLAMP, Main cable to adapter |
| 87 |
0306322 |
BOLT, Water pump |
| 89 |
3705042 |
GASKET, Fuel pump mounting |
| 90 |
0981649 |
THROTTLE LEVER & PIN ASS |
| 91 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0901646. |
| 92 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 93 |
0310687 |
DETENT SPRING, Anchor block |
| 94 |
0310688 |
SAPCER, Anchor block |
| 95 |
0311084 |
SCREW, Anchor block |
| 95 |
0511111 |
SCREW, Anchor block |
| 96 |
0311388 |
ORING |
| 98 |
0306344 |
BALL SLEEVE |
| 99 |
0907797 |
TUBE, Heat exchange |
| 99 |
0980093 |
HEAT EXCHANGE TUBE ASSY |
| 100 |
0306345 |
NUT, Tube |
| 101 |
0982222 |
FUEL LINE, Pump to carb |
| 101 |
0985033 |
FUEL LINE, Pump to carb This part replaces 0980077. |
| 102 |
0310924 |
CLAMP, Main cable to adapter |
| 102 |
0310958 |
FITTING, Fuel line |
| 103 |
0304992 |
SCREW |
| 104 |
0908081 |
PIVOT BRACKET, Lilnkage |
| 105 |
0982105 |
FLAME ARRESTOR |
| 106 |
0908947 |
GASKET, Flame arrestor |
| 107 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 0982217 |
0982217 |
CARBURETOR ASSEMBLY |
| 0982219 |
0982219 |
CARBURETOR ASSEMBLY |
