| Ref | Part Number | Description |
|---|
| 1 |
0303355 |
GASKET |
| 2 |
0303356 |
PLATE |
| 4 |
0303391 |
SEAL |
| 5 |
0303357 |
SPRING |
| 6 |
0303327 |
WASHER |
| 7 |
0381026 |
DRIVE SHAFT ASSY., Std |
| 7 |
0381027 |
DRIVE SHAFT ASST., Long 5 INCH LONGER PARTS |
| 9 |
0303395 |
SCREW |
| 10 |
0312107 |
RETAINER |

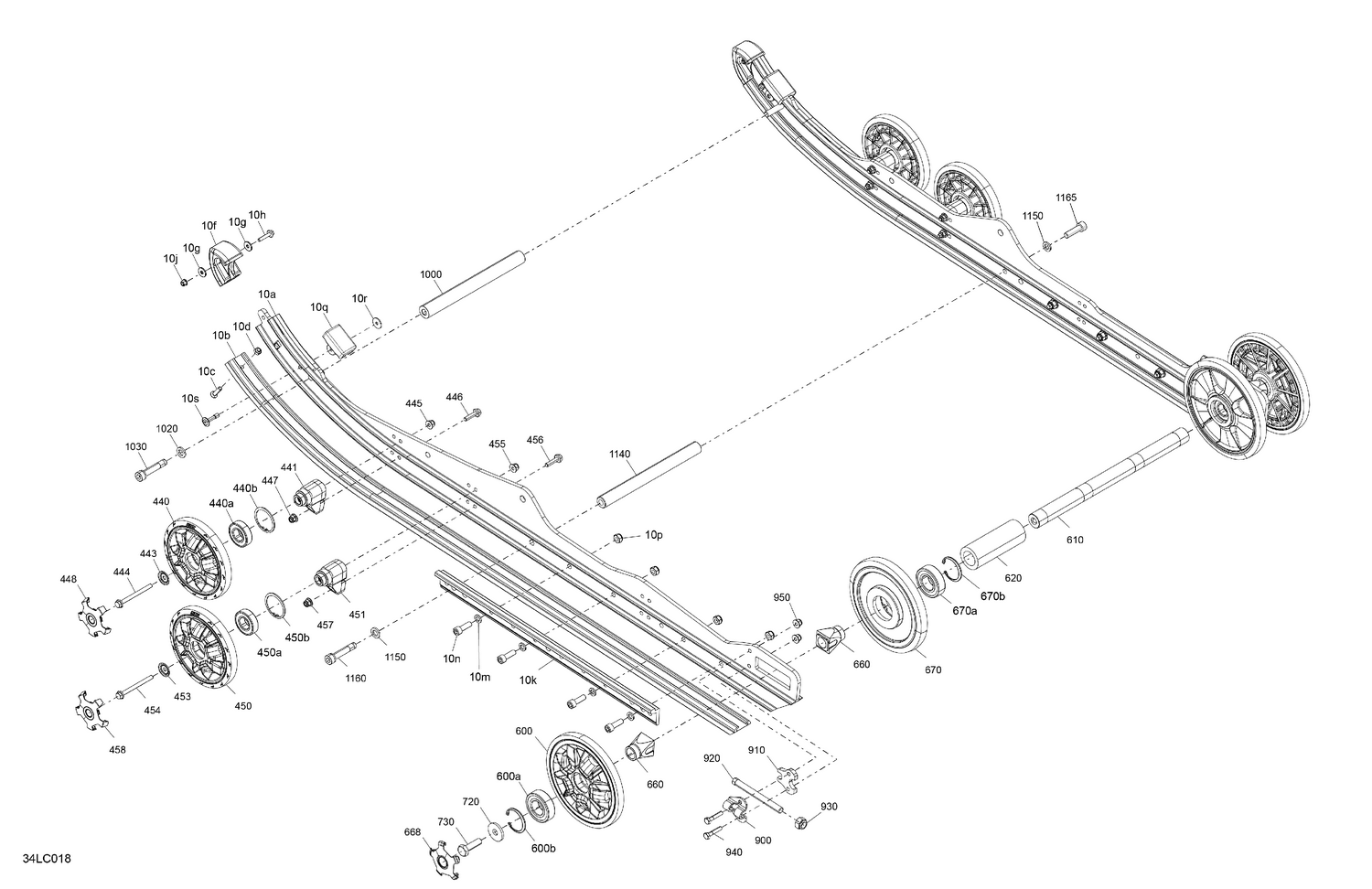

| 10a |
503196585 |
Platinum Silver, Rail Suspension 129 |
| 10b |
503192618 |
Black Slider, 154" |
| 10c |
208562531 |
Phillips Screw M6 X 25 |
| 10d |
232561434 |
Elastic Stop Nut M6 |
| 10f |
503192299 |
Runner Protector |
| 10g |
250200140 |
Washer |
| 10h |
207652544 |
Hex. Flange Screw M5 X 25 |
| 10j |
233251434 |
Flanged Elastic Nut M5 |
| 10k |
503196824 |
Platinum Silver, Rail Reinforcement |
| 10m |
503192494 |
Washer |
| 10n |
207183054 |
Hex. Cap Screw M8 X 30 |
| 10p |
233281466 |
Elastic Flang Nut M8 |
| 10q |
503190576 |
Rubber Stopper |
| 10r |
503191273 |
Washer |
| 10s |
293150224 |
Rivet Pop 3/16 |
| 12 |
0303339 |
GASKET, Bearcase to bearing housing |
| 13 |
0382796 |
HOUSING & RETAINER ASSY |
| 15 |
0305303 |
PLATE, Impeller house |
| 16 |
0277181 |
IMPELLER & PIN ASSY |
| 18 |
0303442 |
HOUSING, Impeller |
| 19 |
0390040 |
GEARCAE, Bush. & pin assembly This part replaces 0382574. |
| 21 |
0301877 |
O RING SHIFT ROD |
| 25 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 26 |
SEAL, |
Gearcase |
| 29 |
0307853 |
O RING |
| 30 |
0303679 |
SCREW |
| 31 |
0304579 |
COVER, By-pass, upper |
| 32 |
0303700 |
SPRING, Detent backup |
| 33 |
0303466 |
DENTENT, Spring |
| 34 |
0306478 |
SCREW |
| 35 |
0309582 |
SHIFT ROD, Lower |
| 36 |
0312108 |
GEAR - PINION |
| 37 |
0303380 |
BEARING, Front |
| 39 |
0377152 |
GEAR & BUSHING, Front |
| 40 |
0303340 |
LEVER, Shifter |
| 43 |
0303381 |
CRADDLE,Shifter |
| 44 |
0377458 |
SHIFTER, Clutch dog |
| 45 |
0305261 |
SHAFT, Propeller |
| 46 |
0305216 |
GEAR, Reverse |
| 47 |
0303998 |
BUSHING, Reverse gear |
| 48 |
0382291 |
GEAR CASE HEAD & BEARING |
| 52 |
0305296 |
COTTER PIN |
| 53 |
0305394 |
NUT |
| 54 |
0307949 |
DRIVE PIN, Propeller |
| 55 |
0307151 |
SCREW |
| 56 |
0304317 |
TUBE, Water (standard) |
| 56 |
0304318 |
TUBE, Water, long |
| 58 |
0304081 |
CONNECTOR 5 " EXTENSION KIT |
| 61 |
0385319 |
PROP., 8 x 7-1/4, 3 blade, std. |
| 62 |
0324828 |
EXTENSION, Gearcase This part replaces 0303672. |
| 62 |
0386587 |
PROP., 8-1/4 x 5, 2 blade |
| 63 |
0307151 |
SCREW |
| 440a |
503190396 |
Ball Bearing |
| 440b |
415129371 |
Retaining Ring |
| 441 |
503193894 |
Casted Support |
| 443 |
503191820 |
Wheel Cup M6 |
| 444 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 445 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 446 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 447 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 448 |
503195347 |
Red, Wheel Cap |
| 450a |
503190396 |
Ball Bearing |
| 450b |
415129371 |
Retaining Ring |
| 451 |
503193894 |
Casted Support |
| 453 |
503191820 |
Wheel Cup M6 |
| 454 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 455 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 456 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 457 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 458 |
503195347 |
Red, Wheel Cap |
| 600a |
503190396 |
Ball Bearing |
| 600b |
415129371 |
Retaining Ring |
| 610 |
503190429 |
Rear Axle |
| 620 |
503191263 |
Rear Spacer |
| 660 |
503190428 |
Rear Wheel Spacer |
| 668 |
503195350 |
Red, Wheel Cap |
| 670a |
503190396 |
Ball Bearing |
| 670b |
415129371 |
Retaining Ring |
| 720 |
503190439 |
Washer |
| 730 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 900 |
503192583 |
Tensioner |
| 910 |
503193250 |
Spacer |
| 920 |
230100054 |
Hex Screw M10 x 100 |
| 930 |
233601466 |
Elastic Locking Nut M10 |
| 940 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 950 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 1000 |
503195015 |
Limiter Strap Shaft |
| 1020 |
503192496 |
Washer |
| 1030 |
205505054 |
Socket Screw |
| 1140 |
503191260 |
Axle Strap |
| 1150 |
503192496 |
Washer |
| 1160 |
205503554 |
Socket Head Screw M10 X 35 |
| 0381294 |
0381294 |
EXTENSINO KIT ASSEMBLY 5 INCH LONGER PARTS |
| 0382795 |
0382795 |
GEARCASE ASSEMBLY |
