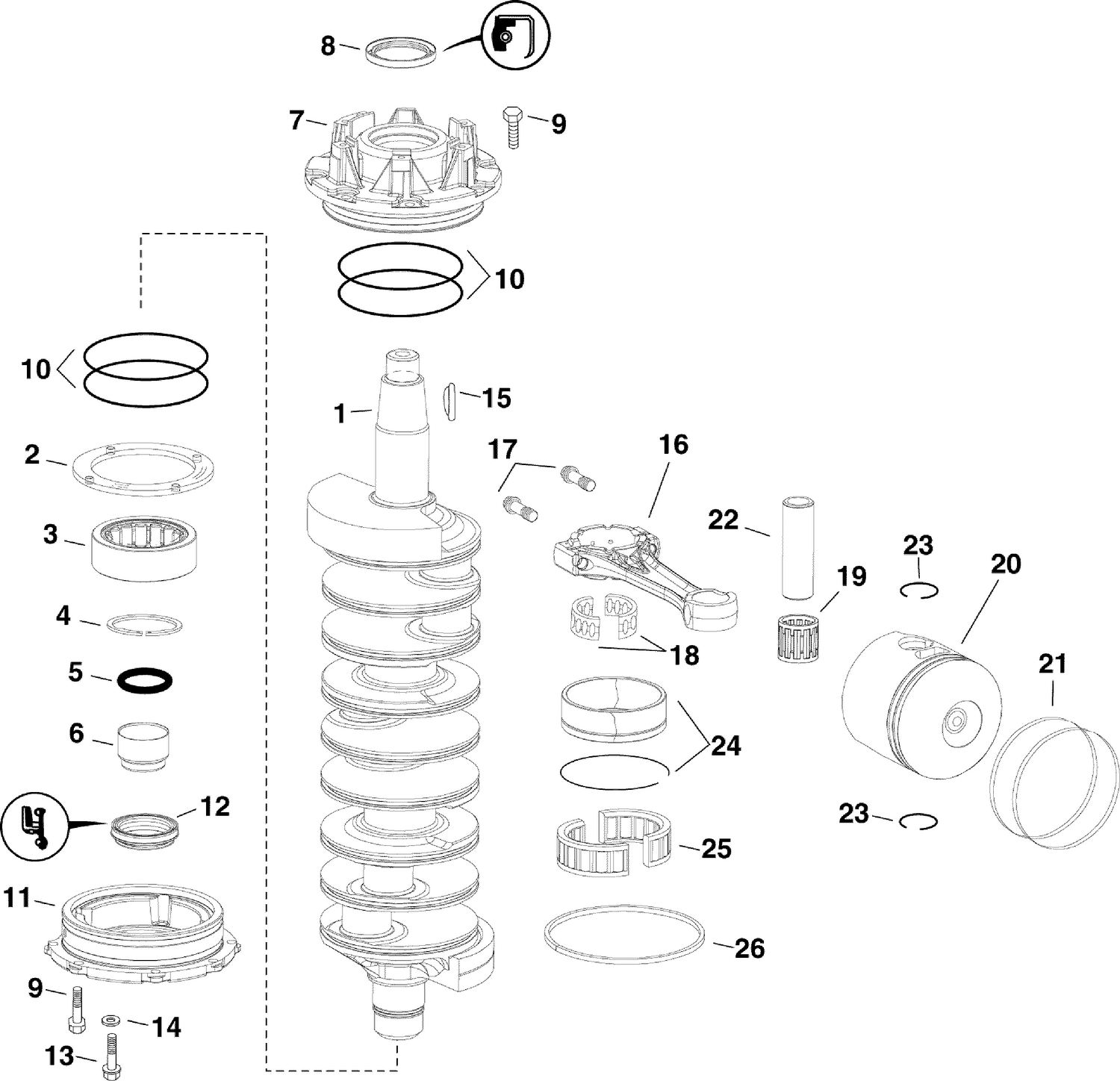

| Ref | Part Number | Description |
|---|
| 1 |
0434771 |
CRANKSHAFT Assembly |
| 4 |
0326047 |
Retaining Ring |
| 7 |
5001115 |
HEAD Assembly, Upper |
| 9 |
0344020 |
SCREW, Crankcase head |
| 11 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0434792. |
| 16 |
5009039 |
ROD Assembly, Connecting This part replaces 5000643. |
| 18 |
0396041 |
BEARING, Connecting rod |
| 19 |
5005942 |
BEARING, Wrist pin |
| 20 |
5006737 |
PISTON & RING Assembly, Port |
| 20 |
5006738 |
PISTON & RING Assembly, Starboard |
| 20 |
5006739 |
PISTON & RING Assembly – Oversize, Port |
| 20 |
5007051 |
Pstn&Rng Kit This part replaces 5006740. |
| 24 |
0352960 |
BEARING RACE, Center main |
| 25 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
