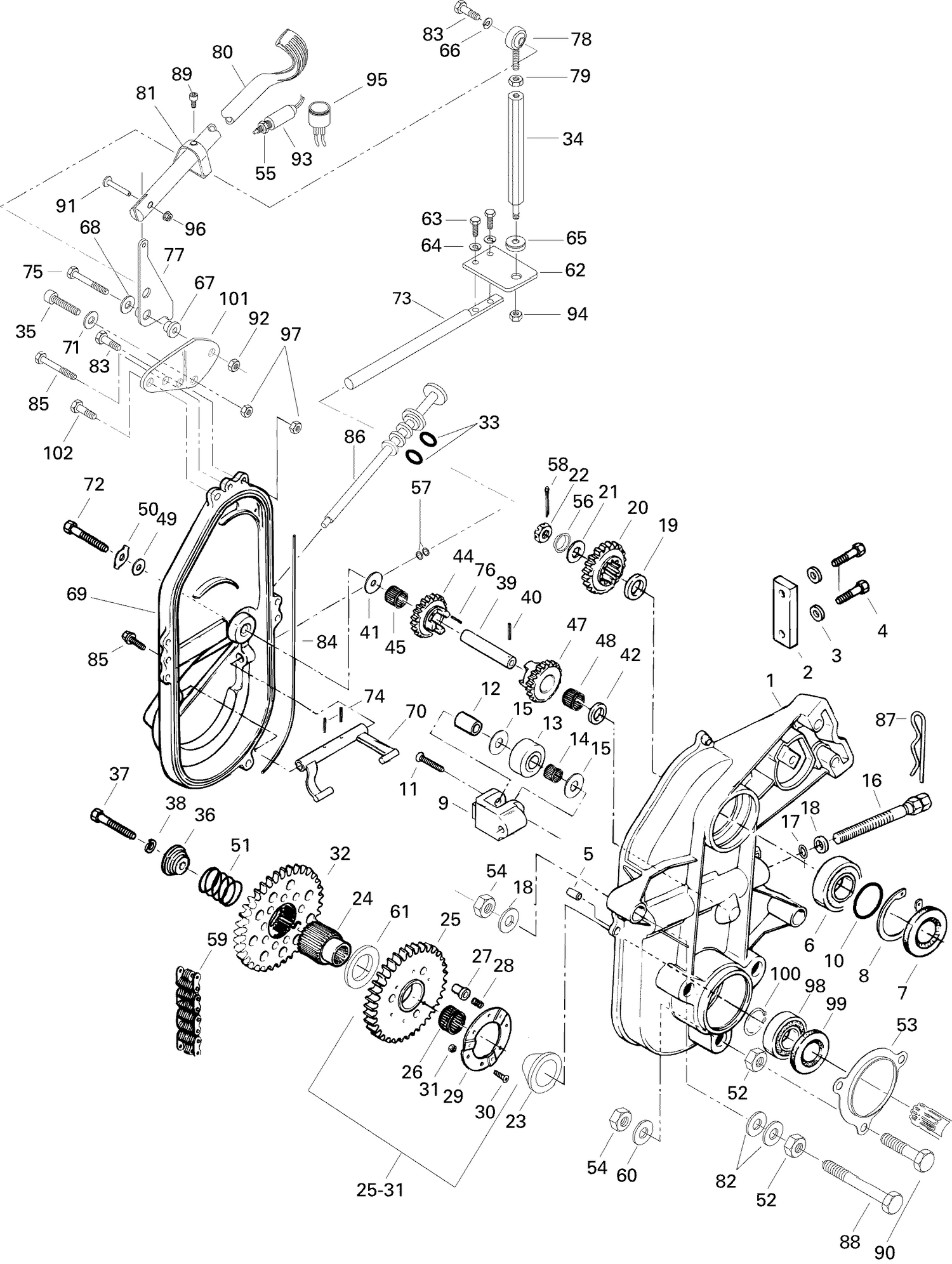

05- Transmission
Parts (99)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504095402 | Chaincase |
| 2 | 504082400 | Chain Slider |
| 3 | 732900040 | Copper Washer |
| 4 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 5 | 732620001 | CYLINDER PIN - Call your local BRP dealership |
| 6 | 293350115 | Ball Bearing This part replaces 405404400. |
| 7 | 414882800 | OIL SEAL - Call your local BRP dealership |
| 8 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 9 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 10 | 371910000 | Circlip |
| 11 | 732601144 | SCREW - Call your local BRP dealership |
| 12 | 504080200 | SPACER - Call your local BRP dealership |
| 13 | 414531300 | ROLLER - Call your local BRP dealership |
| 14 | 405403000 | NEEDLE BEARING - Call your local BRP dealership |
| 15 | 504080300 | WASHER - Call your local BRP dealership |
| 16 | 732601163 | Tensioner Adjustment Screw |
| 17 | 414484400 | O-Ring |
| 18 | 234001410 | Flat Washer 10 mm This part replaces 224001211. |
| 19 | 504093400 | Shim |
| 20 | 504091200 | Sprocket, 21 Teeth |
| 21 | 504087100 | Washer |
| 22 | 232210414 | HEX. CASTELLATED NUT M16 - Call your local BRP dealership This part replaces 228911045. |
| 23 | 504094100 | Retaining Ring |
| 24 | 504094200 | Coupling Shaft |
| 25 | 504088200 | SPROCKET (44 TEETH) - Call your local BRP dealership |
| 26 | 414772600 | NEEDLE BEARING - Call your local BRP dealership |
| 27 | 504076800 | DRIVE PIN - Call your local BRP dealership |
| 28 | 414772700 | SPRING - Call your local BRP dealership |
| 29 | 504076100 | RETAINER RING - Call your local BRP dealership |
| 30 | 207152044 | Hex. Screw M5 X 20 This part replaces 222052065. |
| 31 | 228451046 | Nut Lock Hex. M5 |
| 32 | 504096800 | SLIDING GEAR, 56 TEETH - Call your local BRP dealership |
| 33 | 414969400 | O-RING - Call your local BRP dealership |
| 34 | 504094700 | Tie Rod (Bar) |
| 35 | Not | Available As Spare Part - Allen Screw M6 x 16 |
| 36 | 504099100 | Cap |
| 37 | 207005044 | Hex. Screw M10 X 1.5 X 50 This part replaces 222005065. |
| 38 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 39 | 504083100 | Reverse Shaft |
| 40 | 732804003 | Spring Pin |
| 41 | 504077300 | Spacer |
| 42 | 504078700 | Ring |
| 44 | 504092800 | Gear (19 Tooth) |
| 45 | 414805000 | NEEDLE BEARING - Call your local BRP dealership |
| 47 | 581098200 | Sprocket Ass'y (19 Teeth) |
| 48 | 414773100 | NEEDLE BEARING - Call your local BRP dealership |
| 49 | 504082900 | Washer |
| 50 | 504087700 | TAB LOCK - Call your local BRP dealership |
| 51 | 504099200 | Release Spring |
| 52 | 504083800 | Spacer |
| 53 | 501022100 | Protector |
| 54 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 55 | 732610075 | Nut |
| 56 | 417000900 | Spring Washer |
| 57 | 414773200 | O-RING - Call your local BRP dealership |
| 58 | 371801300 | Cotter Pin |
| 59 | 412105500 | Drive Chain, (72 Links-Narrow) |
| 60 | 732900020 | Copper Washer |
| 61 | 504094300 | WASHER - Call your local BRP dealership |
| 62 | 504094602 | Plate |
| 63 | 207151444 | Hex. Screw M5 X 14 This part replaces 222051465. |
| 64 | 234151401 | Lock Washer 5 mm This part replaces 224751090. |
| 65 | 570045700 | Rubber Washer |
| 66 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 67 | 414927600 | Flanged Bushing |
| 68 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 69 | 504098500 | Cover Chaincase |
| 70 | 504075800 | Fork |
| 71 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 72 | 207089044 | Hex. Screw M8 X 90 This part replaces 222089065. |
| 73 | 504094600 | Shaft |
| 74 | 414772500 | SPRING PIN - Call your local BRP dealership |
| 75 | 207084544 | Hex. Screw M8 X 45 This part replaces 222084565. |
| 76 | 570048600 | Alignement Rod |
| 77 | 504094900 | Weld Plate Pivoting |
| 78 | 414773400 | RH BALL-JOINT - Call your local BRP dealership |
| 79 | 232061404 | Hexagonal Nut M6 This part replaces 228061005. |
| 80 | 570044600 | GRIP - Call your local BRP dealership |
| 81 | 572071100 | Stopper-Switch |
| 82 | 504073700 | WASHER - Call your local BRP dealership |
| 83 | 207162044 | Hex. Screw M6 X 20 This part replaces 222062065. |
| 84 | 414362300 | O-Ring |
| 85 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 732600004. |
| 86 | 572075500 | Filler Cap |
| 87 | 414575600 | Hair Pin |
| 88 | 732601111 | Hex. Screw M10 x 70 |
| 89 | 364901600 | Phillips Screw 8x1/2" |
| 90 | 732601112 | Hex. Screw M10 x 40 |
| 91 | 390008900 | Rivet |
| 92 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 93 | 515162600 | Switch Connector Ass'y |
| 94 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 95 | 414792102 | Back-Up Alarm This part replaces 414792100. |
| 96 | 389804300 | Push Nut |
| 97 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 98 | 293350115 | Ball Bearing This part replaces 405404400. |
| 99 | 504152076 | Seal Oil Ass'y This part replaces 581101700. |
| 100 | 371901700 | CIRCLIP - Call your local BRP dealership |
