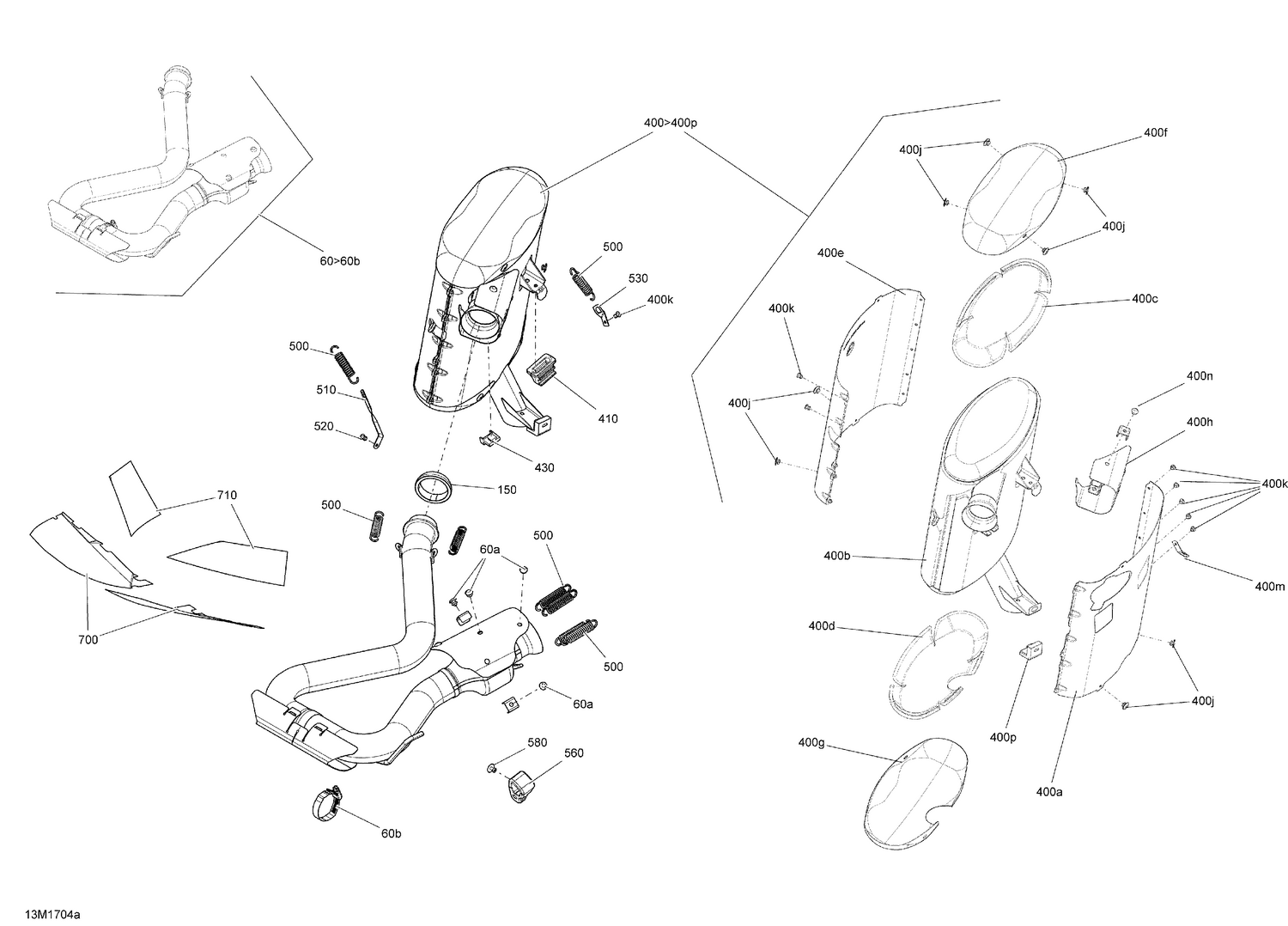

01- Exhaust System - 1200 4-TEC
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 60a | 293150173 | Rivet 6,4 mm |
| 60b | 293650036 | Tridon Clamp |
| 150 | 514054174 | Exhaust Gasket |
| 300 | 514054174 | Exhaust Gasket |
| 400a | 514055383 | SHELL - Call your local BRP dealership |
| 400b | 514055239 | Wool |
| 400c | 514055240 | Wool |
| 400d | 514055241 | Wool |
| 400e | 514055390 | SHELL - Call your local BRP dealership |
| 400f | 514055242 | TOP CAP - Call your local BRP dealership |
| 400g | 514055372 | LOWER CAP - Call your local BRP dealership |
| 400h | 514055245 | DEFLECTOR - Call your local BRP dealership |
| 400j | 390910000 | Pop Rivet 3/16” |
| 400k | 390909200 | Avex Rivet |
| 400m | 514054522 | Spring Bracket |
| 400n | 293150173 | Rivet 6,4 mm |
| 400p | 514054274 | Lower Stopper |
| 410 | 514055298 | UPPER STOPPER - Call your local BRP dealership |
| 430 | 514055187 | FRONT RUBBER - Call your local BRP dealership |
| 500 | 415107100 | Spring |
| 510 | 514055030 | Spring Bracket |
| 520 | 293150144 | Stavex Rivet |
| 530 | 514055037 | Spring Bracket |
| 540 | 390909200 | Avex Rivet |
| 560 | 514055012 | Rubber |
| 580 | 293150104 | Pop Rivet 3/16" |
| 700 | 514054999 | HEAT SHIELD - Call your local BRP dealership |
