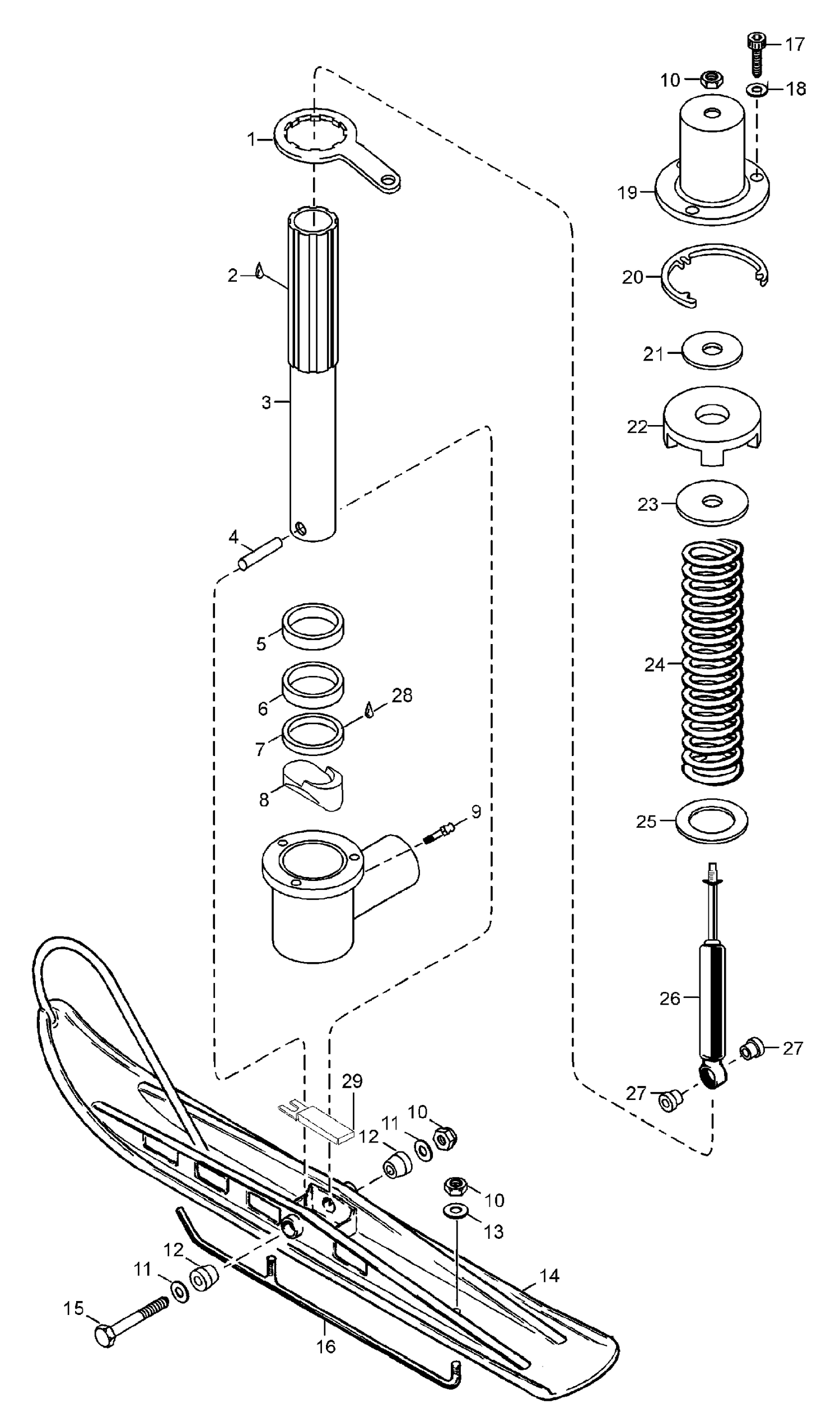

| Ref | Part Number | Description |
|---|
| 1 |
5340383 |
Reversing arm |
| 2 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 3 |
5243952 |
Slide |
| 4 |
549716 |
Sleeve |
| 5 |
414803100 |
Bushing, upper |
| 6 |
414803200 |
Bushing, lower |
| 7 |
316373 |
Seal - Call your local BRP dealership |
| 8 |
5341750 |
Rubber Absorber - Call your local BRP dealership |
| 9 |
34019 |
Grease Nipple M6 (1=10pcs) - Call your local BRP dealership |
| 10 |
33012 |
Nut elastic M10 |
| 11 |
20012 |
Washer A10.5DIN 9021-ST MUP(1=10pcs) - Call your local BRP dealership |
| 12 |
547543 |
Rubber |
| 13 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 14 |
5245338 |
Ski |
| 15 |
40354 |
Screw M10x125 |
| 16 |
5344021 |
Slide rail,hard metal |
| 17 |
40305 |
Allen screw M8x20 |
| 18 |
20014 |
Lock washer |
| 19 |
5240019 |
Cover |
| 20 |
503145600 |
SPACER - Call your local BRP dealership |
| 21 |
5440399 |
Plate |
| 22 |
570025800 |
Damper,rubber |
| 23 |
549492 |
Holder plate |
| 24 |
5240897 |
Spring 16 N/mm |
| 25 |
549493 |
Washer |
| 26 |
414803600 |
SHOCK - Call your local BRP dealership |
| 27 |
572034500 |
Sleeve |
| 28 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
