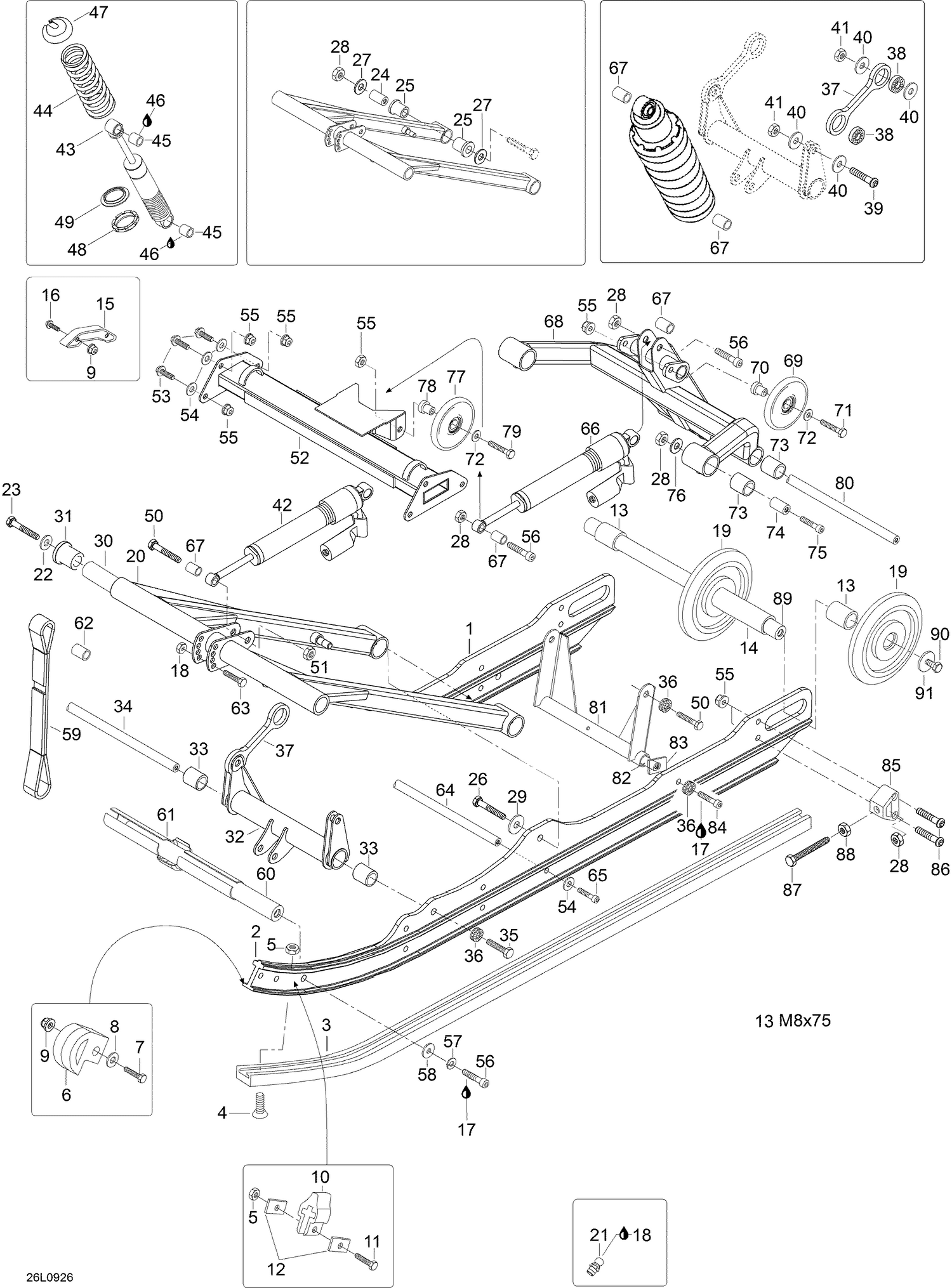

08- Rear Suspension
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605255122 | R.H. Runner |
| 2 | 605255121 | L.H. Runner |
| 3 | 605355646 | Shoe |
| 4 | Not | Available As Spare Part - Socket head screw M6 x 25 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 605348954 | Runner protector |
| 7 | 207162544 | Hex. screw M6 x 25 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 5442328 | STOPPER-RUBBER - Call your local BRP dealership |
| 11 | 207163044 | Hex. screw M6 x 30 |
| 12 | 548470 | Washer |
| 13 | 5441512 | Sleeve |
| 14 | 5448027 | Sleeve |
| 15 | 503192731 | SLIDING PAD - Call your local BRP dealership This part replaces 5343191. |
| 16 | 207764044 | BOLT CARRIAGE DIN.603 - Call your local BRP dealership |
| 17 | 293800005 | Loctite 271, 10ml |
| 18 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 19 | 503189478 | Idler wheel 165 |
| 20 | 503191989 | Front arm |
| 21 | 408200700 | Grease Fitting |
| 22 | 250200005 | Washer |
| 23 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 24 | 605354157 | Shaft |
| 25 | 31065 | Cushion |
| 26 | 207007044 | Hex. screw M10 x 70 |
| 27 | 605355801 | Washer |
| 28 | 232500416 | Elastic Stop Nut M10 |
| 29 | 503183300 | Lock washer |
| 30 | 503192046 | Shaft |
| 31 | 31024 | Cushion |
| 32 | 605355772 | Front Aarm weld |
| 33 | 31024 | Cushion |
| 34 | 605355800 | Shaft |
| 35 | 40852 | Screw M10 x 55 |
| 36 | 20068 | Lock washer D10 |
| 37 | 605254159 | Link plate |
| 38 | 605631003 | Ball bearing |
| 39 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 40 | 234002600 | Flat Washer 10 mm, Stainless |
| 41 | 232500416 | Elastic Stop Nut M10 |
| 43 | 503192079 | Shock, front arm |
| 43 | 503192110 | Shock, rear arm |
| 44 | 25054 | Spring, front arm |
| 44 | 605625000 | Spring, rear arm |
| 45 | 31094 | Cushion |
| 46 | 32161 | Loctite 641, 50ml |
| 47 | 605354631 | Spring stopper |
| 48 | 230048 | Cam |
| 49 | 230049 | Spring guide |
| 50 | 207004544 | Hex. Screw M10 X 45 |
| 51 | 232500416 | Elastic Stop Nut M10 |
| 52 | 605354961 | Upper arm |
| 53 | 207182544 | Screw M8 x 25 |
| 54 | 605620002 | Washer A8,4 |
| 55 | 233281414 | Hex. Flange Elastic Nut M8 |
| 56 | 205005044 | Socket head screw M10 x 45 |
| 57 | 234001410 | Flat Washer 10 mm |
| 58 | 20005 | WASHER M10 - Call your local BRP dealership |
| 59 | 605355116 | Stopper strap |
| 60 | 605353958 | Shaft |
| 61 | 605355096 | Limiter |
| 62 | 605455335 | Sleeve |
| 63 | 207084544 | Hex. Screw M8 X 45 |
| 64 | 5343471 | Shaft |
| 65 | 40136 | Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 67 | 5446652 | Bushing |
| 68 | 605354962 | Rear arm |
| 69 | 46100 | Idler wheel 133/black |
| 70 | 605454461 | Sleeve |
| 71 | 207084544 | Hex. Screw M8 X 45 |
| 72 | 20077 | M8 Washer |
| 73 | 31024 | Lower Cushion |
| 73 | 31065 | Upper Cushion |
| 74 | 503191927 | Shaft |
| 75 | 205027544 | SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership |
| 76 | 20040 | Washer A10.5 |
| 77 | 572043500 | Idler Wheel |
| 78 | 605454167 | Sleeve |
| 79 | 207083544 | Hex. Screw M8 X 35 |
| 80 | 605355118 | Shaft |
| 81 | 605353953 | Rear arm |
| 82 | 605355119 | Shaft |
| 83 | 5446786 | Spport plate |
| 84 | 40852 | Socket head screw M10 x 55 |
| 85 | 5341633 | Tensioner |
| 86 | 205484546 | Socket head screw M8 x 45 |
| 87 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 88 | 232006414 | Nut M10 |
| 89 | 5341511 | Shaft |
| 90 | Not | Available As Spare Part - Hex. screw M10 x 35 |
