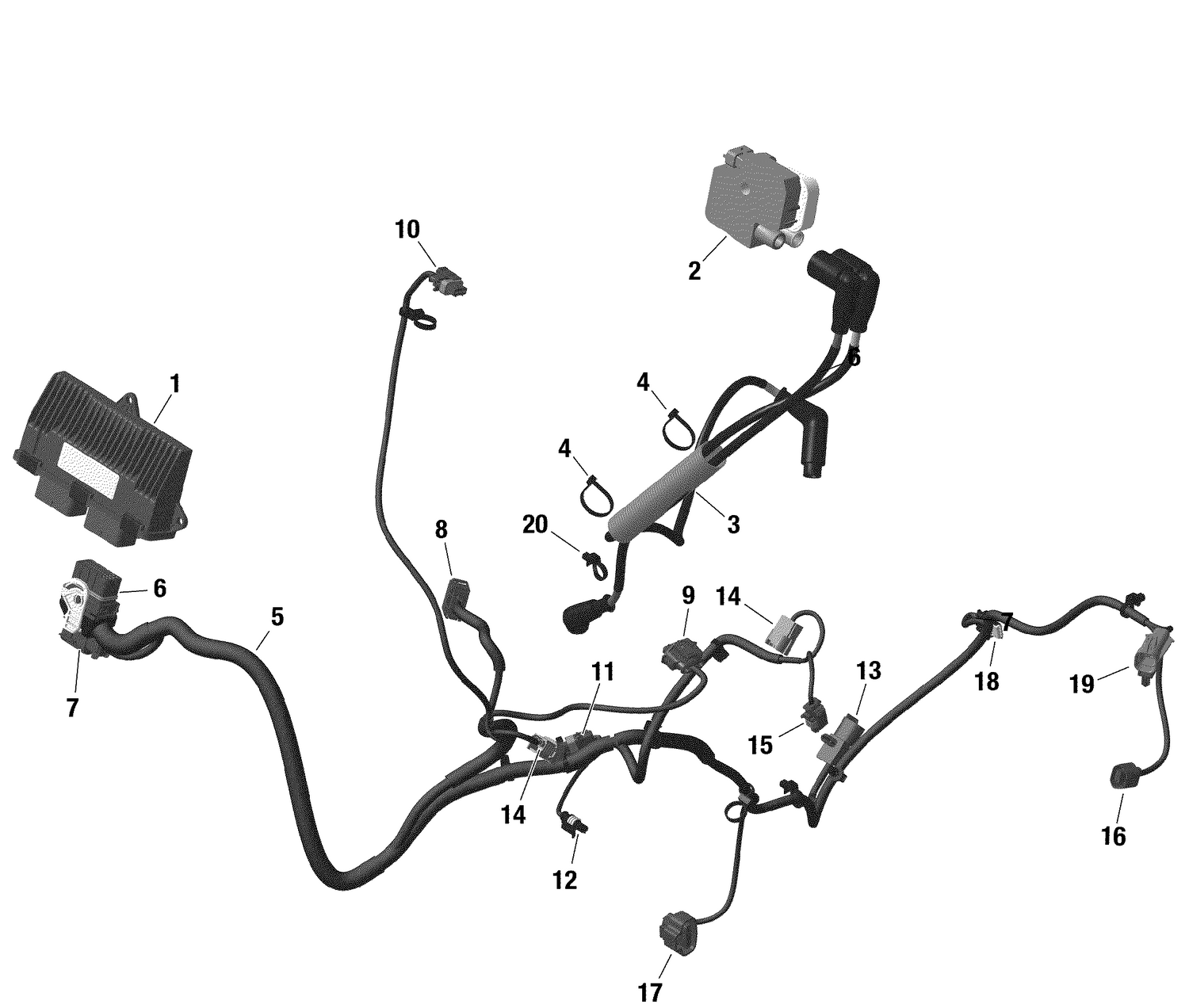

01- ROTAX - Engine Harness And Electronic Module
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666064 | Electronic Module Programmable |
| 2 | 278001546 | Ignition Coil |
| 3 | 420464153 | Ignition Cable Ass'y SAE |
| 4 | 420866722 | Tie Wrap 142X 3.2mm |
| 6 | 278000997 | Male Housing, 3 Circuits |
| 7 | 278001005 | Male Housing, 2 Circuits |
| 8 | 278002378 | Male Housing |
| 9 | 278001005 | Male Housing, 2 Circuits |
| 10 | 278000997 | Male Housing, 3 Circuits |
| 11 | 710000329 | Male Housing, 4 Circuits |
| 12 | 278001007 | Insulated Sheath |
| 13 | 710001927 | Housing |
| 14 | 710003731 | Housing |
| 15 | 515176410 | Male Connector |
| 16 | 278001012 | Male Housing, 1 Circuit |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 19 | XXX | Not Available As Spare Parts |
