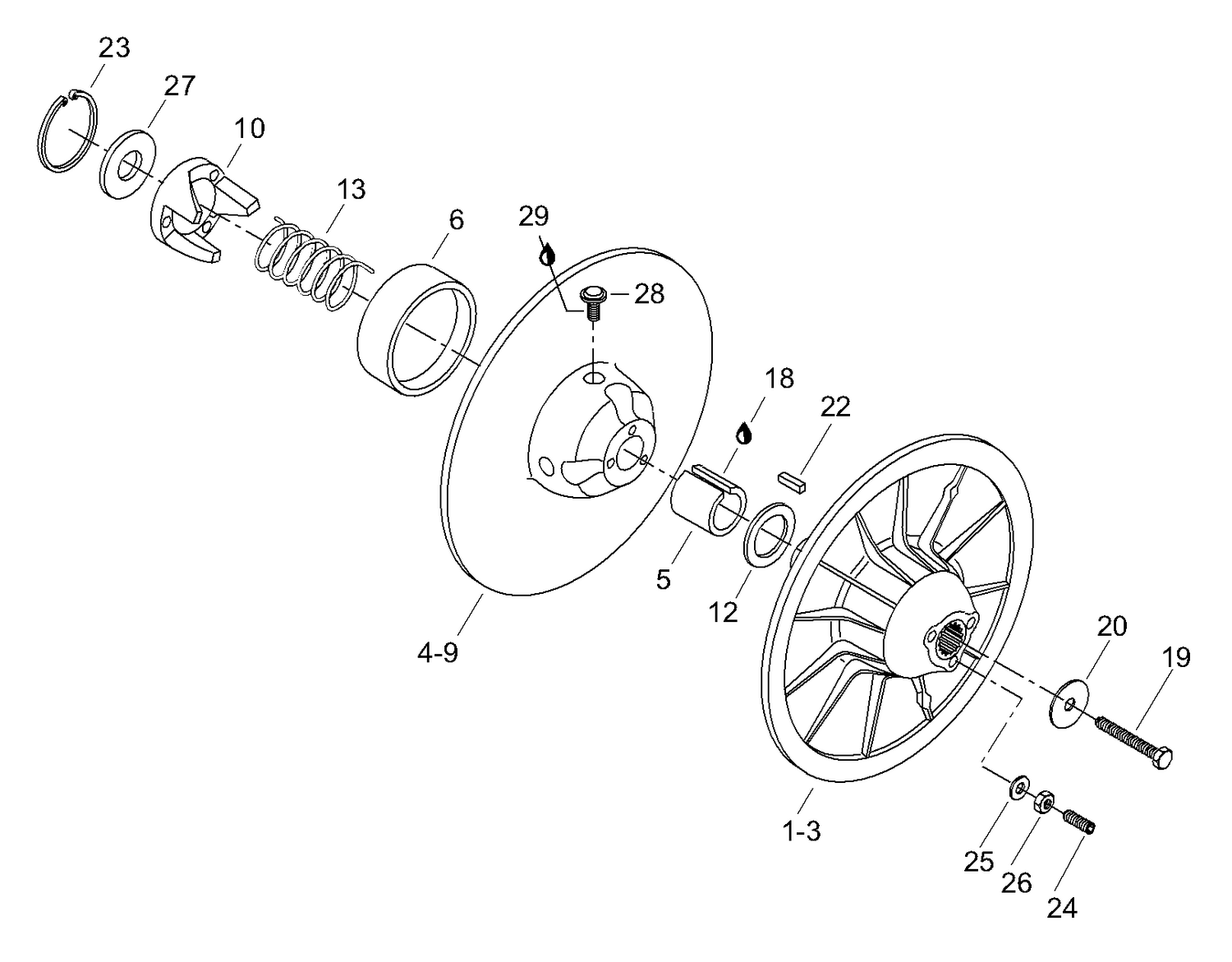

05- Driven Pulley
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 3 | Not | Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 5 | 417126515 | CUSHION - Call your local BRP dealership |
| 6 | 417126514 | Bushing |
| 9 | Not | Available As Spare Part - DOES NOT APPLY TO THIS MODEL |
| 10 | 417126600 | Cam 48-44 degr. |
| 12 | 504141900 | Stopper washer |
| 13 | 414558900 | RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 18 | 413703100 | Loctite 609 10cc |
| 19 | 40089 | M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 20 | 517302322 | Washer |
| 21 | 293800060 | Loctite 243, 10 ml |
| 22 | 414820800 | Key |
| 23 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 24 | 206263044 | Screw |
| 25 | 420245370 | WASHER - Call your local BRP dealership |
| 26 | 232061414 | Nut |
| 27 | 504141800 | Washer |
| 28 | 415114400 | Roller |
