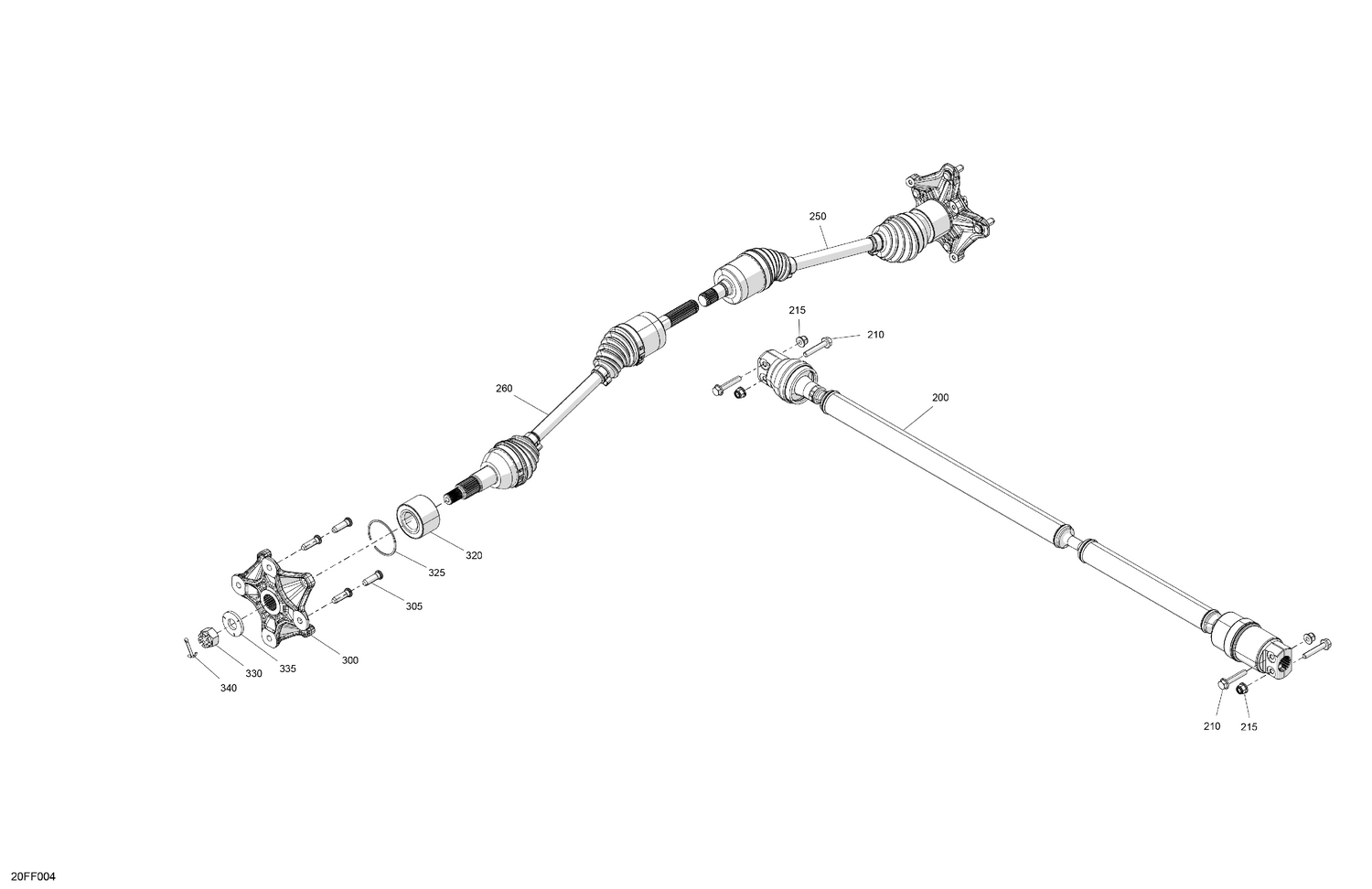

04- Drive - Front - Common Parts
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705503566 | Front Drive Axle |
| 210 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 215 | 233281416 | Hex. Elastic Flange Nut M8 |
| 250 | 705402250 | RH Front CV Joint |
| 260 | 705402251 | LH Front CV Joint |
| 300 | 705503257 | Wheel Hub |
| 305 | 250300055 | Wheel Stud M10 X 1.25 |
| 320 | 293350150 | Ball Bearing |
| 325 | 293370019 | Circlip |
| 330 | 232291413 | Hex. Flange Castellated Nut M18 |
| 335 | 250200171 | Conical Spring Washer M18 |
