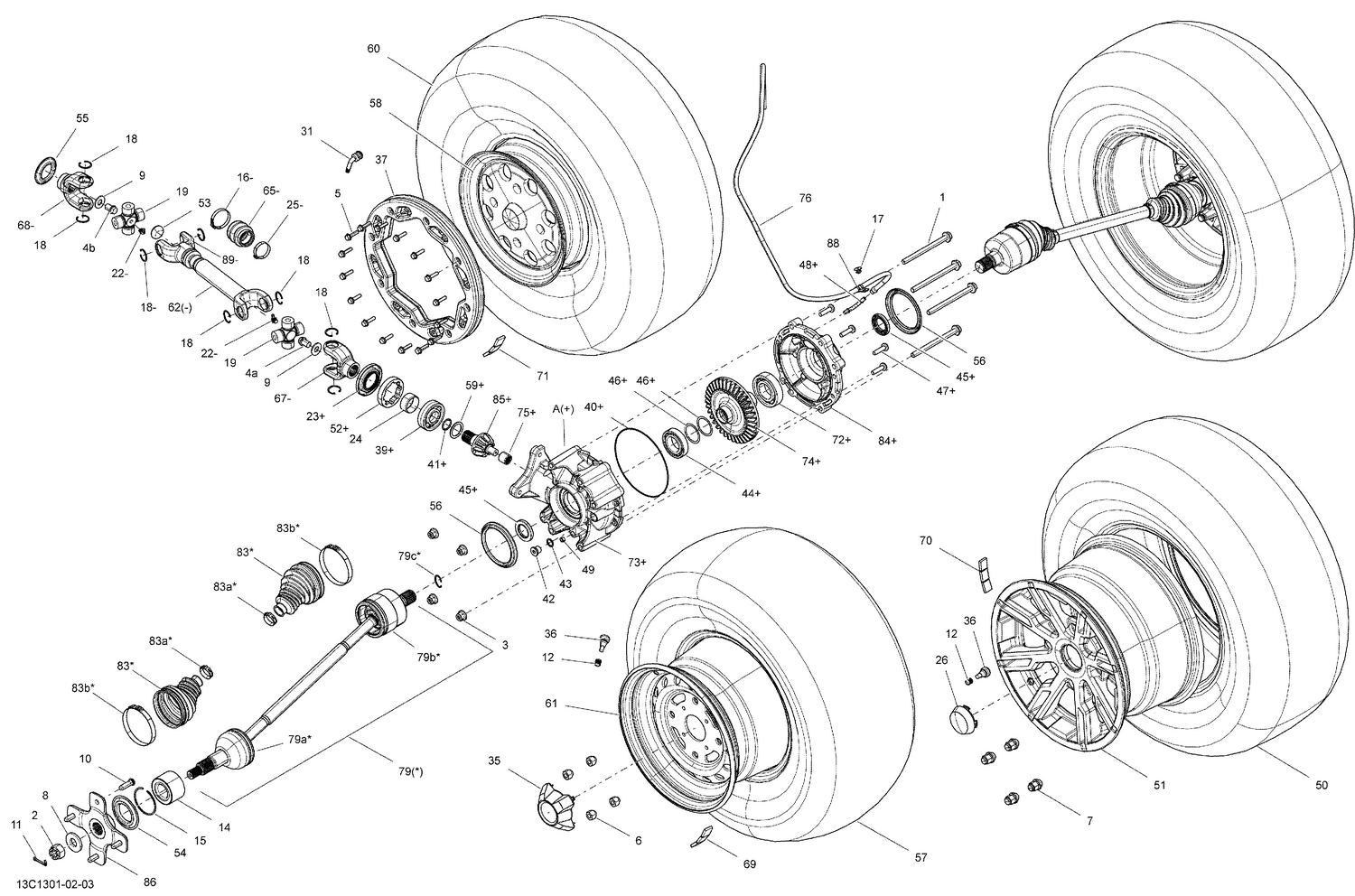

| Ref | Part Number | Description |
|---|
| 1 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 2 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 3 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 4a |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 4b |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
250100185 |
Chrome Wheel Nut M10 X 1.25 This part replaces 250100082. |
| 8 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 9 |
250200102 |
Flat Washer M12 |
| 11 |
250400036 |
Cotter Pin |
| 12 |
293000110 |
Valve Cap |
| 14 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 15 |
293370019 |
Circlip |
| 16 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 17 |
390402200 |
Pop Rivet 3/16" |
| 18 |
715900102 |
SNAP RING - Call your local BRP dealership |
| 19 |
715900326 |
Universal Joint This part replaces 715900186. |
| 22 |
715900184 |
Grease Fitting |
| 23 |
705401481 |
Oil Seal |
| 24 |
705400036 |
Wear Ring |
| 25 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 26 |
705400520 |
WHEEL CAP - Call your local BRP dealership |
| 31 |
705400872 |
VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership |
| 35 |
705400921 |
Wheel Cap |
| 36 |
705400193 |
Rim Valve With Cap |
| 37 |
XXX |
Not Available As Spare Parts |
| 39 |
705500260 |
Ball Bearing |
| 40 |
705500265 |
Seal |
| 41 |
705500267 |
O-Ring |
| 42 |
705500504 |
Fill Level Plug |
| 43 |
705500506 |
Copper Washer |
| 44 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 45 |
705501996 |
Oil Seal This part replaces 705501196. |
| 46 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 46 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 47 |
705401601 |
Screw This part replaces 705500892. |
| 48 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 49 |
705500894 |
Drain Plug |
| 50 |
705502665 |
Pneu Arrière This part replaces 705500964. |
| 51 |
705501813 |
Rear Rim This part replaces 705501471. |
| 52 |
705502059 |
Nut This part replaces 705500987. |
| 53 |
715900187 |
COVER - Call your local BRP dealership |
| 54 |
705501121 |
Wear Sleeve |
| 55 |
705501123 |
Protector |
| 56 |
705501124 |
Wear Ring |
| 57 |
XXX |
Not Available As Spare Parts |
| 58 |
XXX |
Not Available As Spare Parts |
| 59 |
705500075 |
Pinion Gear Shim .022" |
| 59 |
705501162 |
Pinion Gear Shim |
| 60 |
XXX |
Not Available As Spare Parts |
| 61 |
705501623 |
Black, Rear Rim |
| 62 |
703500805 |
Rear Propeller Shaft Kit This part replaces 705501257. |
| 65 |
715900118 |
Rubber Boot |
| 67 |
715900101 |
Fixe Yoke |
| 68 |
715900129 |
Fixed Joint This part replaces 705501373. |
| 69 |
XXX |
Not Available As Spare Parts |
| 71 |
XXX |
Not Available As Spare Parts |
| 72 |
705502738 |
Ball Bearing This part replaces 705501389. |
| 73 |
705501395 |
PINION REAR COVER - Call your local BRP dealership |
| 74 |
705501397 |
Gear, 36 Tooth |
| 75 |
705501408 |
Needle Bearing |
| 76 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 79 |
705502359 |
Half Shaft This part replaces 705501481. |
| 79a |
705501776 |
JOINT_CV EXT - Call your local BRP dealership |
| 79b |
705501780 |
PLUNGING JOINT - Call your local BRP dealership |
| 79c |
705501781 |
Circlip |
| 83 |
705501864 |
Boot Kit This part replaces 705501777. |
| 83a |
715900242 |
Oetiker Clamp, 27.3 mm |
| 83b |
715900241 |
Oetiker Clamp, 82.1 mm |
| 84 |
705501507 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership |
| 85 |
705501571 |
PINION 10 TOOTH - Call your local BRP dealership |
| 86 |
705401314 |
Wheel Hub |
| 86 |
705501713 |
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership |
| 88 |
293650256 |
Clamp This part replaces 705600459. |
| 89 |
715900106 |
Spline Yoke |
