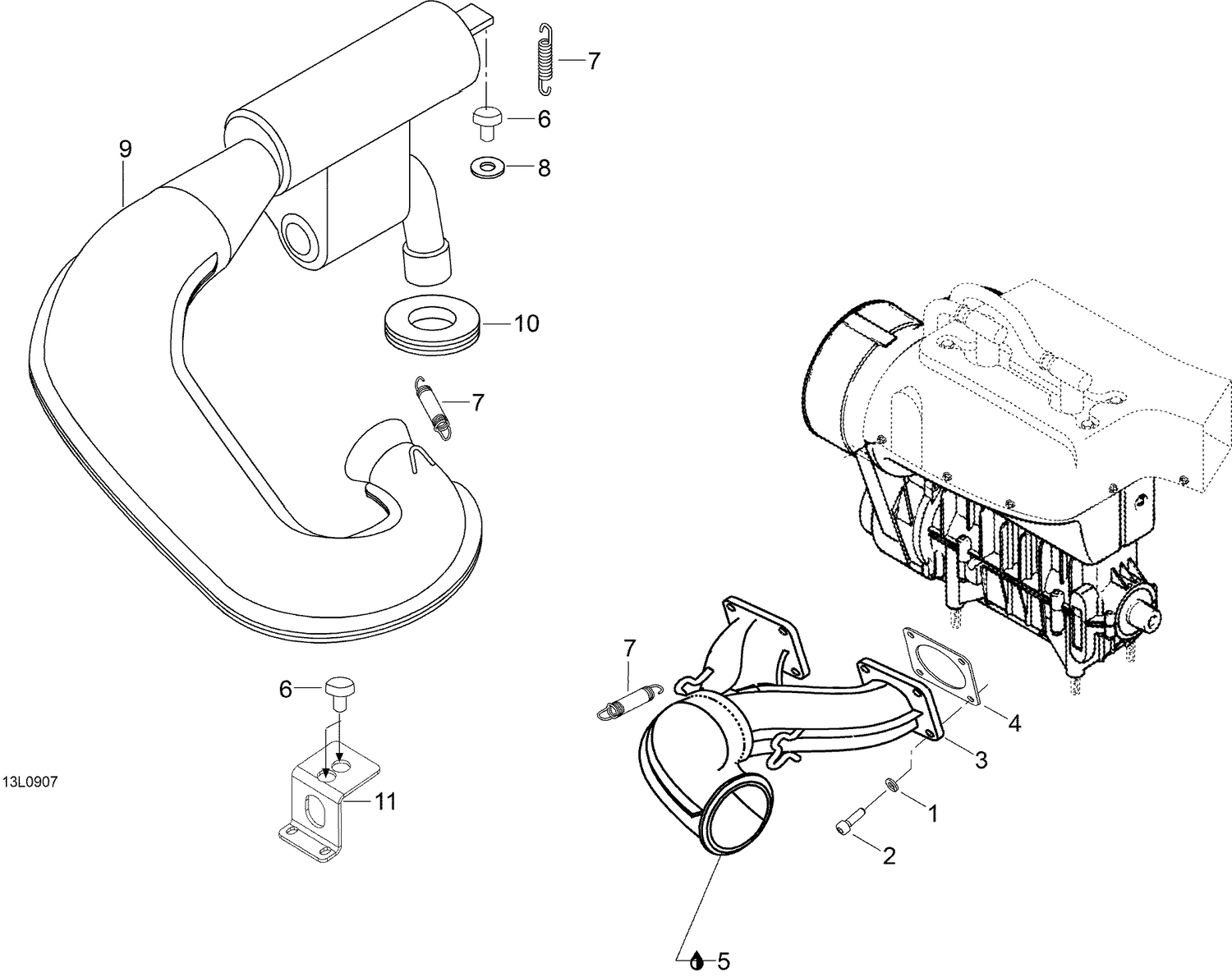

01- Exhaust System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234181401 | Lock Washer 8 mm |
| 2 | M40135 | Socket Head Screw M8 X 30 |
| 3 | 420973512 | EXHAUST MANIFOLD - Call your local BRP dealership |
| 4 | 420831849 | Gasket 1.0 mm |
| 5 | 293800090 | Sealant, Loctite, 80 ml |
| 6 | 514053654 | Rubber Bumper |
| 7 | 420938796 | Spring This part replaces 420938795. |
| 8 | M20087 | Washer |
| 9 | 605155509 | PIPE_TUNED ASSY - Call your local BRP dealership |
| 10 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
