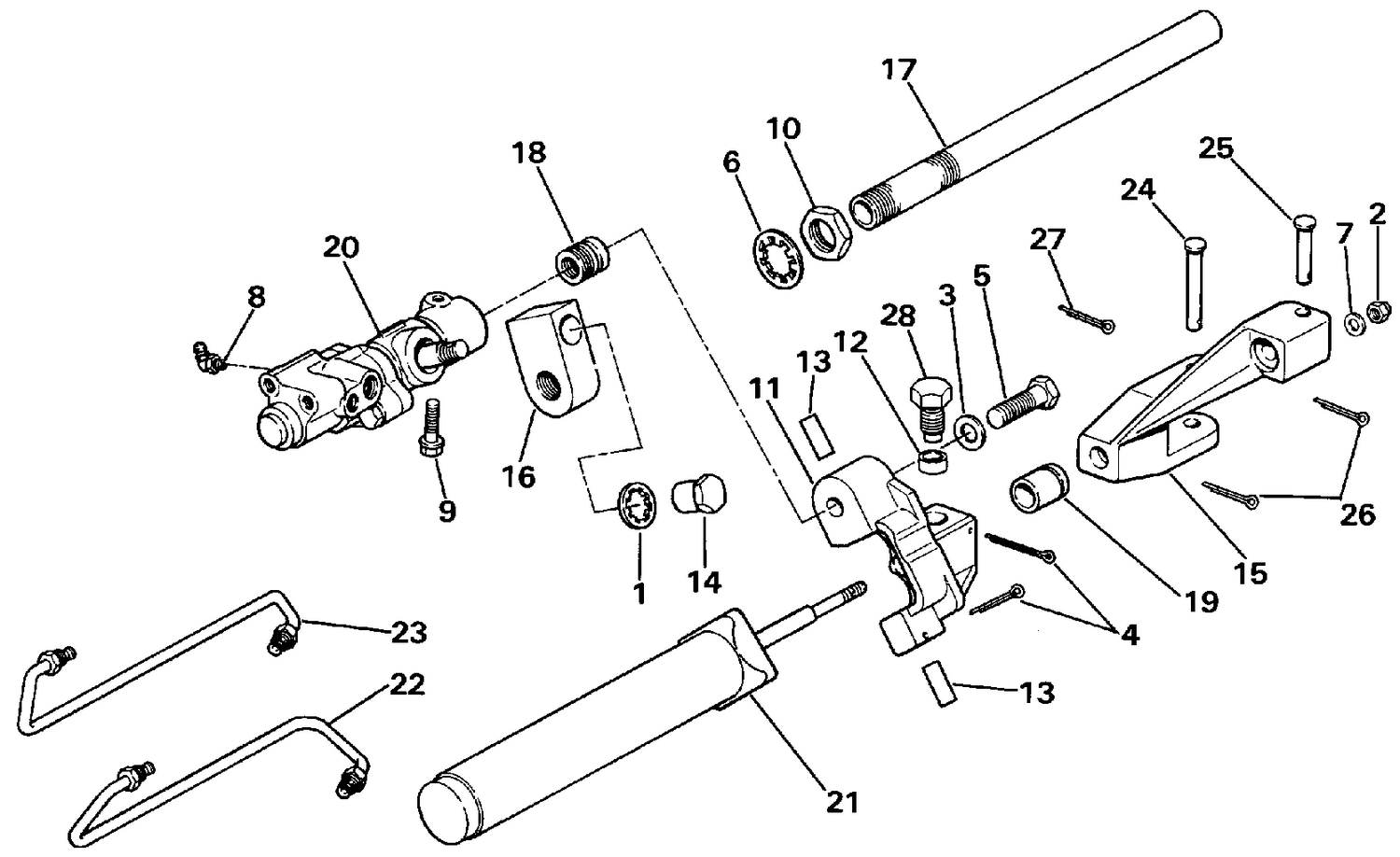

| Ref | Part Number | Description |
|---|
| 1 |
0306995 |
L'WASHER,Nut,tube guide to valve |
| 3 |
0309076 |
WASHER, Valve to bracket |
| 4 |
0309955 |
COT PIN,Prop nut |
| 5 |
0312176 |
SCREW, Actuator & valve |
| 6 |
0316954 |
LOCKWASHER |
| 9 |
3852478 |
SCREW, Prop shaft retainer This part replaces 0909937. |
| 10 |
0910027 |
NUT, Steering tube |
| 11 |
0984504 |
BRACKET, Cylinder & valve |
| 12 |
3852582 |
BUSHING This part replaces 0912013. |
| 13 |
0911758 |
PIN, Cylinder mounting |
| 14 |
0911759 |
LOCKNUT, Guide |
| 15 |
0911760 |
CLEVIS |
| 16 |
0911761 |
GUIDE, Valve |
| 17 |
0911762 |
TUBE, Steering cable |
| 18 |
0911765 |
ADAPTER, Valve mounting |
| 19 |
0911756 |
ADAPTOR, Valve mounting |
| 20 |
0983732 |
ACTUATOR & VALVE ASSY |
| 21 |
3850244 |
CYLINDER & VALVE This part replaces 0983914. |
| 22 |
0983915 |
OIL LINE, Lower |
| 23 |
0983916 |
OIL LINE, Upper |
| 24 |
3853265 |
Pin This part replaces 0911764. |
| 25 |
3853258 |
PIN, Cable to clevis This part replaces 0911763. |
| 27 |
0912239 |
COTTER PIN, Steering anchor |
