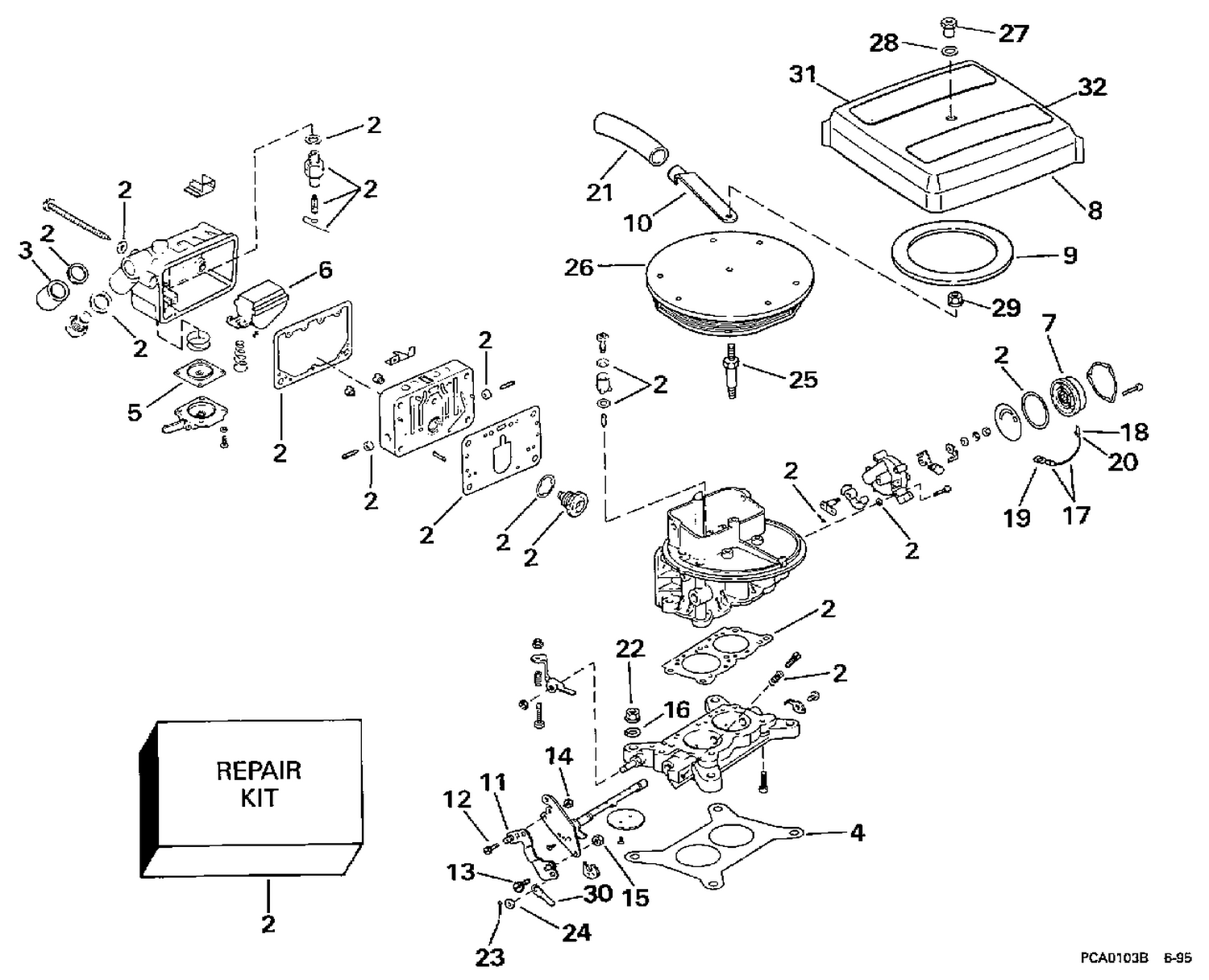

| Ref | Part Number | Description |
|---|
| 2 |
3854116 |
REPAIR KIT |
| 3 |
3854019 |
FILTER |
| 4 |
3853283 |
GASKET, Carb to manifold |
| 5 |
3854257 |
DIAPHRAGM, Accelerator pump |
| 6 |
3854018 |
FLOAT |
| 7 |
3853992 |
ELECTRIC CHOKE |
| 8 |
3850478 |
COVER, Flame arrestor |
| 9 |
3850458 |
PAD, Flame arrestor |
| 10 |
3852438 |
CONNECTOR, Crankcase vent |
| 11 |
3854833 |
THROTTLE LEVER & PIN |
| 12 |
3850415 |
SCREW, Throttle lever |
| 13 |
0319292 |
SCREW, Clamp This part replaces 3852154. |
| 14 |
3853758 |
NUT, Shift cable pin |
| 15 |
3852420 |
LOCKNUT, Throttle lever |
| 17 |
3853845 |
Lead Ay |
| 18 |
3854258 |
TERMINAL |
| 20 |
0914970 |
COVER, Terminal This part replaces 3854259. |
| 21 |
3853254 |
HOSE, Crankcase vent |
| 22 |
0316355 |
BUT, Carburetor mounting This part replaces 3852142. |
| 24 |
0329241 |
RONDELLE This part replaces 3852193. |
| 25 |
3852708 |
STUD, Flame arrestor |
| 26 |
3854026 |
FLAME ARRESTOR |
| 27 |
3852749 |
NUT, Cover |
| 29 |
3853561 |
NUT, Arrestor to carburetor |
| 30 |
3850950 |
ANCHOR, Cable |
| 31 |
3854981 |
DECAL, 3.0 GS, Volvo Penta |
| 3854086 |
3857982 |
CARBURETOR ASSEMBLY This part replaces 3854086. |
