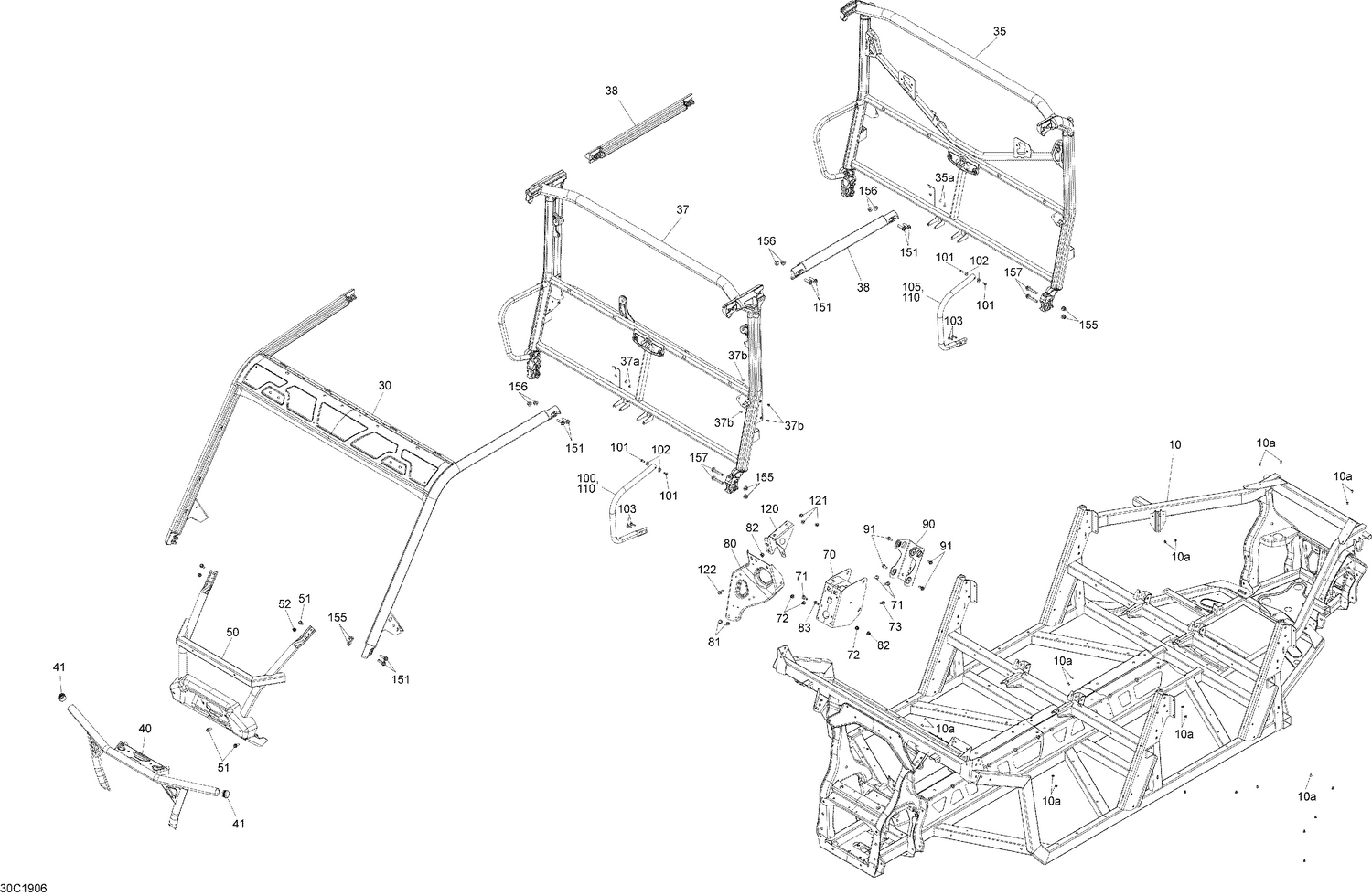

09- Frame - MAX
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715005596 | Frame Kit |
| 10a | 390402200 | Pop Rivet 3/16" |
| 30 | 715008358 | Front Cage Service Kit This part replaces 715005556. |
| 50 | 705207588 | Deep Black, Front Bumper This part replaces 705203999. |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 70 | 705206316 | Plate |
| 71 | 207682044 | Hex. Flange Screw M8 X 20 |
| 72 | 233281414 | Hex. Flange Elastic Nut M8 |
| 73 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 81 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 | 233281414 | Hex. Flange Elastic Nut M8 |
| 83 | 207682044 | Hex. Flange Screw M8 X 20 |
| 90 | 705209190 | Steering Column Support This part replaces 715005429. |
| 91 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 101 | 250000789 | Torx Truss M6X14 |
| 102 | 705202223 | Offset Washer |
| 103 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 120 | 705205171 | Shifting Module Support |
| 121 | 233281414 | Hex. Flange Elastic Nut M8 |
| 122 | 207682044 | Hex. Flange Screw M8 X 20 |
| 130 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 135 | 250100199 | Insert Half Hex Body M6 x 1.0 |
