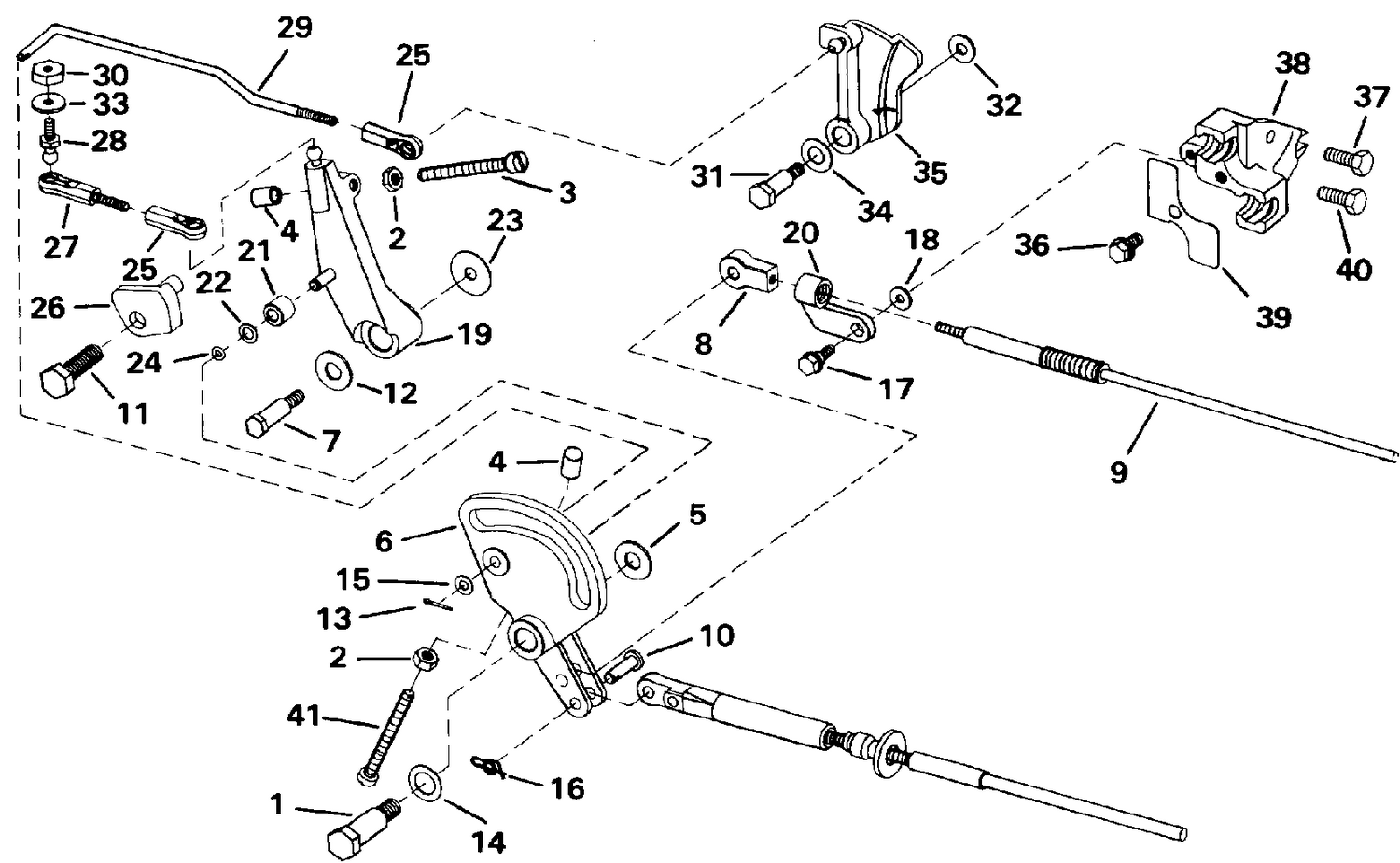

| Ref | Part Number | Description |
|---|
| 1 |
0206409 |
PIVOT SCREW |
| 3 |
0328699 |
LEVER, Spark control |
| 4 |
0318660 |
BUMPER, Screw, throttle stop |
| 5 |
0908398 |
WASHER |
| 6 |
0334064 |
LEVER, Cam |
| 7 |
0334238 |
VIS, levier vers cylindre |
| 12 |
0908398 |
WASHER |
| 14 |
0127386 |
RONDELLE This part replaces 0303913. |
| 19 |
0432015 |
LEVER Assy, Spark |
| 21 |
0432572 |
ROLLER & SLEEVE ASSY |
| 24 |
0308776 |
O-RING |
| 26 |
0338676 |
BUMPER, Idle stop This part replaces 0334736. |
| 27 |
0432684 |
SHELL |
| 27 |
0435530 |
SHELL Assy, Electric start |
| 29 |
0334788 |
LINK, Throttle cam |
| 31 |
0314136 |
VIS, came de papillon |
| 35 |
0432722 |
CAM-THROTTLE |
| 37 |
0306418 |
VIS, ancrage |
| 38 |
0333766 |
ANCHOR BLOCK |
| 39 |
0334175 |
RETAINER |
| 40 |
0300646 |
VIS, ancrage |
