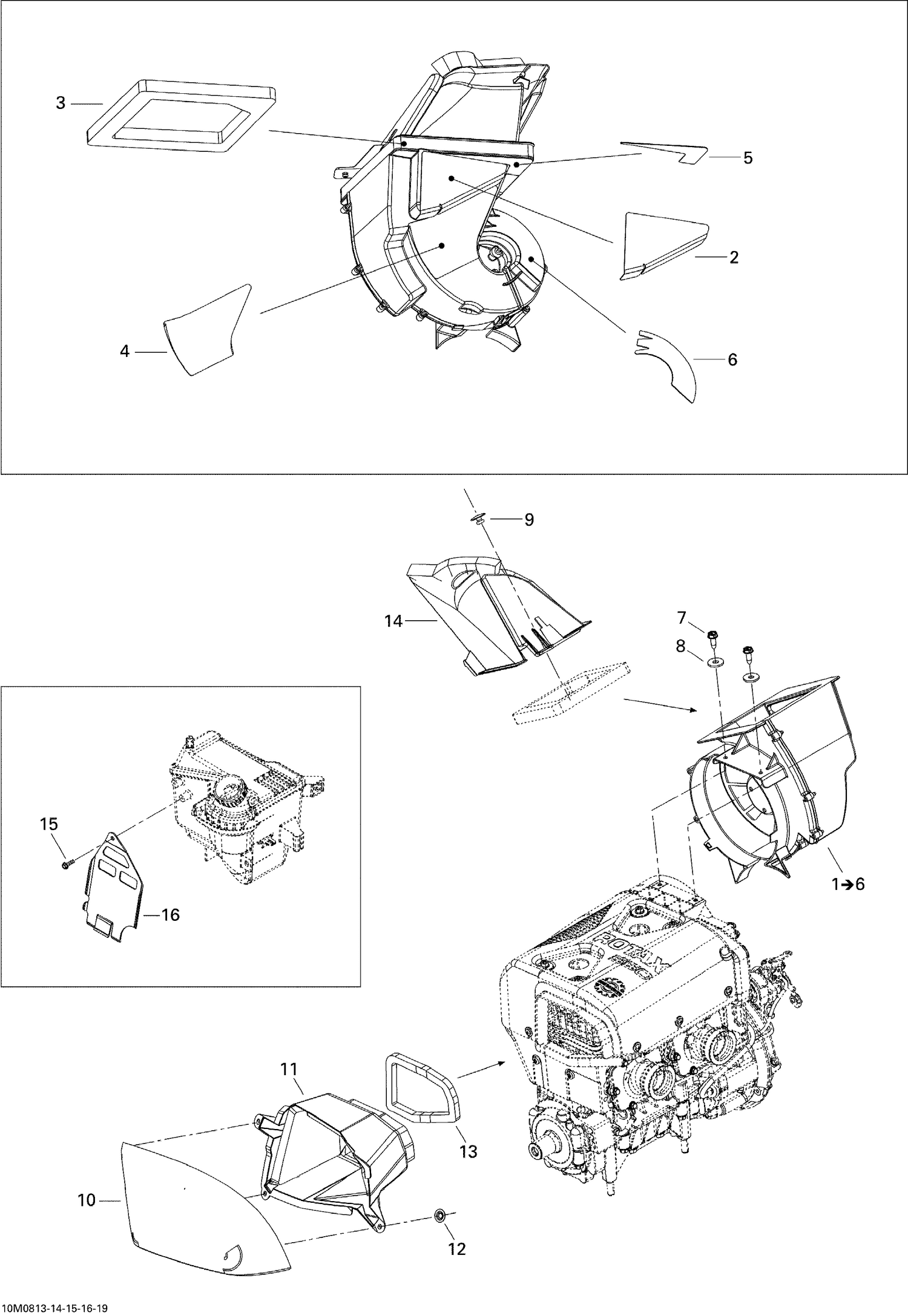

| Ref | Part Number | Description |
|---|
| 2 |
509000400 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 3 |
509000396 |
JONCTION FOAM - Call your local BRP dealership |
| 4 |
509000411 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 5 |
509000419 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 6 |
509000420 |
Reflective Sheet |
| 7 |
250000202 |
Self Tapping Screw #8 X 5/8 This part replaces 250000222. |
| 8 |
391301600 |
Washer |
| 9 |
293150103 |
Pop Rivet 3/16" |
| 11 |
509000398 |
AIR OUTLET DUCK - Call your local BRP dealership |
| 12 |
732610072 |
Push Nut |
| 13 |
508000450 |
Engine Foam |
| 14 |
509000378 |
AIR CHAMBER ASS'Y - Call your local BRP dealership |
| 15 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
