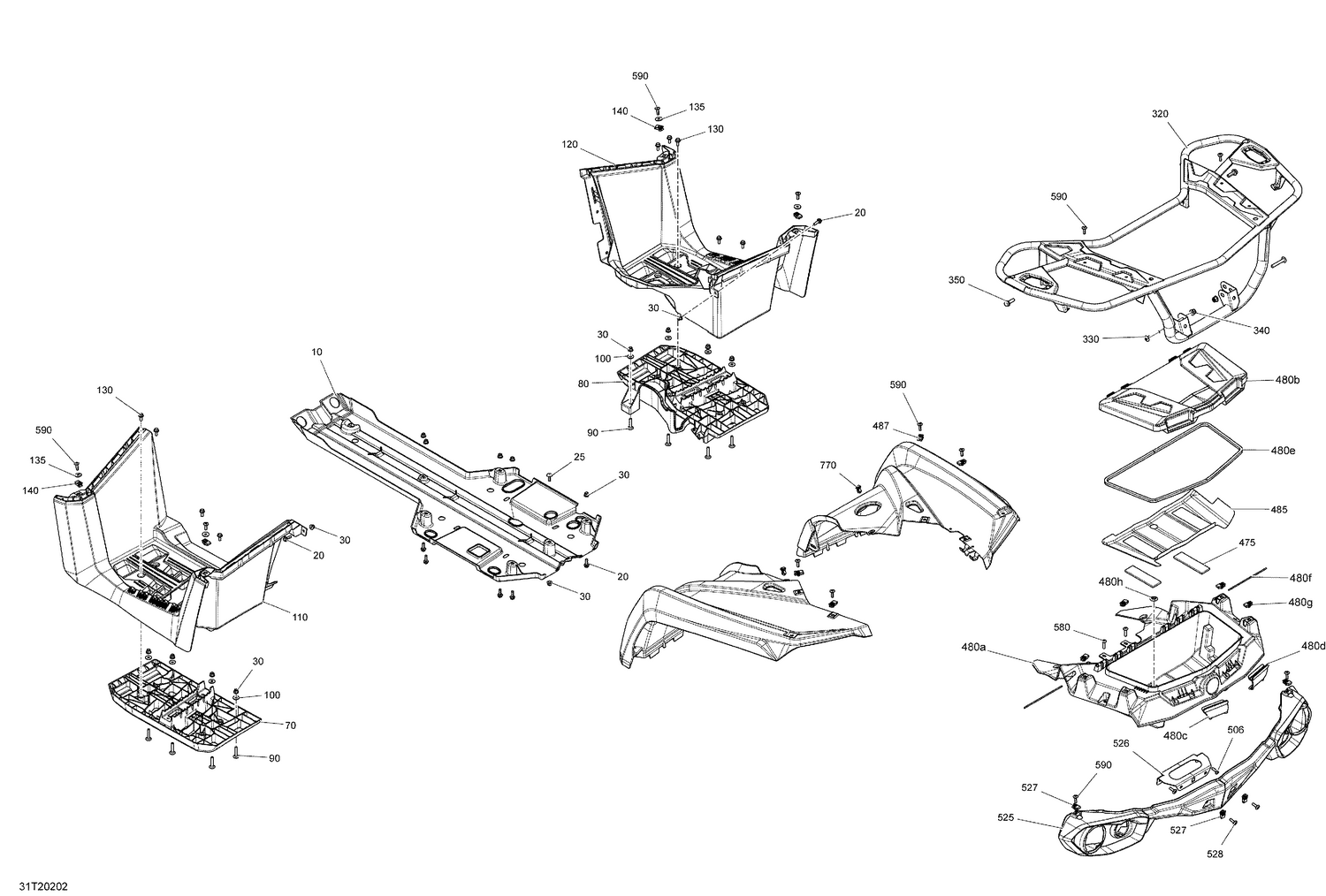

09- Body - Rear Section - PRO - PRO+
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007723 | RH Footrest |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 320 | 715005988 | Rear Luggage Rack Ass'y This part replaces 715002787. |
| 330 | 250000761 | Torx Truss Screw M8 X 50 |
| 340 | 233281464 | Elastic Flange Nut M8 |
| 350 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 475 | 293830163 | Rubber Pad |
| 480a | 715004412 | Storage Cover This part replaces 705007136. |
| 480b | 715004412 | Storage Cover |
| 480c | 705007448 | LH Box Rear Latch |
| 480e | 219704452 | Was 715900411 Neoprene Seal |
| 480f | 705007531 | Retaining Rod |
| 480g | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 480h | 414859400 | CAP - Call your local BRP dealership |
| 485 | 705007487 | Heat Deflector Sheet |
| 487 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 506 | 250000722 | Torx Screw M6 X 20 |
| 525 | 705011887 | Rear Facia |
| 526 | 705012280 | Bracket |
| 527 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 528 | 250000722 | Torx Screw M6 X 20 |
| 580 | 250000807 | Torx Truss Screw M6 X 25 |
| 590 | 250000722 | Torx Screw M6 X 20 |
