Parts Catalog

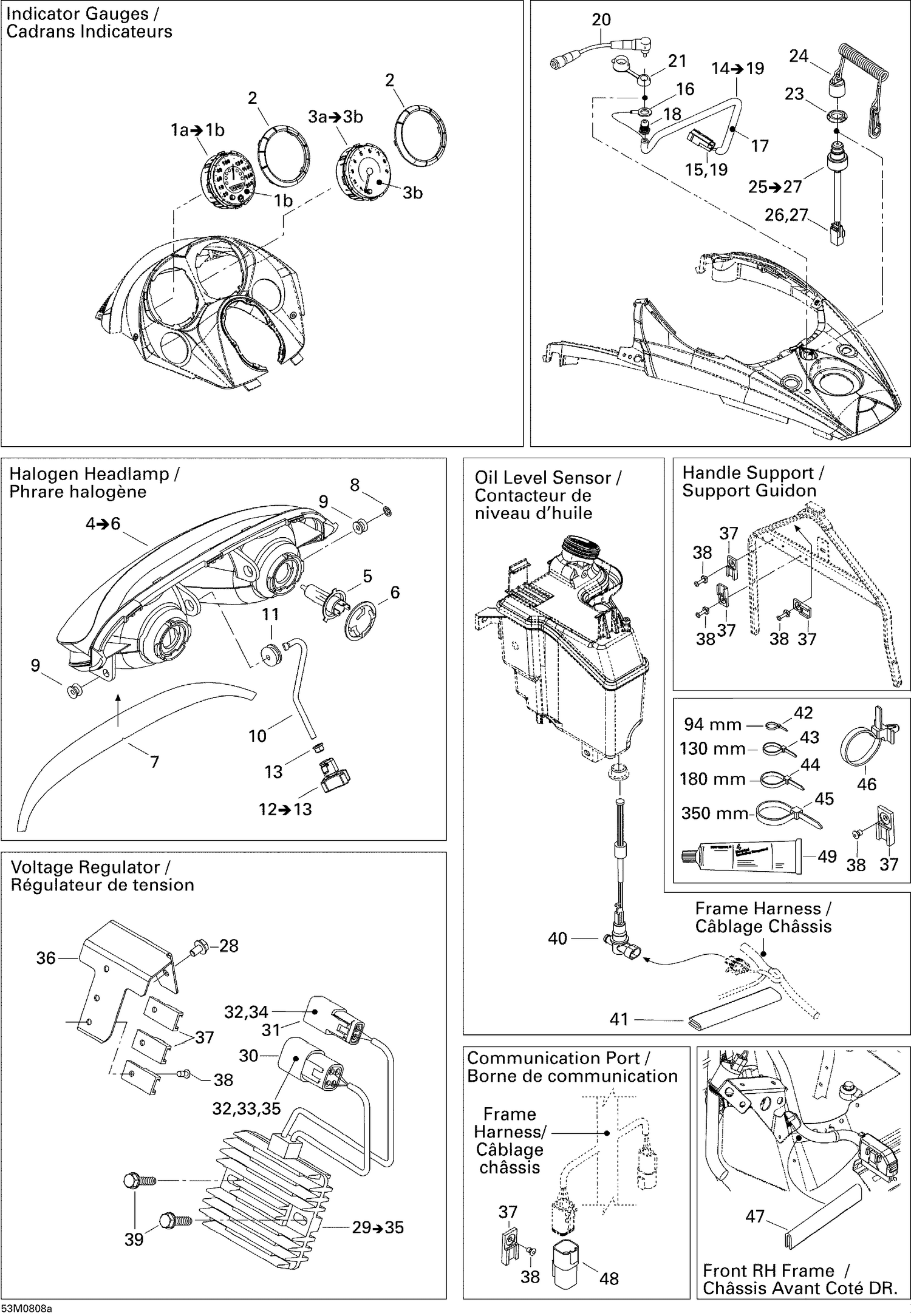

10- Electrical Accessories 1

Parts (42)

Ref	Part Number	Description
1b	415128938	REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership
2	515179005	Gauge Ring This part replaces 515176242.
3b	415129320	Lens This part replaces 415128937.
5	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
6	515176385	BULB HOLDER - Call your local BRP dealership
7	516001328	HEADLAMP DECAL - Call your local BRP dealership
8	732610072	Push Nut
9	515175760	HEADLAMP BUSHING - Call your local BRP dealership
10	515175521	ADJUSTER ROD - Call your local BRP dealership
11	415100800	Grommet - Call your local BRP dealership
13	233261414	Hex. Flange Elastic Nut M6 x 1.0
15	515175232	Male Terminal
16	515175172	OPEN BARREL - Call your local BRP dealership
17	219704424	Vinyl Tubing, Low Temp 3000Mm Long
18	415096100	Visor Plug
19	515175654	Male Terminal Housing, 2 Circuits
20	515175851	Extension
21	572103300	Cap
23	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
24	515178284	DESS This part replaces 515176461.
26	515175232	Male Terminal
27	515175494	Male Housing, 3 Circuits
28	210261050	Hex. Forming Screw M6 X 10 This part replaces 210261080.
30	278001477	FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
31	278001674	Mâle Terminal Housing, 2 Circuits
32	515175568	Male Terminal
33	278001478	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
34	278001672	Male Lock, 2 Circuits
35	293000052	Sealing Cap
36	515176191	HOUSING SUPPORT - Call your local BRP dealership
37	270000141	Clip This part replaces 515175917.
38	293150037	Avdel Rivet 3/16"
39	210262050	Hexagonal Head Screw This part replaces 210262080.
40	515176327	OIL LEVEL SENSOR - Call your local BRP dealership
41	509000263	TRIM - Call your local BRP dealership
42	293750001	Tie Wrap 94 mm
43	293750002	Tie Wrap 142 mm
44	414115200	Tie-Rap 180 mm
45	293750008	Tie Wrap 368 mm
46	293750009	Tie-Rap 173 mm
47	219704353	Was 271000110 Protection Trim
48	515176234	FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
