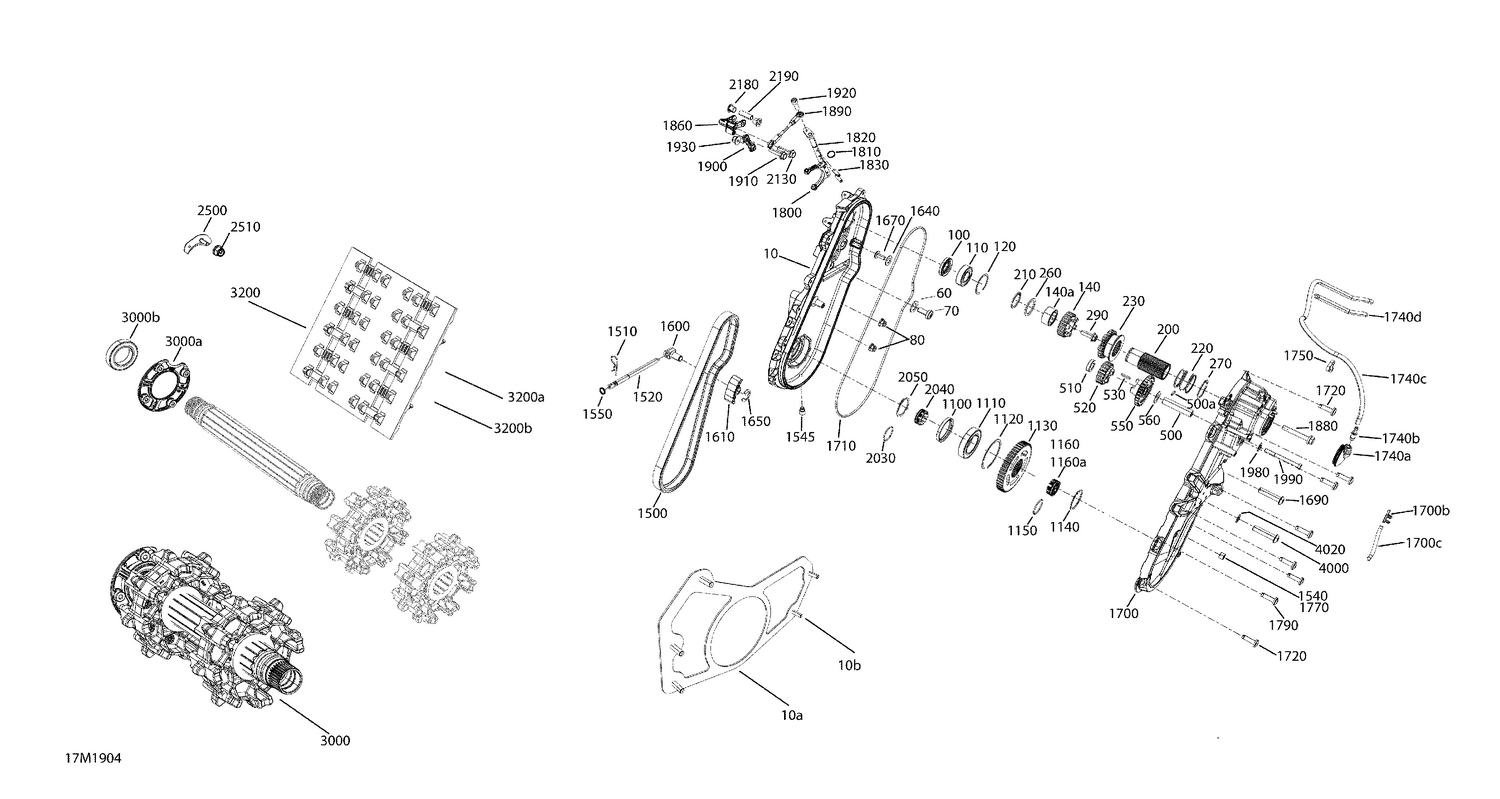

05- Drive
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 861805514 | Kit Plate Ass'y |
| 10b | 233261434 | Flange Elastic Nut M6 |
| 60 | 504082900 | Washer |
| 70 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 100 | 293200168 | Oil Seal |
| 110 | 293350115 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 140a | 293350123 | Bearing Needle |
| 200 | 504153500 | Connecting Shaft Ass'y |
| 210 | 293370183 | External Retaining Ring |
| 220 | 504153179 | Spring Release |
| 230 | 504153502 | Sliding Gear 27 Teeth Machined |
| 260 | 504152689 | Washer |
| 270 | 293370055 | Circlip |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 500a | 250400010 | Rolled Pin M3 X 10 |
| 510 | 504078700 | Ring |
| 520 | 504154086 | Sprocket 19 Teeth Ass'y This part replaces 504153736. |
| 530 | 570048600 | Alignement Rod |
| 550 | 504154087 | Gear Straight 29 Teeth Ass'y This part replaces 504153738. |
| 560 | 504077300 | Spacer |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160a | 504153697 | Magnetic Cap |
| 1500 | 504152631 | Drive Chain, 108 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1600 | 504153559 | Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1640 | 250200185 | Copper Washer |
| 1650 | 293370105 | Circlip |
| 1670 | 250000717 | Torx Head Screw M6 X 16 |
| 1690 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700b | 515178223 | Clip Connector |
| 1700c | 415130141 | Braided Sleeve |
| 1710 | 293300214 | O Ring This part replaces 293300199. |
| 1720 | 250001012 | Torx T-30 Pan HD Taptite M6X20 |
| 1740a | 504152930 | Cap |
| 1740b | 293710035 | Straight Fitting |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 1740d | 504153074 | Tube Protector This part replaces 504152900. |
| 1750 | 293750002 | Tie Wrap 142 mm |
| 1770 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1800 | 504154097 | Fork Ass'y This part replaces 504153590. |
| 1810 | 293300202 | O-Ring |
| 1820 | 504154096 | Reverse Axle This part replaces 504153508. |
| 1830 | 250400045 | Spring Pin M5 X 16 |
| 1860 | 504153532 | Machined Lever |
| 1880 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 1890 | 504153657 | Rod Actuating Adjustable Ass'y |
| 1900 | 504153707 | Rod Actuating Ass'y |
| 1910 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1920 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 1930 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1980 | 504082900 | Washer |
| 1990 | 207089044 | Hex. Screw M8 X 90 |
| 2030 | 293300201 | O-Ring |
| 2040 | 504153697 | Magnetic Cap |
| 2050 | 504152572 | Circlip |
| 2130 | 207562544 | Hex. Flange Screw M6 X 25 |
| 2180 | 504153735 | Bushing |
| 2190 | 504153648 | Spacer |
| 2500 | 504153695 | Bearing Housing Ass'y |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000a | 504153886 | Retaining Ring This part replaces 504153426. |
| 3000b | 293350059 | Ball Bearing |
| 3200a | 415129528 | Track Guide |
| 3200b | 504152651 | Cleat This part replaces 415129529. |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
