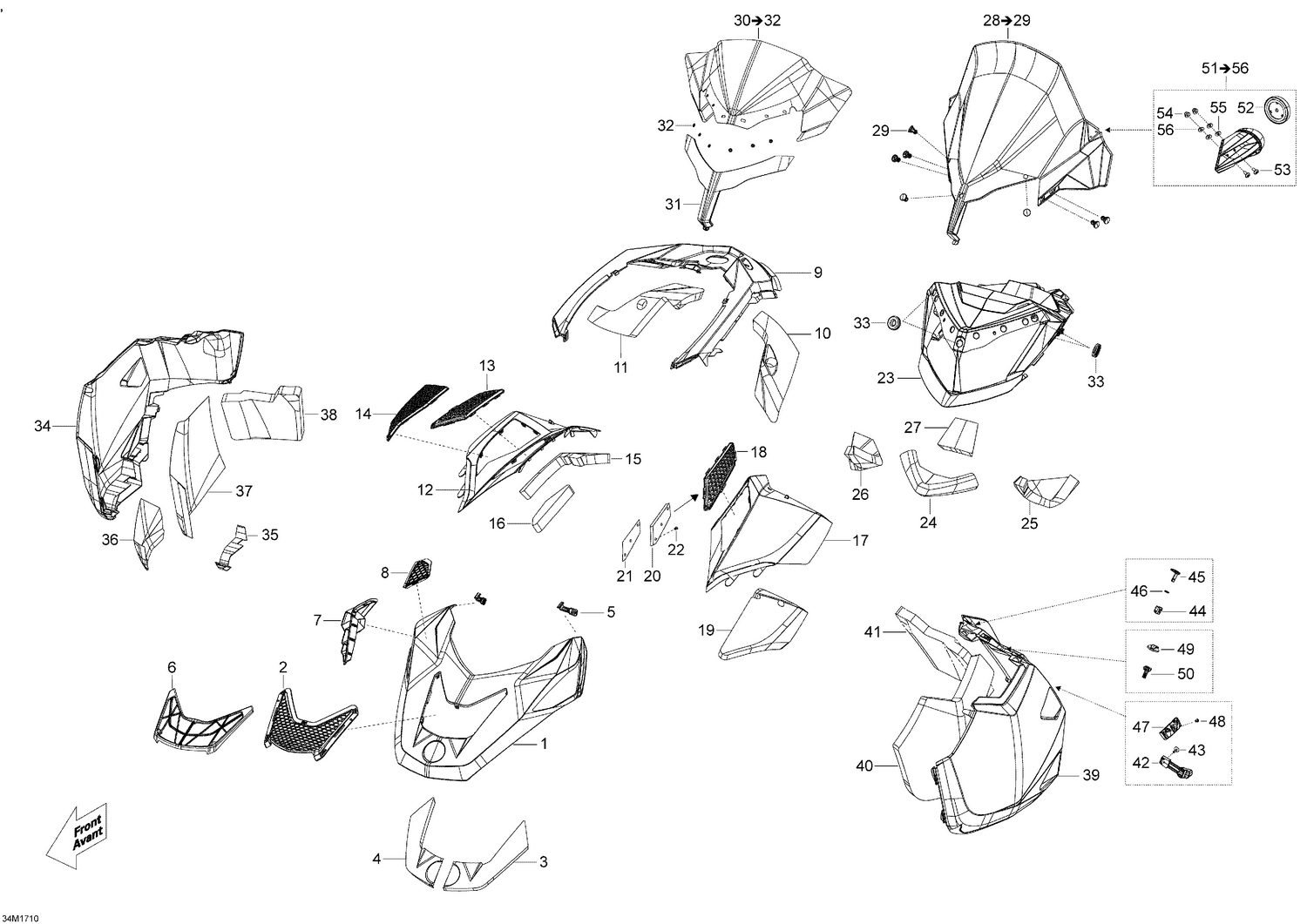

09- Hood — Parts Catalog

Ref	Part Number	Description
2	517304843	Hood Grille
3	517304330	Insulator
4	517304214	Insulator
5	517304289	Latch Pannel
10	517305644	Insulator
11	517304318	Insulator
13	517304015	RH Access Panel Grille
14	517304016	RH Lower Acces Grille
15	517304311	Insulator
16	517305987	Insulator
18	517303893	LH Access Panel Grille
19	517304313	Insulator
20	517305311	Insulator
21	502007312	Grille plate
22	414644300	Black, Dart
23	517304272	Indicator Support
24	517304314	Insulator
25	517304315	Insulator
26	517304316	Insulator
27	517304319	Insulator
31	517304712	Windshield Support
32	732610072	Push Nut
34	517306970	Black, RH Side Panel This part replaces 517304866.
35	517304215	Aluminium Foil
36	517304216	Aluminium Foil
37	517303890	RH Foam
38	517304310	RH Rear Foam
40	517303891	LH Foam
41	517304309	LH Rear Foam
42	517304572	Latch-Panel
43	293150108	Pop Rivet 3/16” This part replaces 293150108.
44	517304297	Handle Fastener Quarter-Turn
45	517304296	Quarter-Turn Handle
46	517304538	Locking Plate
47	517304497	Side Panel Support
48	293150211	Rivet
49	517304075	End Piece Latch
50	517306057	Latch-Panel
52	Not	Available As Spare Part - Mirror
53	250000721	Torx Truss Screw M6 X 16
54	232361493	Domed Nut M6
55	250200024	Rubber Washer 5 mm
