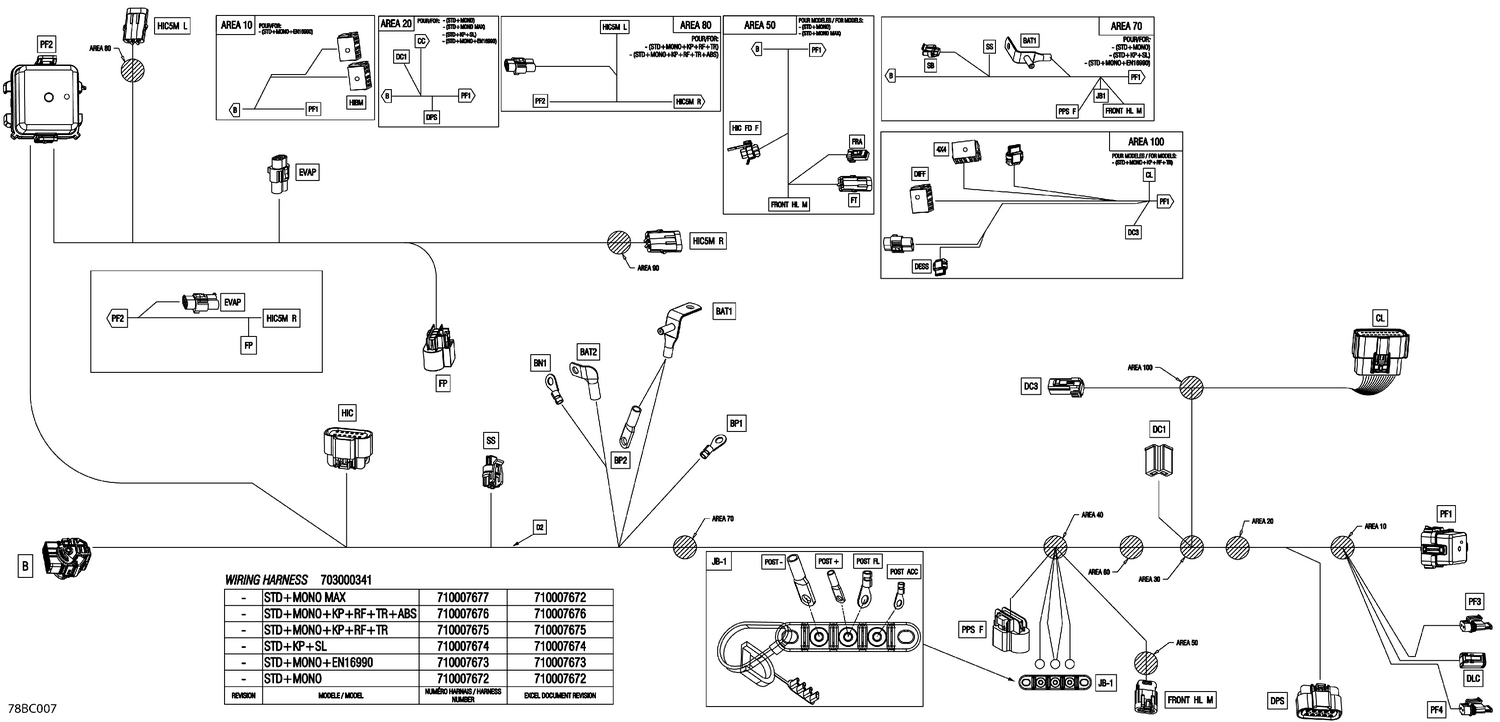

08- Electric - Main Harness - 710007677
Parts (98)
| Ref | Part Number | Description |
|---|---|---|
| B | 710001588 | Female Terminal Housing, 48 Circuits |
| B | 710001589 | Female Terminal |
| B | 710001591 | Cover, 48 positions |
| B | 710001592 | Plug |
| B | 710001593 | Plug |
| B | 710001727 | Female Terminal |
| B | 710001728 | Terminal |
| BN1 | 278001392 | Open Barrel Terminal |
| BP1 | 278000992 | Open Barrel |
| BP1 | 515177246 | Shrink Tubing, 6 mm |
| CC | 409209700 | Female Housing, 4 Circuits |
| CC | 515176621 | Wire Seal |
| CC | 710001340 | Female Terminal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| CL | 515178349 | Female Terminal 22 AWG |
| D2 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005952 | Female Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DESS | 710001161 | Housing |
| DESS | 710001162 | Lock |
| DESS | 710001163 | Wire Seal |
| DESS | 710001164 | Female Terminal |
| DESS | 710001225 | Cap |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005437 | Plug |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| EVAP | 409012100 | Female Terminal |
| EVAP | 710000402 | Wire Seal |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 278002186 | Wire Seal |
| FP | 278002187 | Female Terminal |
| FP | 710001222 | Lock |
| FP | 710001873 | Terminal This part replaces 710001765. |
| FP | 710003153 | Seal |
| FP | 710006214 | Lock |
| FRA | 515175658 | Female Housing, 2 Circuits |
| FRA | 710003896 | Female Terminal |
| FRONT | HL | M 409210100 Clip Bracket Connector (edge) 409210100 |
| FT | 278000217 | Female Housing, 2 Circuits |
| FT | 278000218 | Wire Seal |
| FT | 409004300 | Male Terminal |
| FT | 710000992 | Clip |
| HIBM | 710002001 | Housing Connector |
| HIBM | 710003047 | Terminal |
| HIBM | 710005491 | Female Terminal |
| HIBM | 710006074 | Label |
| HIC | FD | F 710007680 Connector Guard 710007680 |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | 710005671 | Housing Support |
| PF2 | 278000216 | Wire Seal |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 278003448 | Fuse Base Ass'y |
| PF2 | 278003553 | Fuse Cover |
| PF2 | 293300198 | Seal |
| PF2 | 710000918 | Female Terminal |
| PF2 | 710006792 | Fuse Box Decal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF4 | 278001325 | Fuse Holder |
| PF4 | 710000113 | Female Terminal |
| PF4 | 710000357 | Female Terminal |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001163 | Wire Seal |
| 4X4 | 710002000 | Housing |
| 4X4 | 710003047 | Terminal |
| 4X4 | 710005491 | Female Terminal |
| 4X4 | 710006075 | Label |
| 300 | 710007677 | Main Wiring Harness |
