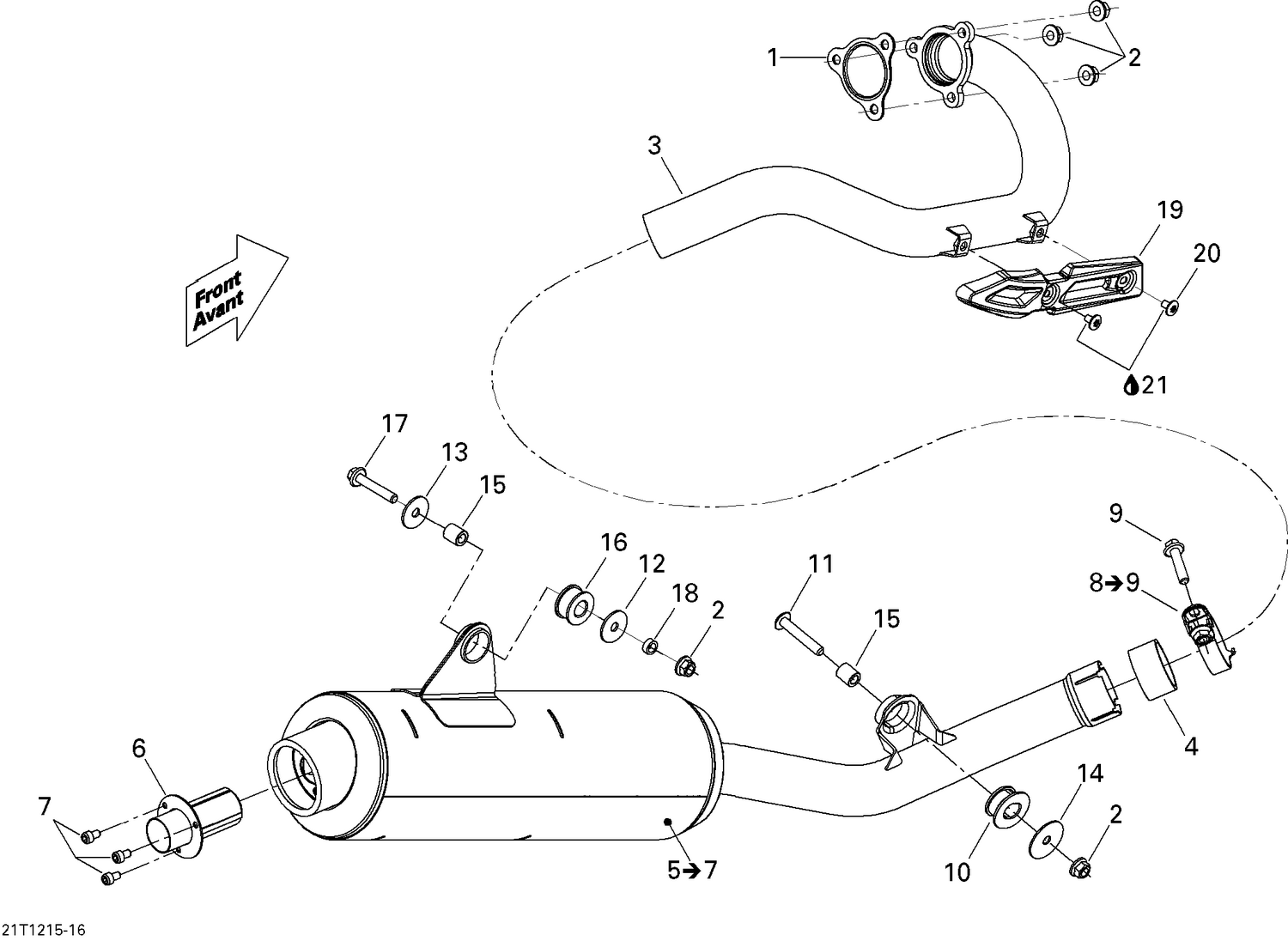

| Ref | Part Number | Description |
|---|
| 1 |
707600445 |
GASKET - Call your local BRP dealership |
| 2 |
233081436 |
Hex. Flange Nut |
| 3 |
707600401 |
PIPE_EXHAUST WELD - Call your local BRP dealership |
| 4 |
514054289 |
PIPE GASKET - Call your local BRP dealership |
| 6 |
707600468 |
SPARK SHIELD END PIECE - Call your local BRP dealership |
| 7 |
205051060 |
Socket Head Screw M5 X 10 |
| 9 |
207684034 |
Hex. Flange Screw M8 X 40 |
| 10 |
707600448 |
Rubber |
| 11 |
250000761 |
Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 12 |
250200073 |
FLAT WASHER - Call your local BRP dealership |
| 13 |
503032900 |
Washer |
| 14 |
707600525 |
WASHER - Call your local BRP dealership |
| 15 |
293900106 |
Bushing This part replaces 707600524. |
| 16 |
707603323 |
Vibration Damper This part replaces 707600701. |
| 17 |
207684534 |
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership |
| 18 |
293900067 |
BUSHING - Call your local BRP dealership |
| 19 |
707600432 |
HEAT SHIELD - Call your local BRP dealership |
