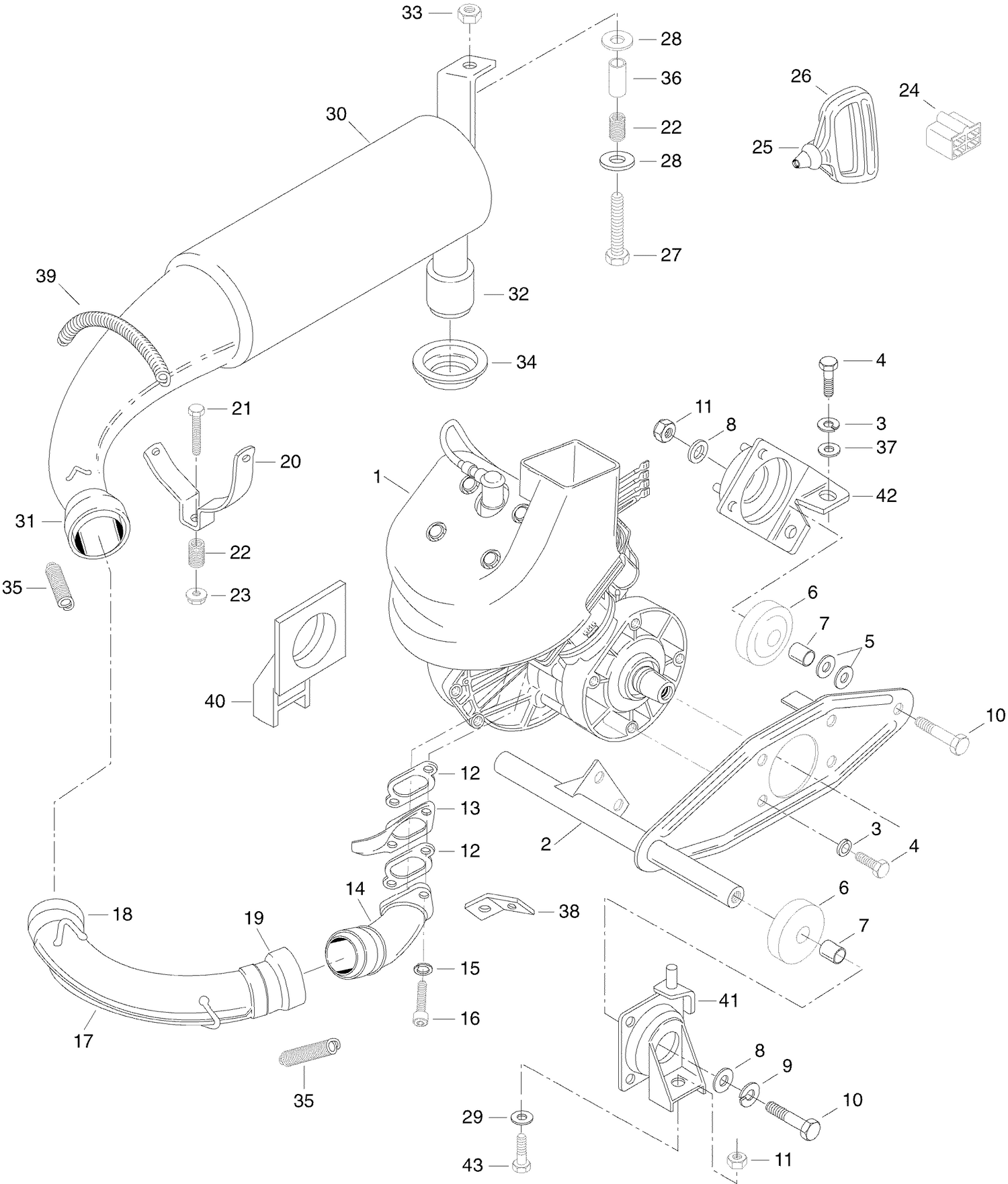

| Ref | Part Number | Description |
|---|
| 1 |
400205700 |
ROTAX Engine 277 |
| 2 |
512048000 |
Engine Support |
| 3 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 4 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 5 |
504039800 |
Shim |
| 7 |
517167100 |
BUSHING - Call your local BRP dealership |
| 8 |
506063100 |
Washer |
| 9 |
224701170 |
Lock Washer 10 mm |
| 10 |
207004044 |
Hex. Screw M10 X 40 This part replaces 222004065. |
| 11 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 12 |
420831847 |
Gasket 1 mm This part replaces 420831846. |
| 13 |
420975720 |
AIR DEFLECTOR - Call your local BRP dealership |
| 14 |
420978836 |
Exhaust Socket |
| 15 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 16 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 18 |
420878661 |
Male Ball Joint |
| 19 |
514021100 |
Female Ball Joint |
| 20 |
514017900 |
Muffler Support |
| 21 |
207064544 |
Hex. Screw M6 X 45 This part replaces 222064565. |
| 22 |
414913700 |
SPRING - Call your local BRP dealership |
| 23 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 24 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 25 |
420960415 |
Rubber Buffer |
| 26 |
420852176 |
Starter Handle |
| 27 |
207085044 |
Hex. Screw M8 X 50 This part replaces 222085065. |
| 28 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 29 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 31 |
420973530 |
Female Ball Joint |
| 32 |
514026501 |
Ring |
| 33 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 34 |
570141300 |
Exhaust Grommet |
| 35 |
517182100 |
SPRING - Call your local BRP dealership |
| 36 |
514035800 |
Guide |
| 37 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 38 |
420953170 |
SPRING BRACKET - Call your local BRP dealership |
| 39 |
517268300 |
Spring |
| 40 |
512048300 |
RH Welded Support |
| 41 |
512048400 |
LH Support |
| 42 |
512050400 |
WELDED SUPPORT - Call your local BRP dealership |
