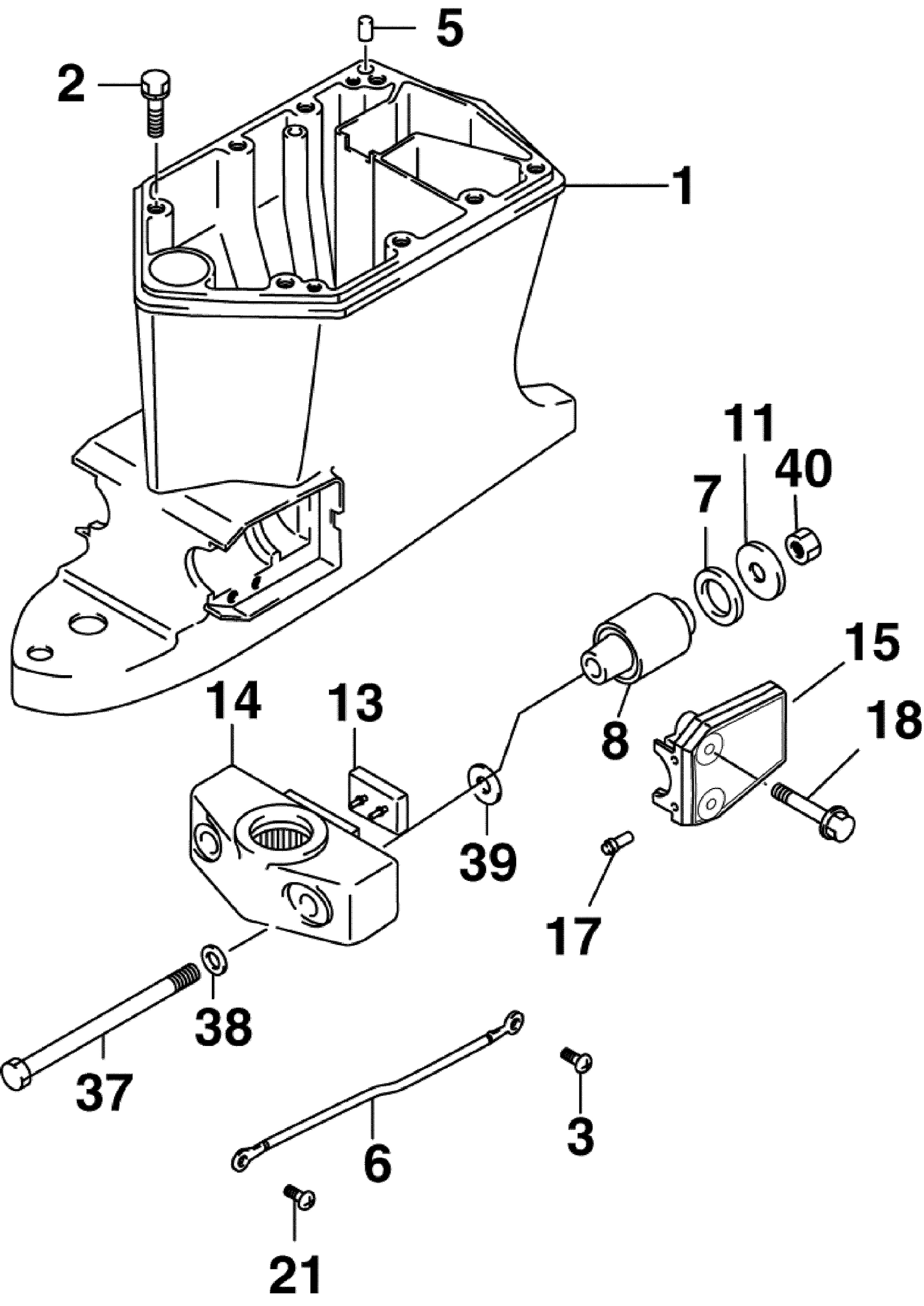

EXHAUST HOUSING
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036735 | HOUSING, Driveshaft |
| 2 | *5035792 | BOLT, (10X45mm) |
| 3 | 5030407 | SCREW (5X8) |
| 5 | 5030511 | PIN |
| 6 | 5030821 | BONDING LEAD, Exh. hsg. to bracket |
| 7 | 5030885 | DAMPER, REVERSE STOP LWR |
| 8 | 5035807 | MOUNT, Lower |
| 11 | 5036602 | WASHER (12.2X40X3.0mm) |
| 13 | 5036736 | MOUNT, Lower thrust |
| 14 | 5036737 | BRACKET, Lower mount |
| 15 | 5036738 | COVER, Lower mount |
| 17 | 5030902 | PIN |
| 18 | 5034787 | BOLT |
| 21 | 5030407 | SCREW (5X8) |
| 37 | 5036739 | BOLT, LOWER MOUNT |
| 38 | 5036613 | WASHER |
| 39 | 5036603 | WASHER |
