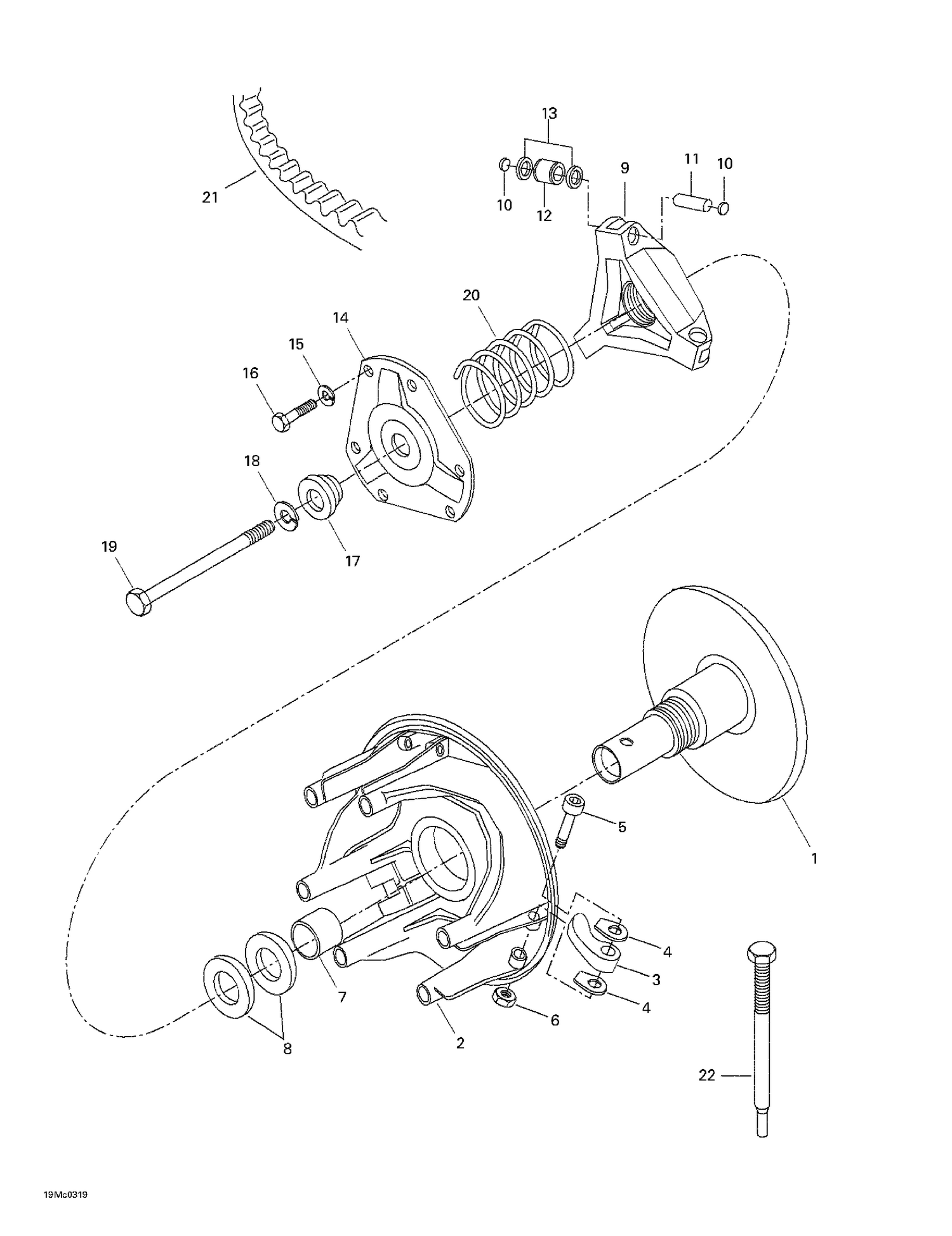

| Ref | Part Number | Description |
|---|
| 1 |
M140028 |
Inner Flange |
| 2 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 3 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 4 |
Not |
Available As Spare Part - Pivot washer |
| 5 |
Not |
Available As Spare Part - Allen set screw |
| 6 |
Not |
Available As Spare Part - Hex. nut |
| 7 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 8 |
M140022 |
Spider Shim |
| 9 |
M140017 |
Spider Ass'y |
| 10 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 11 |
M140020 |
PIN - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 13 |
M140019 |
STOPPER WASHER - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 15 |
Not |
Available As Spare Part - Lock washer |
| 16 |
Not |
Available As Spare Part - Hex. screw |
| 17 |
M140013 |
PIVOT WASHER - Call your local BRP dealership |
| 18 |
M20090 |
Conical Spring Washer |
| 19 |
417113800 |
BOLT - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - NLA Order 417011027 Clutch ass'y |
| 21 |
414633800 |
Drive Belt |
