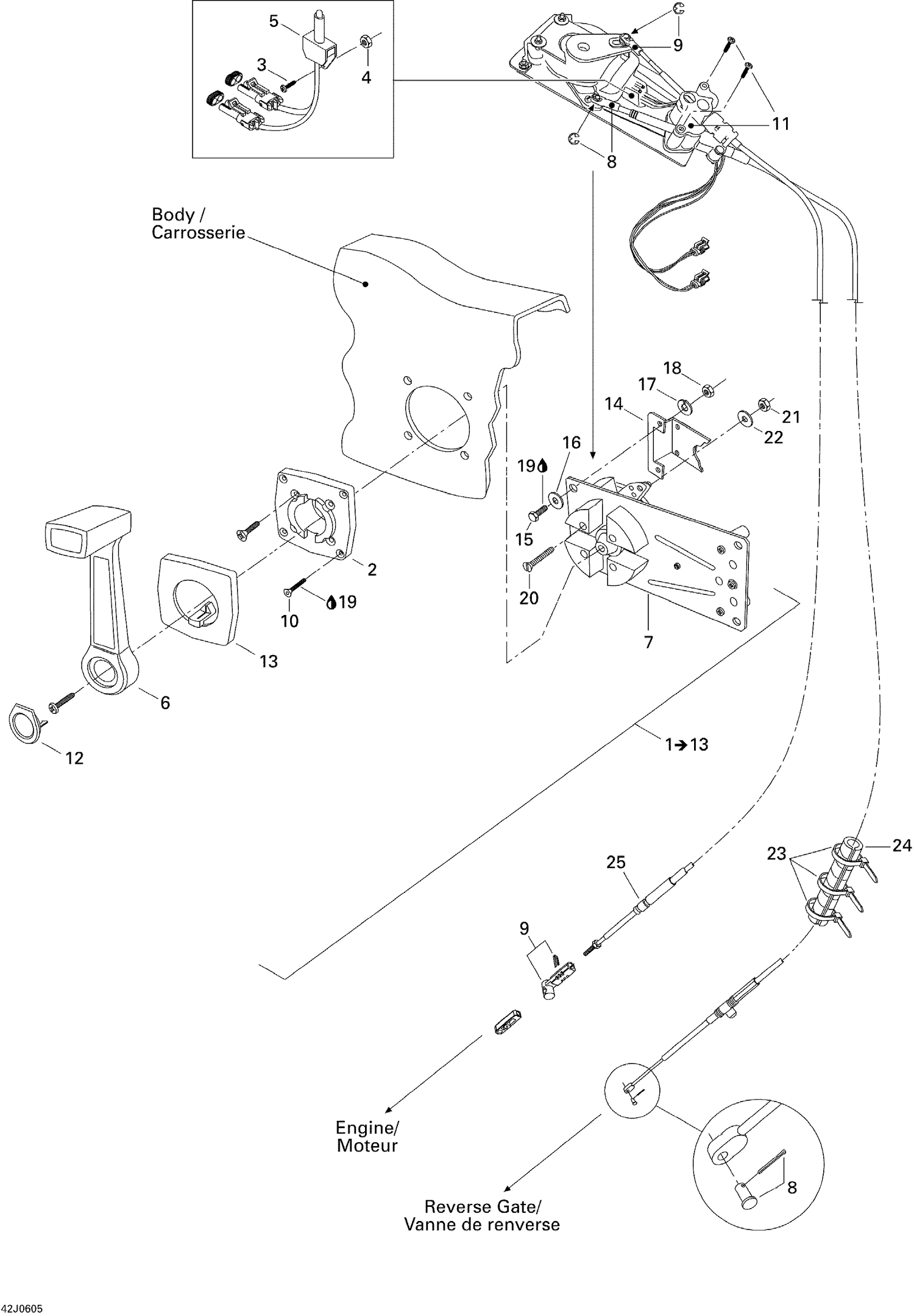

05- Control Handle
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204390322 | INNER FLANGE - Call your local BRP dealership |
| 3 | 204100103 | Screw M3 X 10 |
| 4 | 204100111 | Locking Nut M3 |
| 5 | 204390489 | Double Neutral Switch |
| 6 | 204390316 | Shifter Handle |
| 7 | 204390317 | Shifter Mecanism |
| 8 | 204390318 | Cable Retainer Kit |
| 9 | 204390319 | CABLE RETAINER KIT - Call your local BRP dealership |
| 10 | 205354060 | SCREW M5 X 40 - Call your local BRP dealership |
| 11 | 295500919 | Shift Rod Cable Kit |
| 12 | 204390321 | LEVER CAP - Call your local BRP dealership |
| 13 | 204390314 | OUTER FLANGE - Call your local BRP dealership |
| 14 | 204390466 | Throttle Stop |
| 15 | 207161660 | Hex. Screw M6 X 16 |
| 16 | 234060600 | FLAT WASHER 6 MM - Call your local BRP dealership |
| 17 | 234161601 | Lock Washer Helical M6 |
| 18 | 232061600 | Hex. Nut M6 |
| 19 | 293800060 | Loctite 243, 10 ml |
| 20 | 208454060 | Phillips Screw M5 X 40 |
| 21 | 232551600 | Hex. Elastic Nut M5 |
| 22 | 234062600 | Flat Washer M6, Stainless |
| 23 | 414115200 | Tie-Rap 180 mm |
| 24 | 204550028 | SLIT CONDUIT, METER - Call your local BRP dealership |
