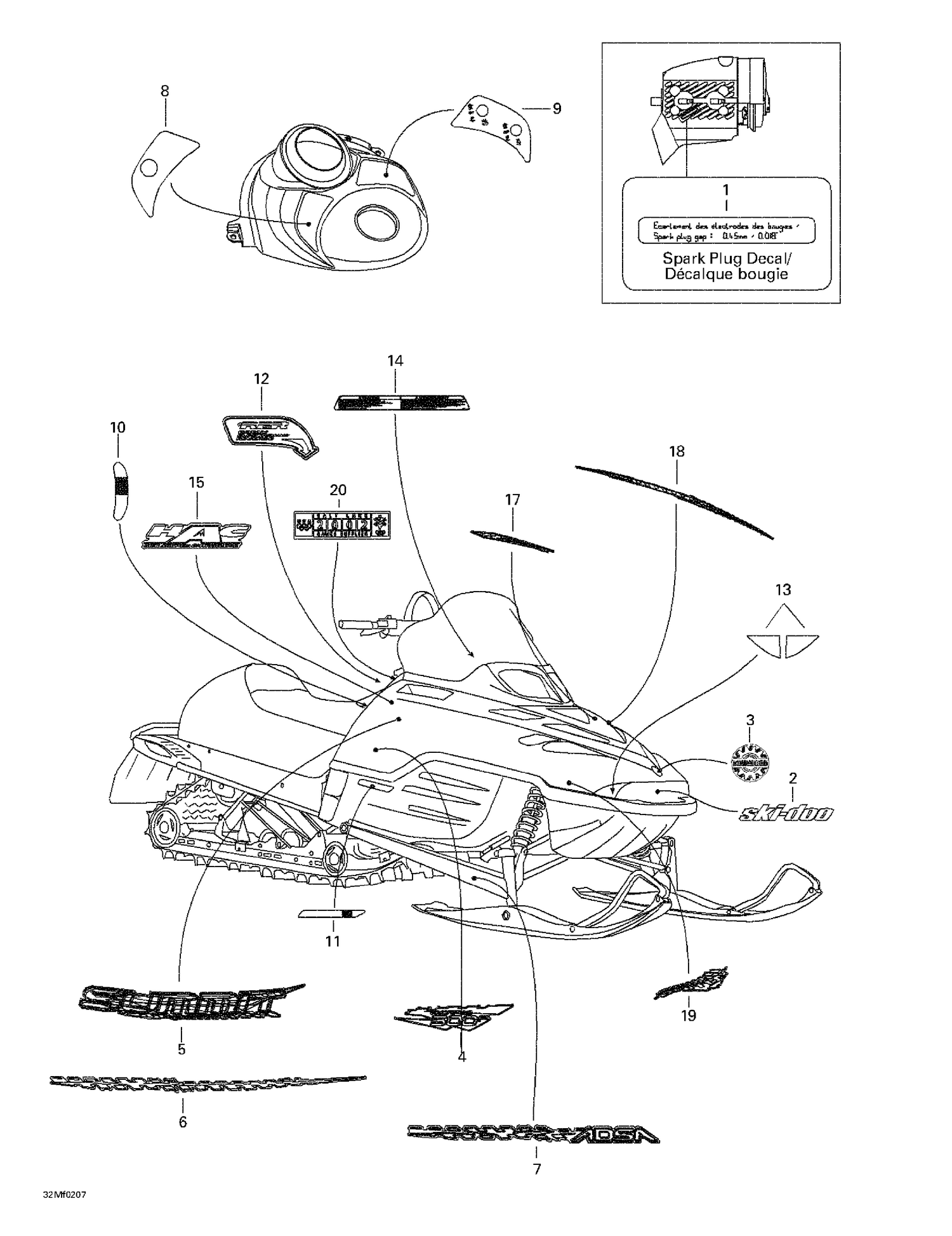

09- Decals
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516000986 | Spark Plug Decal |
| 2 | 516000261 | Ski-Doo Decal |
| 3 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 4 | 415128356 | Decal - <<ROTAX 500>> |
| 5 | 415128184 | Kit - Side Decal |
| 6 | 415128187 | Kit - Lower Side Decal |
| 7 | 415128188 | Kit - Arm Decal |
| 8 | 516001256 | Ignition Decal |
| 9 | 516000227 | Heat Thumb Decal |
| 10 | 516000224 | Decal - Reflector Decal |
| 11 | 415064400 | Decal - RH Reflector |
| 12 | 516001002 | Rer Decal |
| 13 | 415127656 | Reflector Kit |
| 14 | 516001221 | Security Label, Starting |
| 15 | 516001013 | H.A.C. Decal |
| 16 | 415128357 | Hood Decal Kit (not shown) |
| 17 | 415128191 | Front Decal |
| 18 | 415128193 | Upper Lateral Decal |
| 19 | 415128195 | Inferior Front Decal |
| 415064401 | Décalque | De Réflecteur GA 415064401 |
