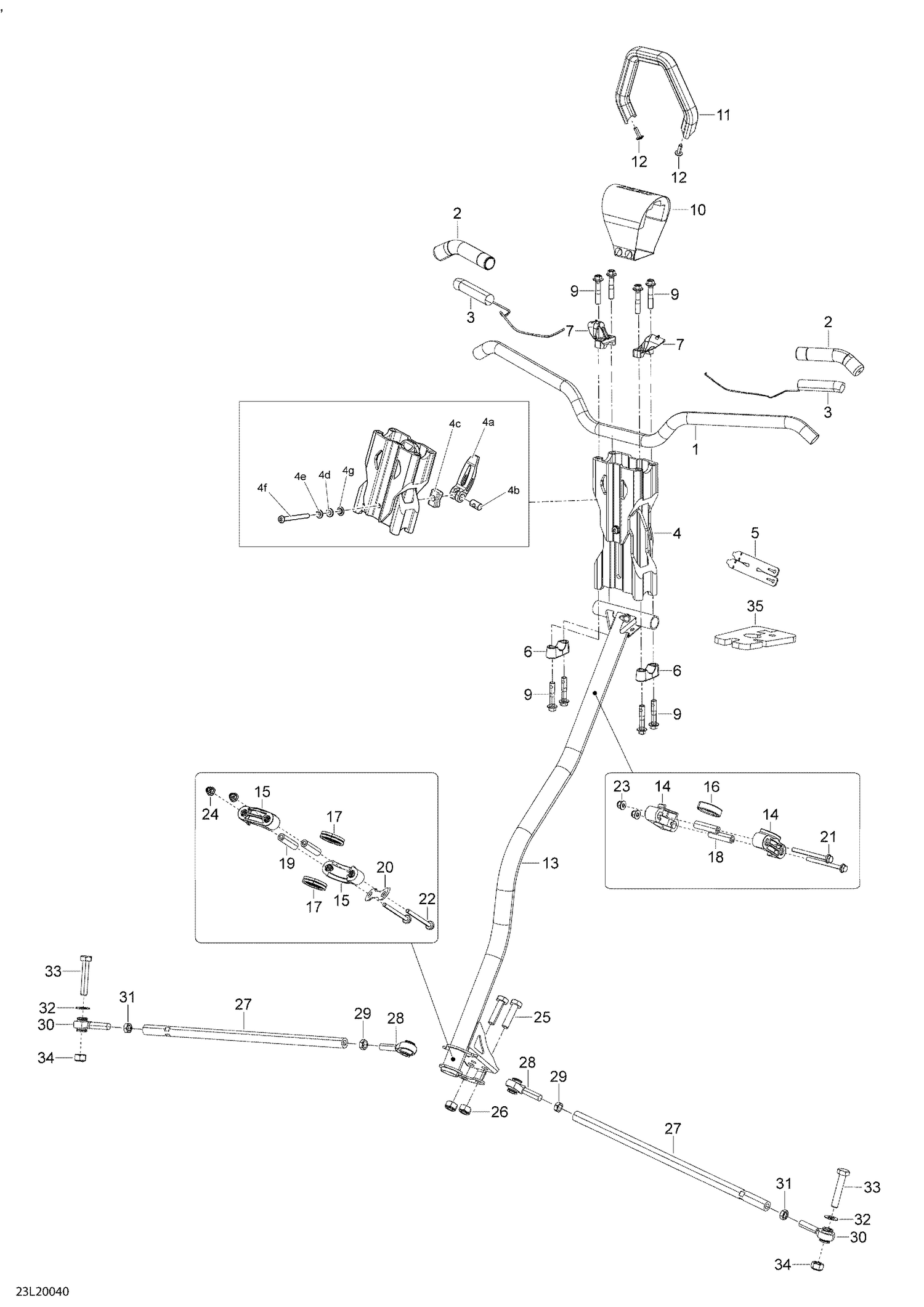

06- Steering - System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152762 | Black Handle Bar |
| 2 | 506152483 | Grip |
| 3 | 506152428 | R.H. / L.H. Heating Element |
| 4a | 506152646 | LEVER - Call your local BRP dealership |
| 4b | 506152647 | Lever Pin |
| 4c | 506153045 | Compression Bloc |
| 4d | 234061600 | Flat Washer M6, Stainless |
| 4e | 234161601 | Lock Washer Helical M6 |
| 4f | 205566060 | Socket Head Screw |
| 4g | 732610072 | Push Nut |
| 5 | 293850118 | Rubber Strap Double 80/90 |
| 6 | 506152751 | Steering Support |
| 7 | 506152942 | LH Support |
| 7 | 506152943 | RH Support |
| 9 | 250000285 | Hex. Flanged Screw M8 x 40 |
| 10 | 506153112 | Steering Pad |
| 11 | 506152460 | Steering strap |
| 12 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 13 | 506152962 | Steering Column |
| 14 | 506152508 | Upper Half-Housing |
| 15 | 506152217 | Lower Half Housing |
| 16 | 506152509 | Upper Anti-Vibration Gasket |
| 17 | 506152518 | Lower Vibration Ring |
| 18 | 506152297 | Housing Bushing |
| 19 | 506152388 | Lower Housing Bushing |
| 20 | 506152389 | Stopper Plate |
| 21 | 250001027 | Hex. Flanged Screw M6 X 70 |
| 22 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 23 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 |
| 25 | 207004044 | Hex. Cap Screw M10 x 40 |
| 26 | 232500416 | Elastic Stop Nut M10 |
| 27 | 506152436 | Tie Rod |
| 28 | 506152081 | Ball Joint (LH Thread) |
| 29 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 30 | 506152019 | Ball Joint (RH Thread) |
| 31 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 32 | 506152582 | Washer |
| 33 | 207004544 | Hex. Screw M10 X 45 |
| 34 | 233201414 | Hex. Flanged Elastic Nut M10 |
