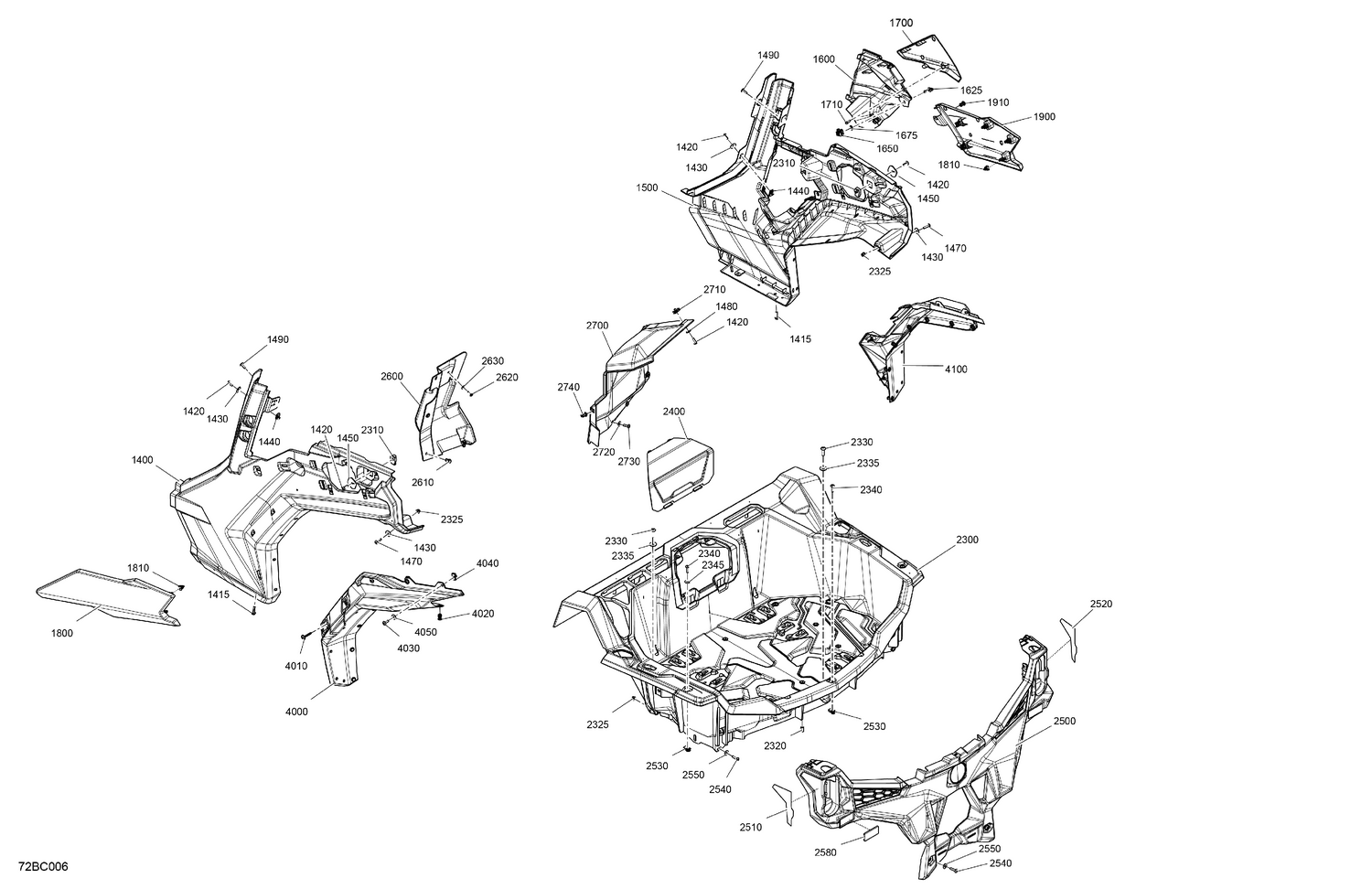

07- Body - Rear Section
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1400 | 705015487 | Macchiato Satin, LH Rear Fender |
| 1415 | 207662554 | Hex. Flange Screw M6 X 25 |
| 1420 | 250000722 | Torx Screw M6 X 20 |
| 1430 | 250200162 | Flat Washer M6.6 X 22 |
| 1440 | 250100198 | Panel Nut M6 X 1.0 |
| 1450 | 705003841 | Support Plate |
| 1470 | 250000807 | Torx Truss Screw M6 X 25 |
| 1480 | 234062670 | Stainless Steel Flat Washer |
| 1490 | 414644300 | Black, Dart |
| 1500 | 705015488 | Macchiato Satin, RH Rear Fender |
| 1600 | 705016127 | Air Filter Acces Door |
| 1625 | 708400278 | Quarter Turn |
| 1650 | 708400285 | Clip |
| 1675 | 708400286 | Washer |
| 1700 | 705015591 | Macchiato Satin, Acces Panel Trim |
| 1710 | 250000720 | Torx Screw K50 X 16 |
| 1800 | 705015596 | Macchiato Satin, LH Open Carrier Trim |
| 1810 | 517306478 | Clip |
| 1900 | 705015601 | Macchiato Satin, LH Open Carrier Trim |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 2300 | 705016885 | Rear Box |
| 2310 | 250100224 | Panel Nut M6 X 1.0 |
| 2320 | 250100207 | Hex. Coupling Nut M6 |
| 2325 | 233161464 | Hex. Elastic Flange Nut M6 |
| 2330 | 250000745 | Hex Torx Truss M8 X30 |
| 2335 | 234082670 | Stainless Steel Flat Washer |
| 2340 | 250000807 | Torx Truss Screw M6 X 25 |
| 2345 | 234062670 | Stainless Steel Flat Washer |
| 2400 | 715006766 | Access Cover Kit |
| 2500 | 705011426 | Rear Fascia This part replaces 705016944. |
| 2510 | 704906815 | LH Rear Reflector |
| 2520 | 704906816 | RH Rear Reflector |
| 2530 | 250100198 | Panel Nut M6 X 1.0 |
| 2540 | 250000807 | Torx Truss Screw M6 X 25 |
| 2550 | 234062670 | Stainless Steel Flat Washer |
| 2580 | 520001820 | Red Reflector |
| 2600 | 705015886 | LH Rear Wheel Arch Protector |
| 2610 | 293150230 | Tuflok Plastic Rivet |
| 2620 | 250000720 | Torx Screw K50 X 16 |
| 2630 | 250200025 | Washer M5 |
| 2700 | 705016135 | RH Rear Wheel Arch Protector |
| 2710 | 250100198 | Panel Nut M6 X 1.0 |
| 2720 | 234062670 | Stainless Steel Flat Washer |
| 2730 | 250000722 | Torx Screw M6 X 20 |
| 2740 | 293150230 | Tuflok Plastic Rivet |
| 4000 | 705016942 | LH Rear Mud Guard |
| 4010 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 4020 | 293150230 | Tuflok Plastic Rivet |
| 4030 | 250000722 | Torx Screw M6 X 20 |
| 4040 | 250100198 | Panel Nut M6 X 1.0 |
| 4050 | 234062670 | Stainless Steel Flat Washer |
