Parts Catalog

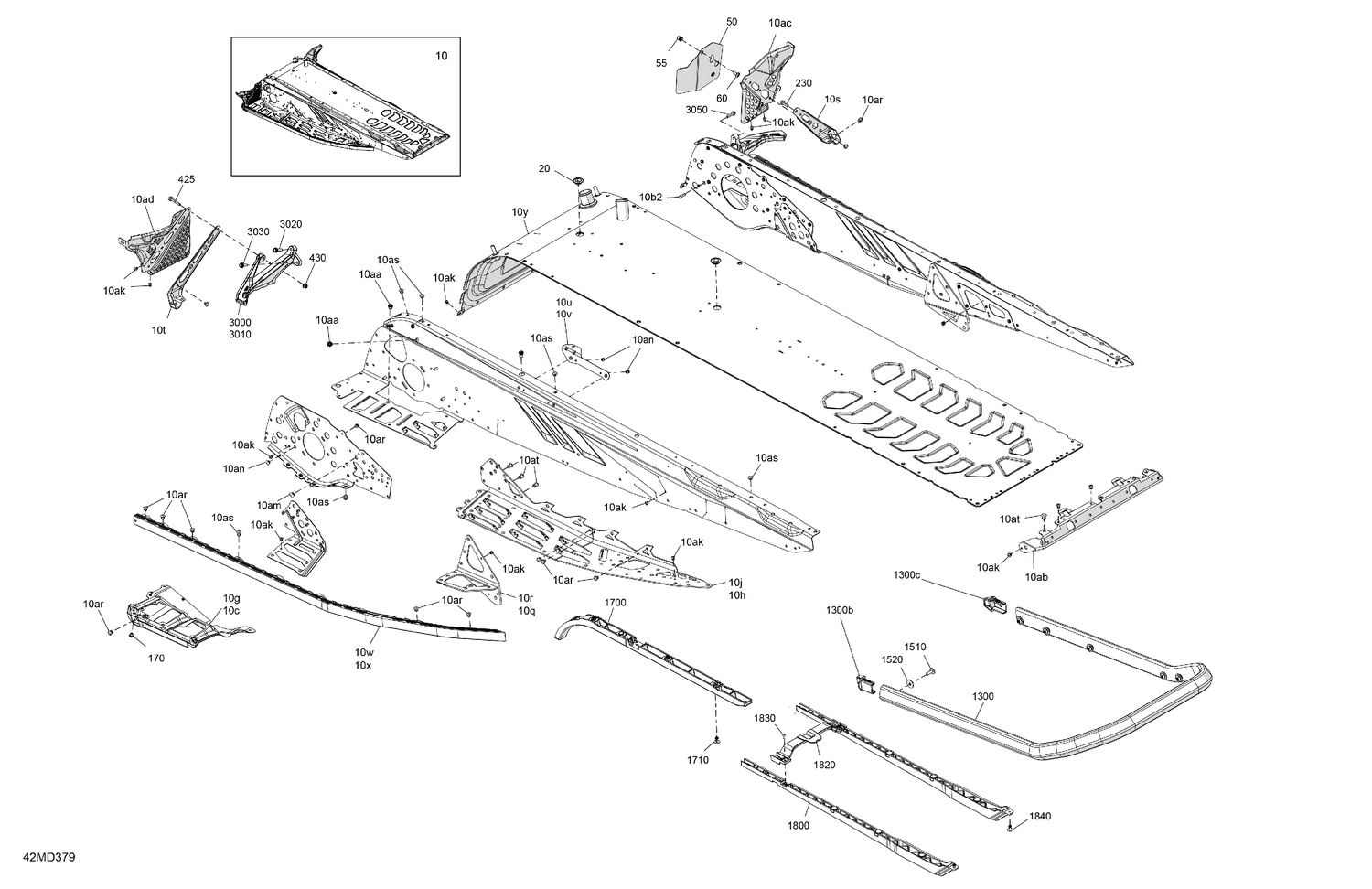

06- Frame - System - Rear Section

Parts (46)

Ref	Part Number	Description
10aa	605636003	Clinch Nut M6 Hexsert
10ab	518328990	Rear Cap
10ac	518334509	RH Footrest
10ad	518334305	LH Foot Protector
10ak	390909100	Avex Rivet
10am	293150163	Rivet Hucklok
10an	390909200	Avex Rivet
10ar	293150265	Rivet Ornit 6,5 X 12.5
10as	293150266	Ornit Rivet 6,5 X 14.5
10at	293150267	Rivet Ornit 6,5 X 16.5
10b2	250300027	Clinch Stud M6 X 20
10c	518330738	Deep Black, RH Footrest Reinforcement
10g	518331523	Deep Black, LH Footrest Reinforcement
10h	518332921	RH Footrest
10j	518332306	LH Footrest
10q	518334389	RH Rear Suspension Support This part replaces 518334389.
10r	518332310	LH Rear Suspension Arm Anchorange This part replaces 518334413.
10s	518334507	Stirrup Reinforcement
10t	518332924	Deep Black, LH Chassis Reinforcement
10u	518331744	LH Under Chassis Reinforcement
10v	518331745	RH Under Chassis Reinforcement
10w	518329023	RH Roller
10x	518332307	LH Exterior Footrest Reinforcement
10y	518334488	Radiator Tunnel 137 Ass'y
20	293730052	Black, Plug
50	518331823	Heat Shield
55	293450275	Insert
60	250000717	Torx Head Screw M6 X 16
170	293450267	Insert M5 - 0.8
230	207562056	Hex. Flange Screw M6 X 20
425	207663546	Hex. Flange Screw M6 x 35
430	233261416	Elastic Flange Nut M6 X 1.0
1300b	520001837	LH Cap
1300c	520001841	Cap
1510	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip
1520	224061201	Flat Washer
1700	518329982	Front Protector
1710	293150108	Pop Rivet 3/16” This part replaces 293150108.
1800	518329979	Rear Protector
1820	518333936	Central Protective Structure
1830	250001131	Torx Truss PT K40 x 12
1840	293150108	Pop Rivet 3/16” This part replaces 293150108.
3000	518334924	LH Front Stirup
3010	518329134	Toe Hold
3020	250000793	Hex. Flange Screw M6 X 25
3030	207562054	Hex. Flange Screw S.Grip M6 X 20
