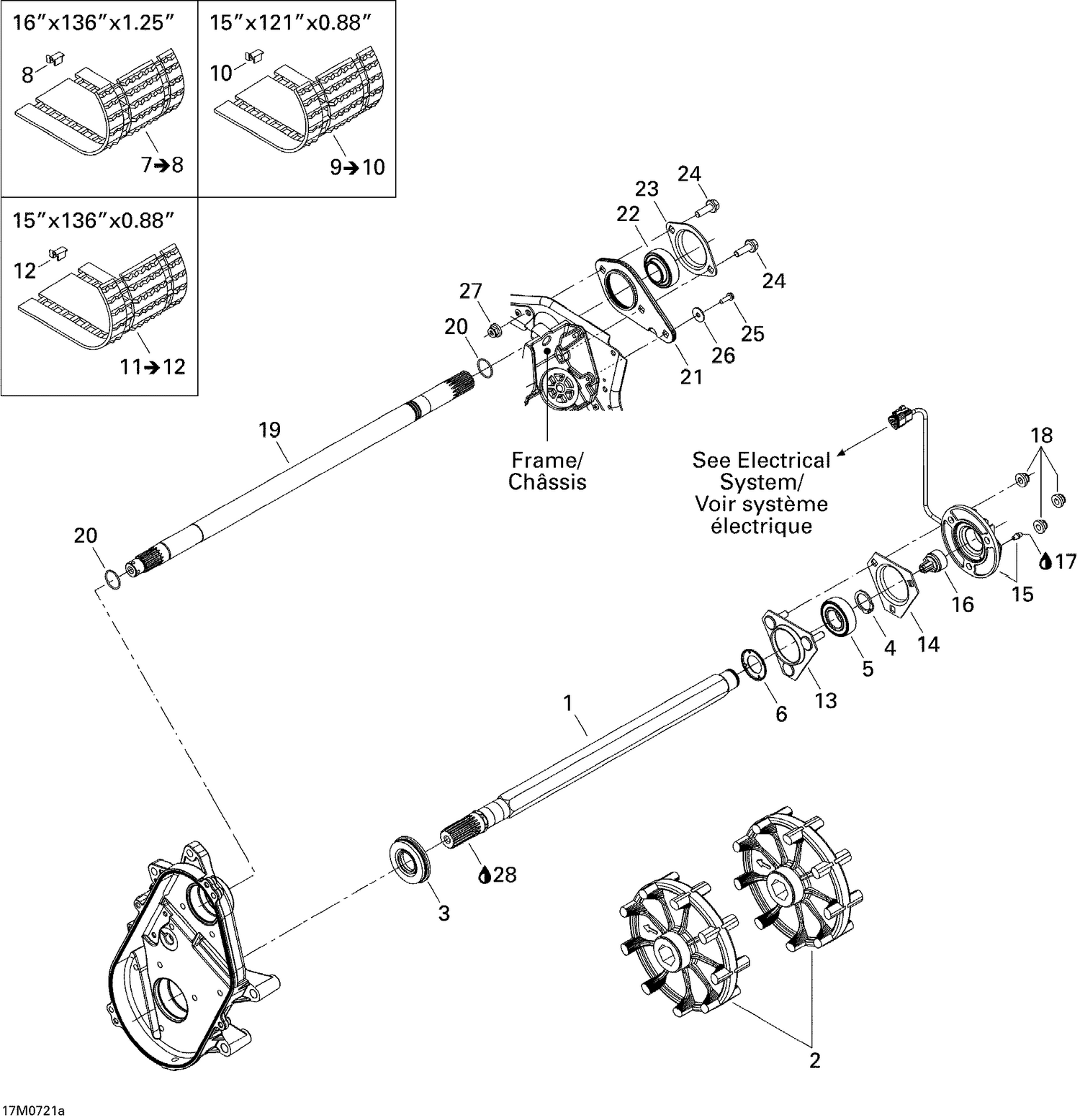

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151918 |
Oil Seal Ass'y |
| 4 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 5 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 13 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 14 |
501025000 |
FLANGE - Call your local BRP dealership |
| 15 |
504152345 |
Rotation Sensor |
| 16 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 17 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 19 |
504152292 |
COUNTER SHAFT - Call your local BRP dealership |
| 20 |
371910000 |
Circlip |
| 21 |
504151968 |
SPACER - Call your local BRP dealership |
| 22 |
415129555 |
Ball Bearing Kit This part replaces 504152535. |
| 23 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 24 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 25 |
207551634 |
Hex. Flange Screw, Scotch Grip This part replaces 207551644. |
| 26 |
224061201 |
Flat Washer |
| 27 |
233281414 |
Hex. Flange Elastic Nut M8 |
