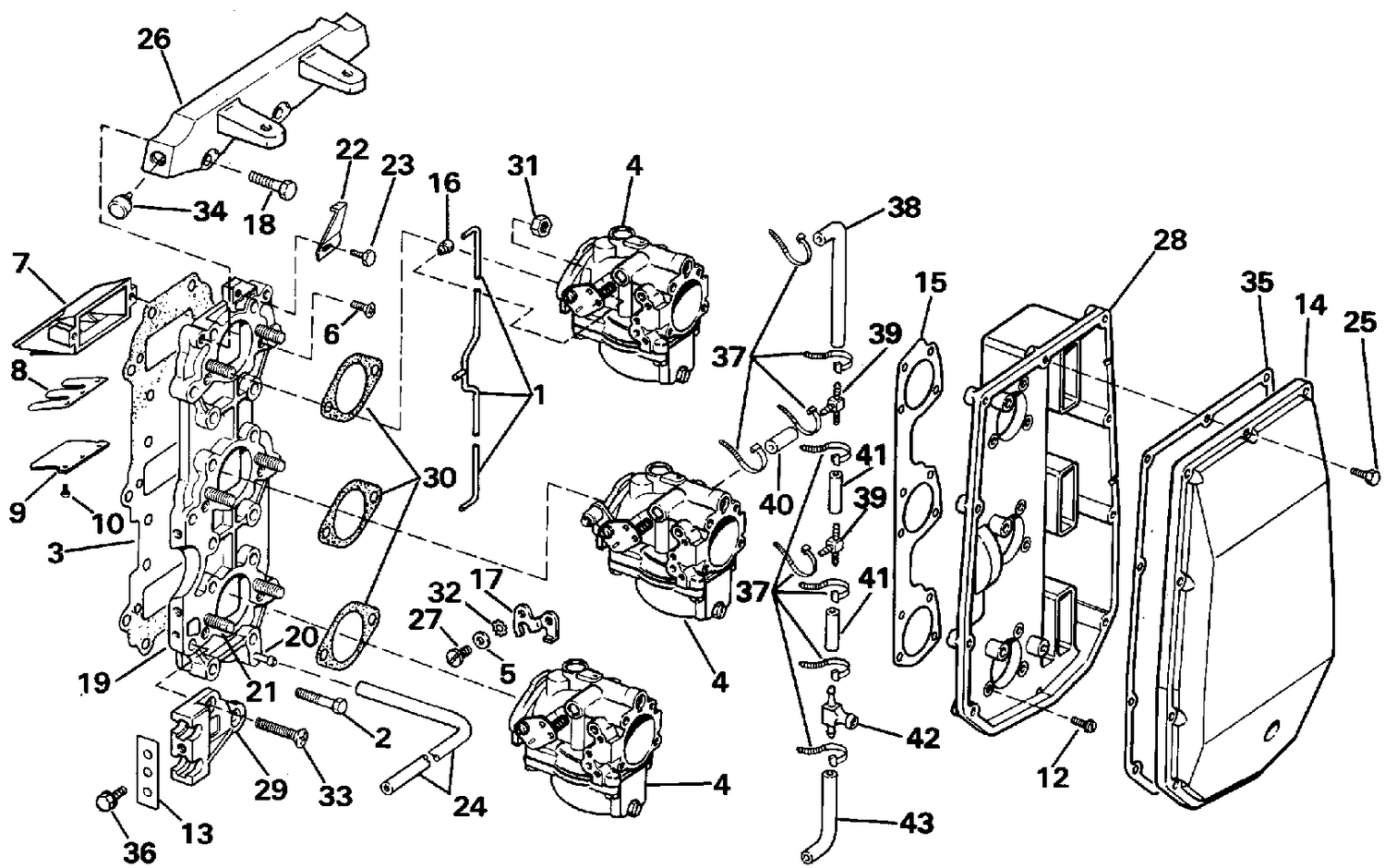

| Ref | Part Number | Description |
|---|
| 1 |
0432271 |
LINK & PIN, Middle arm |
| 2 |
0554306 |
SCREW, Cyl. to crankcase |
| 3 |
0326926 |
GASKET, Plat to manifold |
| 4 |
CARBURETOR |
ASSEMBLIES |
| 6 |
0316116 |
SCREW |
| 7 |
0389731 |
LEAF PLATE ASSEMBLY This part replaces 0389553. |
| 9 |
0434688 |
DECAL SET, Jo., 8 Sail |
| 14 |
0388264 |
COVER, Air silencer |
| 15 |
0333008 |
GASKET, Air silencer |
| 16 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 17 |
0329418 |
LEVER, Synchronization adj. |
| 18 |
0303398 |
VIS, support |
| 19 |
0389395 |
MANIFOLD, Intake |
| 22 |
0332682 |
TIMING POINTER |
| 26 |
0330509 |
MOUNTING BRACKET |
| 27 |
0306014 |
VIS, ancrage |
| 28 |
0333009 |
BASE ASSEMBLY |
| 29 |
0332683 |
ANCHOR BLOCK |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 33 |
0324315 |
SCREW, Anchor block |
| 34 |
0314021 |
BUMBER, Exhaust manifold |
| 35 |
0321794 |
GASKET, Air silencer cover |
| 37 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 38 |
HOSE, |
Tee to upper carb., 5 in. (127mm) |
| 40 |
HOSE, |
Tee to middle carb., 1 5/8 in. (41mm) |
| 41 |
HOSE, |
Tee to tee, 1 1/4 in. (32mm) |
| 42 |
0326031 |
TEE, Carburetor hose |
