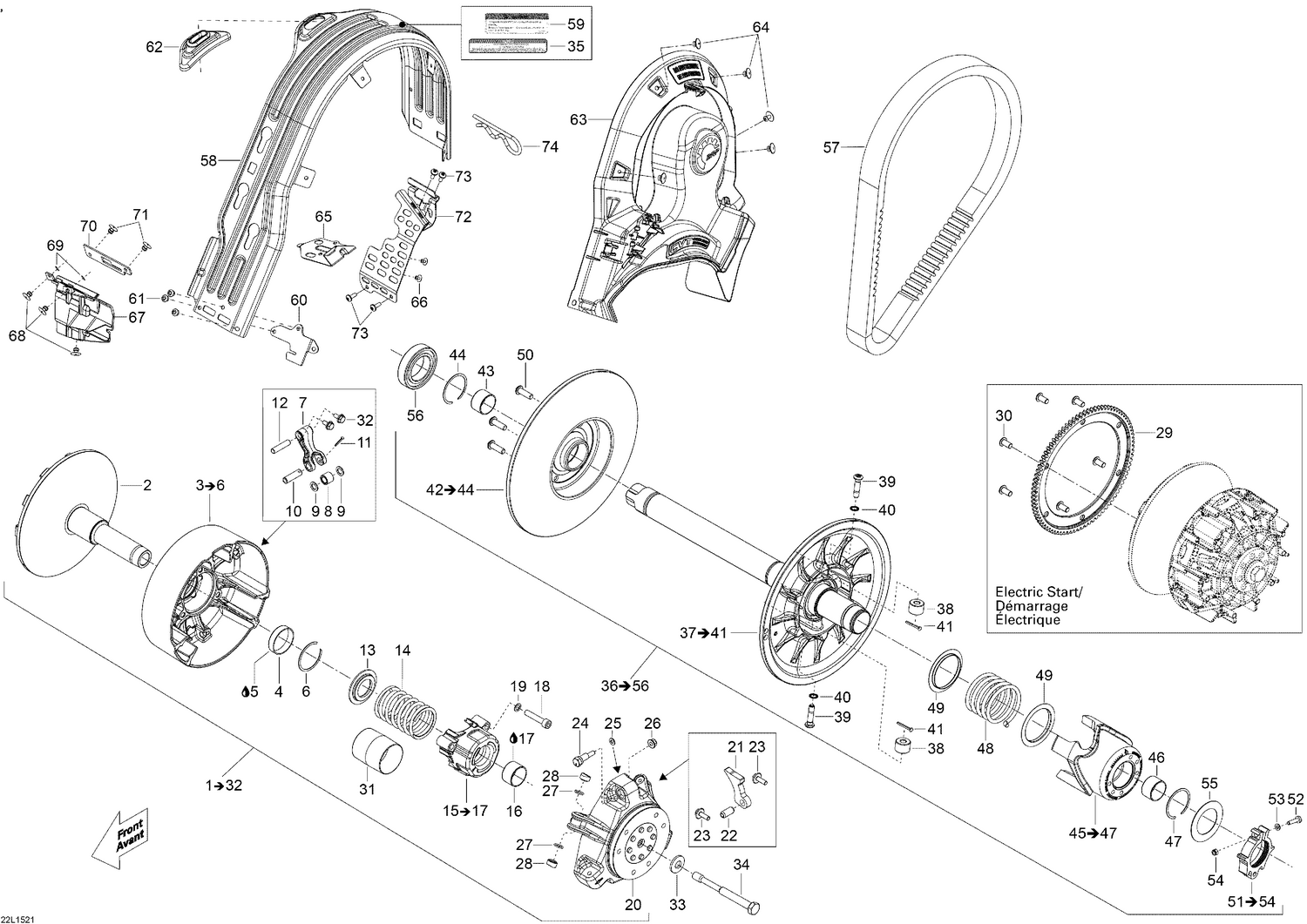

05- Pulley System
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222937 | Fixed Flange Ass'y |
| 4 | 417222758 | Bushing Outer Half |
| 5 | 619600012 | Loctite 609, 50ml |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever Ass´y |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417004308 | Pin |
| 11 | 250400060 | Cotter Pin |
| 12 | 417223164 | Lever Axle |
| 13 | 417222312 | Spring Seat |
| 14 | 414817700 | Spring (Blue / Green, 579-1157N) |
| 16 | 417009204 | Bushing |
| 17 | 619600012 | Loctite 609, 50ml |
| 18 | 205084044 | Socket Head Screw M8 x 40 |
| 19 | 250200009 | Lock Washer 8mm |
| 20 | 417223669 | Governor Cup |
| 21 | 417222515 | Ramp 412 |
| 22 | 250400050 | Spring Pin M10 x 22 |
| 23 | 250000418 | Hex. Flange Screw M6 x 18, Scotch Grip |
| 24 | 417223501 | Calibration Screw |
| 25 | 417005600 | Washer |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 732401030 | O Ring |
| 28 | 417222992 | Slider Shoe |
| 29 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 30 | 250000533 | Hex. Flange Screw M8 x 16, Scotch Grip |
| 31 | 417009205 | Guard |
| 32 | 250000412 | Hex. Flange Screw M6 x 12, Scotch Grip |
| 33 | 250200144 | Conical Spring Washer M14 |
| 34 | 417120000 | Drive Pulley Bolt |
| 35 | 516005503 | Drive Pulley Bolt Notice Decal |
| 38 | 417127016 | Roller |
| 39 | 417127294 | Stud |
| 40 | 250200009 | Lock Washer 8mm |
| 41 | 250400063 | Spring Pin M3 x 30 |
| 43 | 417127318 | Bushing |
| 44 | 293370049 | Spacer (1.91/2.21mm) |
| 46 | 417127318 | Bushing |
| 47 | 293370049 | Spacer (1.91/2.21mm) |
| 48 | 417127137 | Spring (Green, 800 / 1350N) |
| 49 | 417127116 | Swivel Abutment |
| 50 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr This part replaces 250000707. |
| 52 | 205052544 | Socket Head Screw M10 x 1.5 |
| 53 | 234051410 | Flat Washer M5 |
| 54 | 232551414 | Elastic Stop Nut M5 |
| 55 | 417127155 | Washer |
| 56 | 504152574 | Ball Bearing |
| 57 | 417300551 | Drive Belt This part replaces 417300383. |
| 58 | 417300357 | Belt Guard |
| 59 | 516006900 | Belt Guard Security Label |
| 60 | 417300423 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Guide |
| 63 | 417300441 | CVT Air Duct |
| 64 | 293150103 | Pop Rivet 3/16 |
| 65 | 417300445 | Stopper |
| 66 | 390909200 | Avex Rivet |
| 67 | 417300430 | Front Support |
| 68 | 293150104 | Pop Rivet 3/16 |
| 69 | 517225900 | Flat Washer |
| 70 | 417300421 | Reinforcement |
| 71 | 390909100 | Avex Rivet |
| 72 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 73 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
