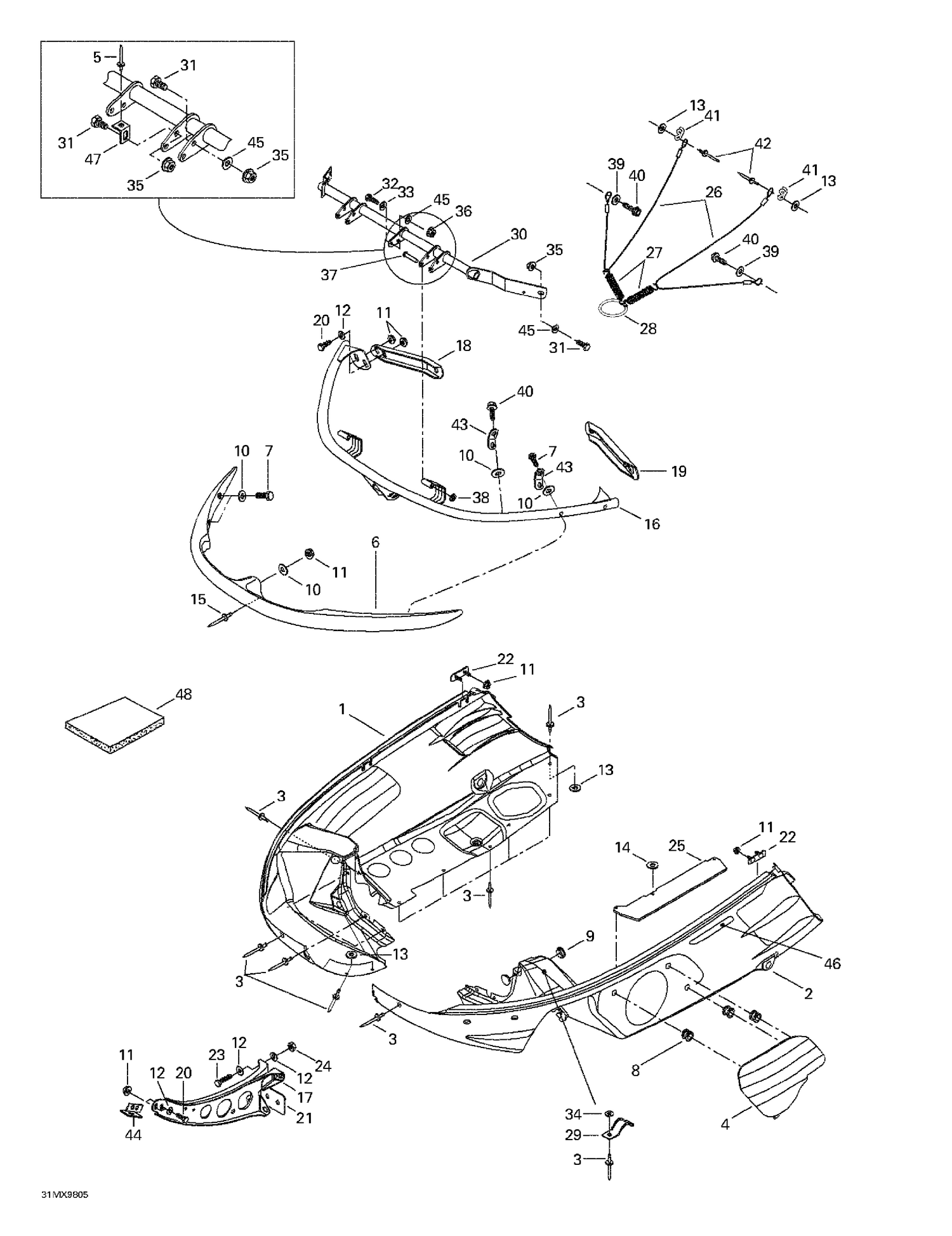

09- Bottom Pan
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572087002 | RH Bottom Pan (Velvet Blue) (1788) |
| 2 | 572087102 | LH Bottom Pan (Velvet Blue) (1788) |
| 3 | 293150104 | Pop Rivet 3/16" This part replaces 390910600. |
| 4 | 572098502 | Bottom Pan Door (Velvet Blue) (1788) |
| 5 | 390910800 | Rivet |
| 6 | 572087200 | Deep Black, Front Bumper |
| 7 | 207063044 | Hex. Screw M6 X 30 This part replaces 222063065. |
| 8 | 414036300 | Grommet |
| 9 | 414916600 | Black, Nylon Cap |
| 10 | 224061201 | Flat Washer |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 12 | 224061121 | Flat Washer |
| 13 | 517124300 | Washer |
| 14 | 517225900 | Flat Washer |
| 15 | 390906800 | Pop Rivet 3/16" |
| 16 | 517288200 | Hinge Bracket |
| 17 | 517288300 | Center Support |
| 18 | 517288400 | RH Support |
| 19 | 517288500 | LH Support |
| 20 | 207162044 | Hex. Screw M6 X 20 This part replaces 222062065. |
| 21 | 517288600 | Plate |
| 22 | 517294300 | Bracket |
| 23 | Not | Available As Spare Part - Hex. Screw M6 x 60 |
| 24 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 25 | 517299500 | Protector |
| 26 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 27 | 414185600 | Spring |
| 28 | 415058300 | RING - Call your local BRP dealership |
| 29 | 517274400 | Bracket |
| 30 | 517289200 | Hinge |
| 31 | 207151644 | Hex. Screw M5 X 16 This part replaces 222051665. |
| 32 | 222041665 | SCREW-HEX.CAP DIN.933 - Call your local BRP dealership |
| 33 | 391301000 | WASHER - Call your local BRP dealership |
| 34 | Not | Available As Spare Part - Washer |
| 35 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 36 | 232541484 | Elastic Stop Nut M4 This part replaces 228741045. |
| 37 | 390004800 | RIVET-STEEL SOLID - Call your local BRP dealership |
| 38 | 389804300 | Push Nut |
| 39 | 391301600 | Washer |
| 40 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 41 | 517262800 | Bracket |
| 42 | 390406500 | Pop Rivet 3/16" |
| 43 | 514051000 | Spring Bracket |
| 44 | 517302009 | Front Support |
| 45 | 420845330 | WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 46 | 415064400 | Decal - RH Reflector |
| 47 | 517302014 | Reinforcement |
| 48 | 414632400 | Acoustic Foam |
| 415064401 | Décalque | De Réflecteur GA 415064401 |
