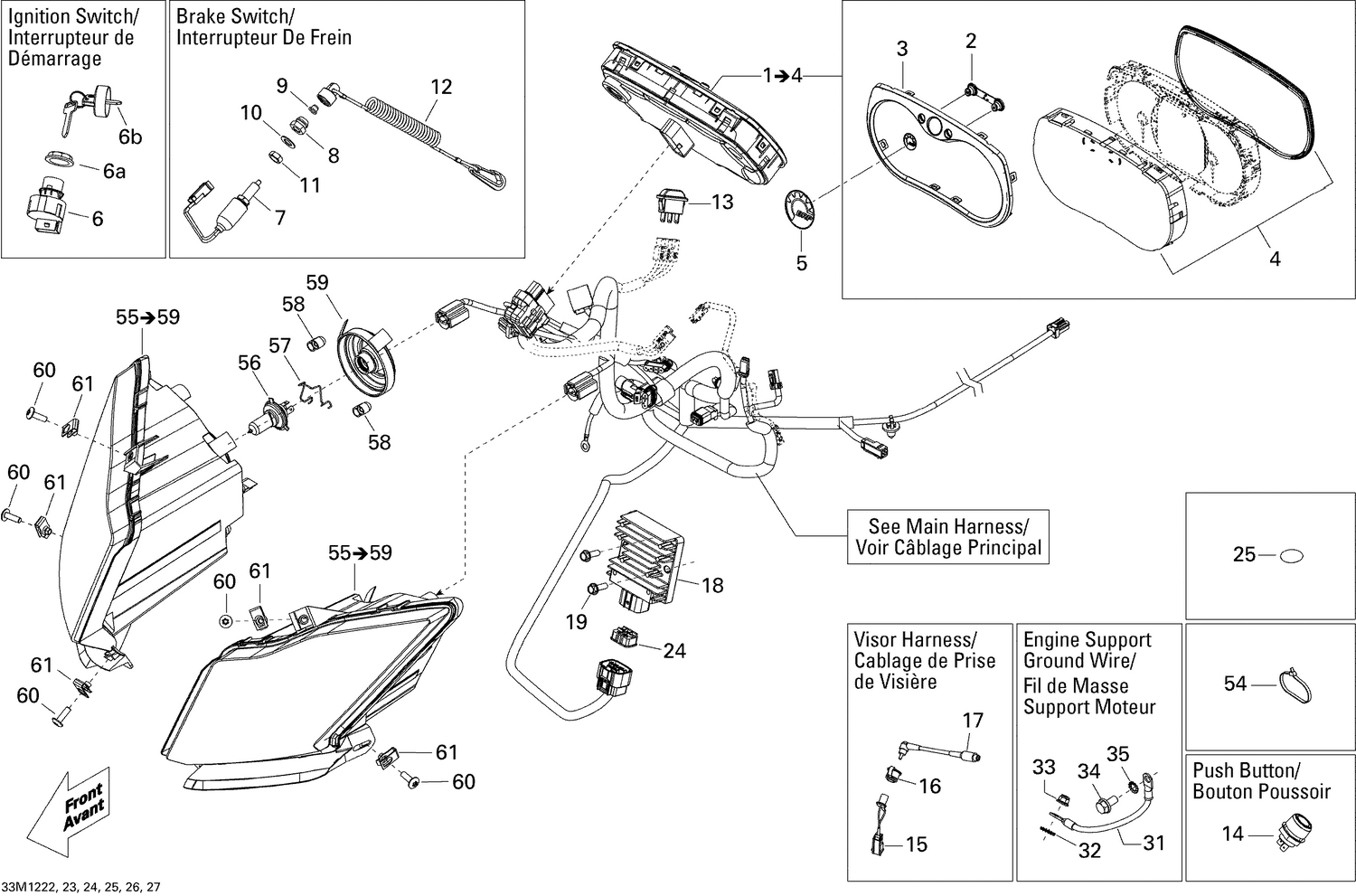

| Ref | Part Number | Description |
|---|
| 1 |
515177279 |
Indicator This part replaces 515176992. |
| 2 |
Not |
Available As Spare Part - Speedometer Button |
| 3 |
415129348 |
Gauge Ring This part replaces 415129491. |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6a |
Not |
Available As Spare Part - Mounting Nut |
| 6b |
Not |
Available As Spare Part - Ingnition Key |
| 7 |
515175653 |
Brake Switch |
| 8 |
515145900 |
Switch Nut |
| 9 |
570151100 |
Plunger Cap |
| 10 |
250200084 |
Flat Washer |
| 11 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 12 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
515176699 |
Voltage Regulator |
| 19 |
210262040 |
Hex. Flange Screw M6 X 20 |
| 24 |
515176681 |
Lock |
| 25 |
518325560 |
Adhesive Patch |
| 31 |
515176745 |
Ground Wire |
| 32 |
250200041 |
Lock Washer Serrated M6 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 35 |
234481608 |
Serrated Lock Washer 8 mm |
| 54 |
293750001 |
Tie Wrap 94 mm |
| 54 |
293750002 |
Tie Wrap 142 mm |
| 54 |
293750008 |
Tie Wrap 368 mm |
| 54 |
293750009 |
Tie-Rap 173 mm |
| 54 |
414115200 |
Tie-Rap 180 mm |
| 56 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 57 |
515176493 |
BULB HOLDER - Call your local BRP dealership |
| 58 |
515176498 |
Cap |
| 59 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 60 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
