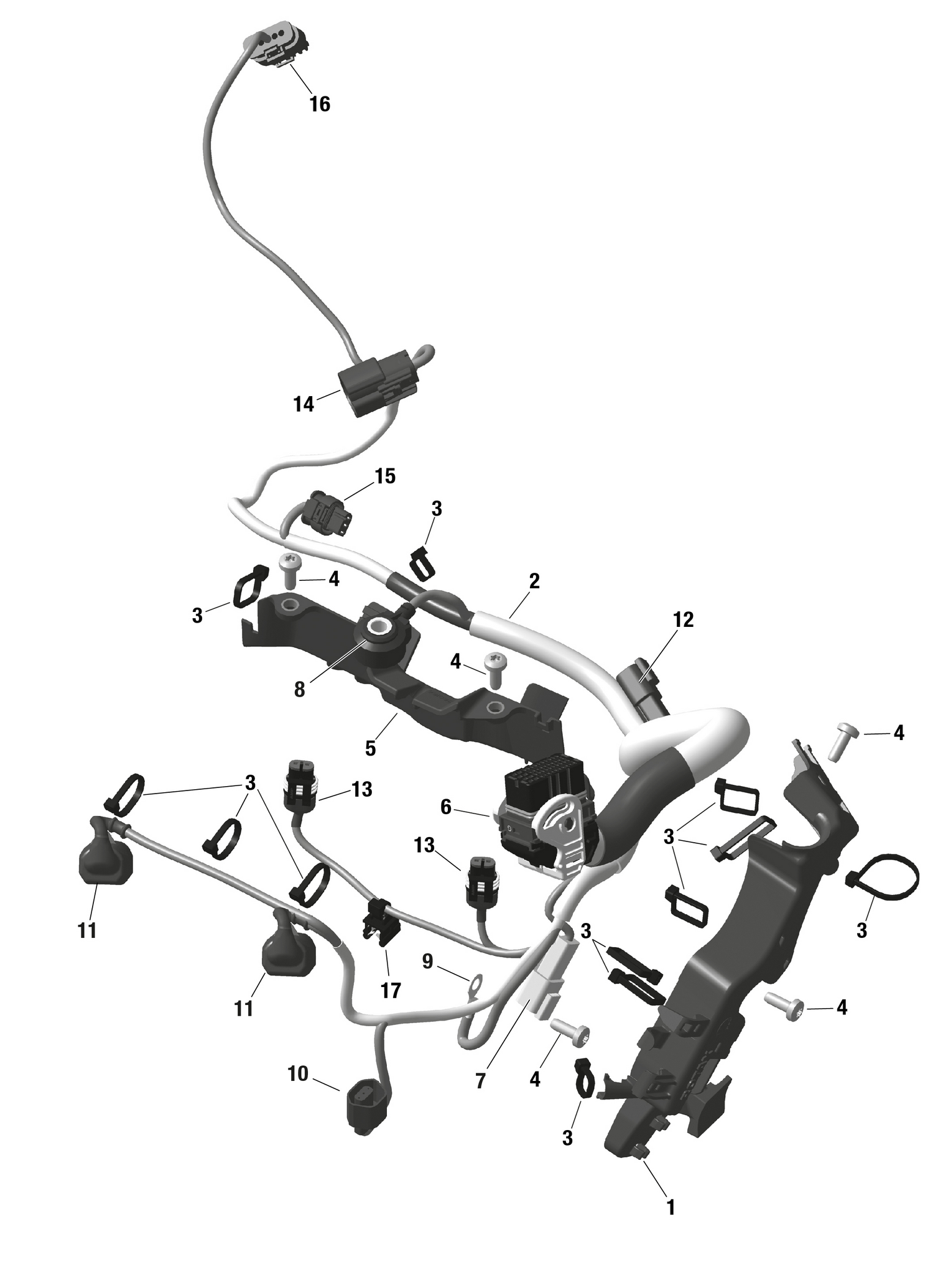

| Ref | Part Number | Description |
|---|
| 1 |
420260164 |
Harness Support |
| 3 |
420651817 |
Locking Tie 175 X 4 MM |
| 4 |
420640324 |
Torx Screw M6 X 16 |
| 5 |
420260166 |
Harness Support |
| 6 |
XXX |
Not Available As Spare Parts |
| 7 |
0912152 |
HOSE, Control valve to adapter |
| 7 |
409206900 |
Male Housing, 2 Circuits |
| 8 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 8 |
278001005 |
Female Housing, 2 Circuits |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
0330365 |
FLEXIBLE, indicateur d'éjection |
| 10 |
415130195 |
Connector |
| 11 |
0334740 |
HOSE, Control valve to aspirator |
| 11 |
515176129 |
Female Housing |
| 12 |
0331933 |
HOSE, Adapter to control valve |
| 12 |
409206900 |
Male Housing, 2 Circuits |
| 13 |
409209500 |
Female Housing, 2 Circuits |
| 14 |
515178202 |
Connector Coil |
| 15 |
0912064 |
SLEEVE, Oil cooler |
| 15 |
710007787 |
Female Connector 3 Circuits |
| 16 |
0912000 |
ELBOW, Oil cooler |
| 16 |
710007787 |
Female Connector 3 Circuits |
| 22 |
0985523 |
HOSE ASSEMBLY, Return |
| 23 |
0985524 |
HOSE ASSEMBLY, Pressure |
| 24 |
0912226 |
GROMMET, Return tube |
| 26 |
0325115 |
SCREW, Oil tank/EMM mount |
| 30 |
0394407 |
CONTROL VALVE |
| 31 |
0986534 |
CHECK VALVE, Aspirator |
| 33 |
0913436 |
TEE, Adapter |
| 35 |
0914460 |
ASPIRATOR |
| 36 |
0331215 |
HORSE, Elbow to tee This part replaces 0321890. |
| 38 |
0913438 |
HOSE, 30 (DEGREE) Tee to check valve |
| 39 |
0913439 |
HOSE, Aspirator |
| 40 |
0122220 |
SEAL |
| 41 |
0317936 |
WASHER |
