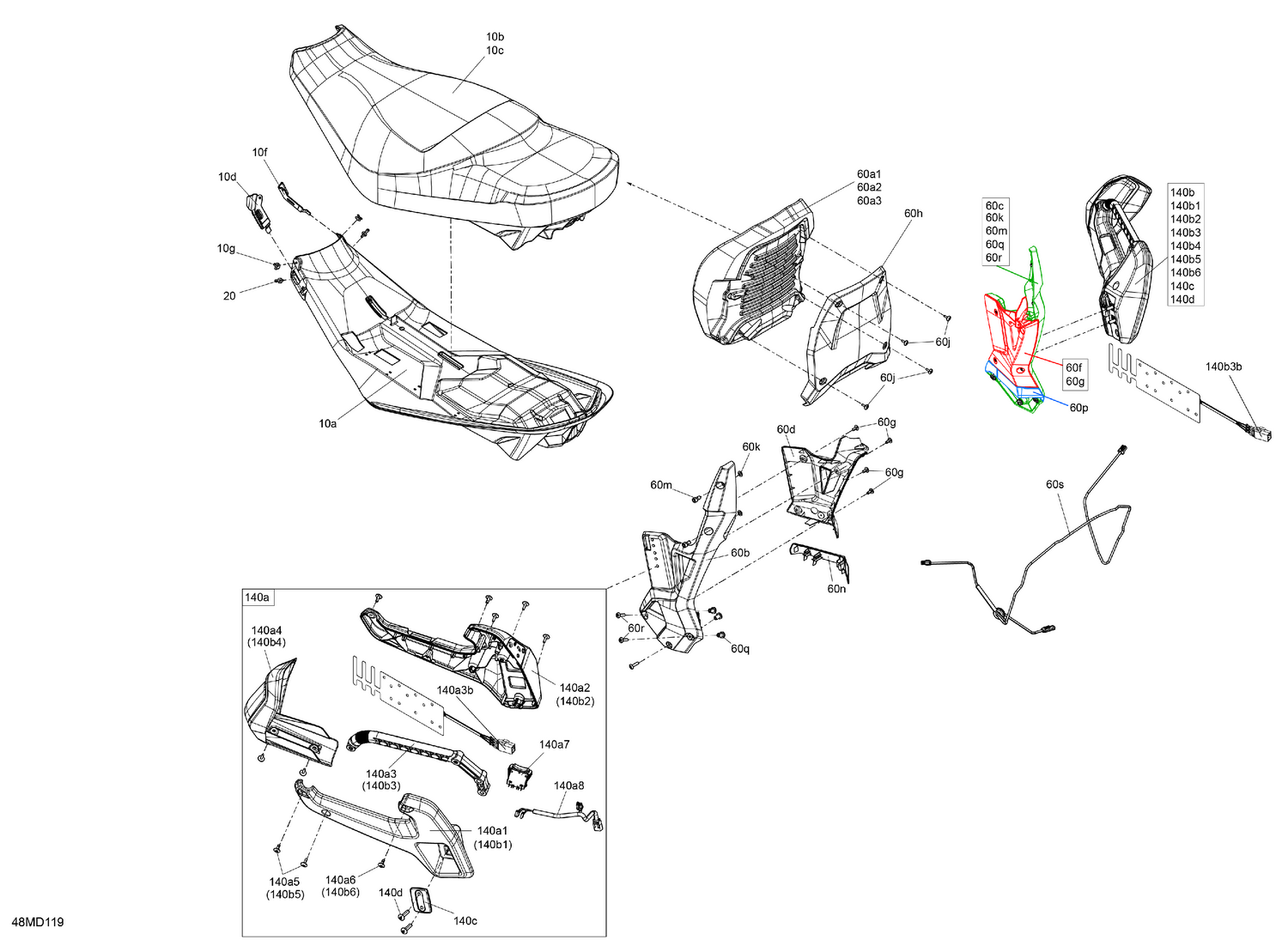

07- Body - Seat
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 510006336 | Seat Foam |
| 10c | 510007547 | Seat Cover |
| 10d | 510006530 | LH Seat Latch |
| 10f | 510006531 | RH Seat Latch |
| 10g | 293150222 | Pop Rivet 3/16" |
| 20 | 510007411 | Seat Pin |
| 60a1 | 510006363 | Backrest Foam |
| 60a2 | 510007550 | Backrest Cover |
| 60a3 | 510006777 | Backrest Support |
| 60d | 510006706 | LH Trim |
| 60f | 510006705 | RH Trim |
| 60g | 250000789 | Torx Truss M6X14 |
| 60h | 510006366 | Backrest Trim |
| 60j | 250000889 | Screw M4 X 16 |
| 60k | 234080600 | Flat Washer M8, Stainless |
| 60m | 205081654 | Screw-Socket HD.DIN.912 |
| 60n | 510006169 | LH Base Cover |
| 60p | 510006170 | RH Base Cover |
| 60q | 511000822 | Threaded Insert |
| 60r | 250001000 | Torx-Truss M/S M6 X 25 |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | 510006527 | LH Int. Passenger Hand Hold |
| 140a3b | 515178576 | Heated Element |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a8 | 515178464 | Heated Grip Wiring Harness |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3b | 515178576 | Heated Element |
| 140b4 | 510006489 | RH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
