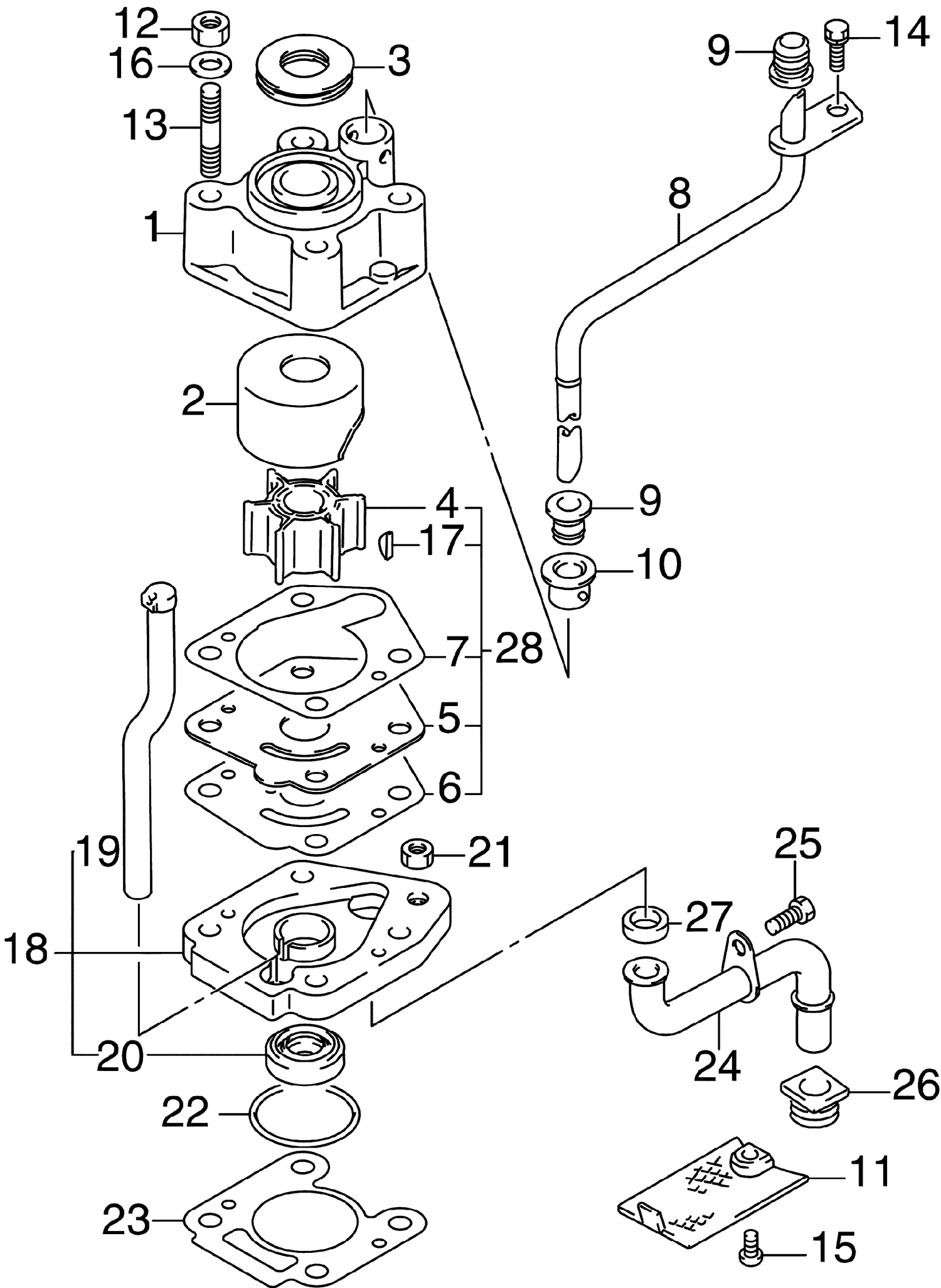

| Ref | Part Number | Description |
|---|
| 1 |
5037539 |
CARTER, POMPE À EAU |
| 2 |
5037540 |
MANCHON, carter de pompe à eau |
| 3 |
5033108 |
BAGUE, CARTER DE POMPE |
| 4 |
5033112 |
IMPELLER, WATER PUMP |
| 5 |
5033114 |
PANEL, PUMP CASE UNDER |
| 6 |
5035603 |
GASKET, PUMP CASE PANEL |
| 7 |
5037541 |
GASKET, Water pump case |
| 8 |
5033117 |
TUBE À EAU, 20" |
| 8 |
5033118 |
TUBE À EAU, 15" |
| 9 |
5035606 |
BAGUE, TUBE À EAU |
| 10 |
5033120 |
BUSHING, WATER PUMP CASE |
| 11 |
5033121 |
FILTER, WATER |
| 13 |
5037542 |
BOLT (8X55mm) |
| 15 |
5030409 |
SCREW |
| 17 |
5033113 |
CLÉ |
| 18 |
5037543 |
CARTER, ENTRÉE D'EAU |
| 22 |
5037544 |
JOINT TORIQUE, carter d’entrée d’eau |
| 24 |
5033116 |
TUBE, WATER INLET |
| 25 |
5032758 |
BOLT (6X9mm) |
| 26 |
5035610 |
GROMMET |
| 27 |
5035611 |
GROMMET |
